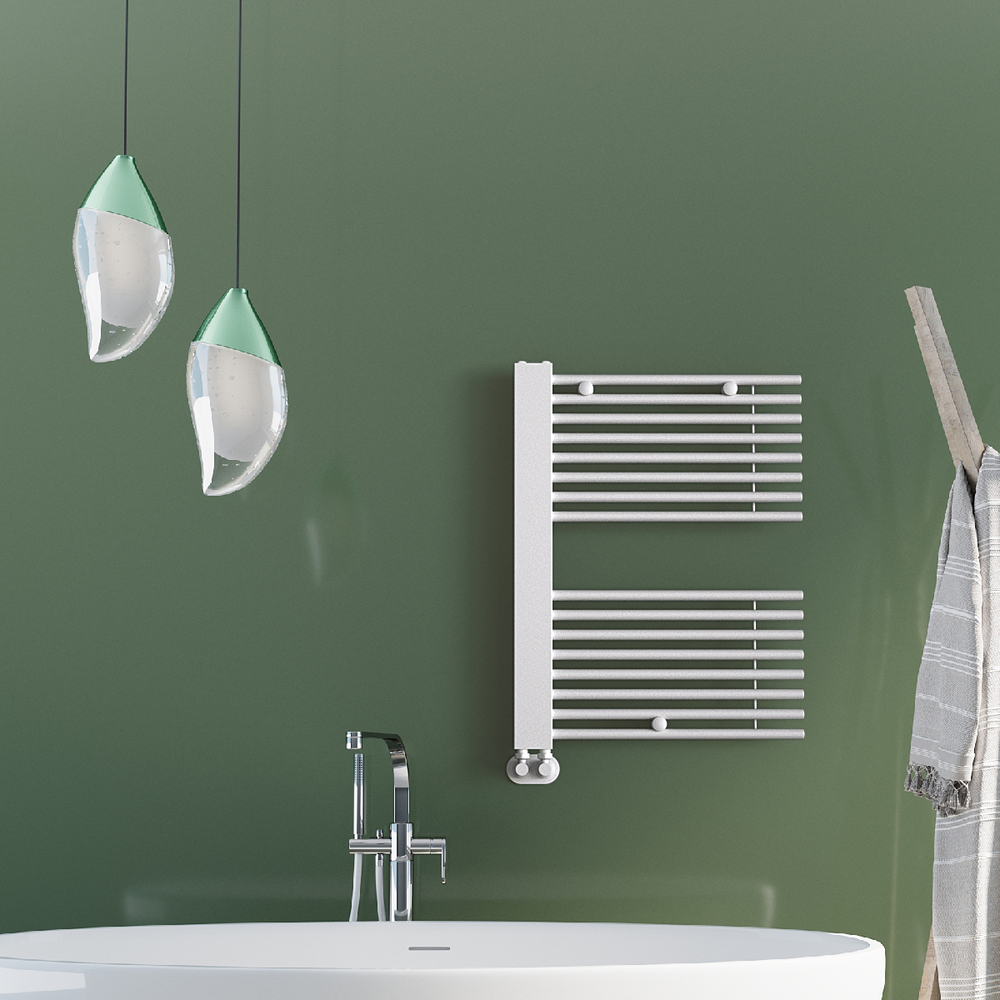

Male Decorative Towel Warmer 600x800 White

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Male

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 600 mm

• Height = 800 mm

• Color/Coating = Matt White

• Tapping Distance = 50 mm

• Maximum Working Pressure = 3 bar

• Wall to Center of Inlet = 55-75 mm

• Wall Projection Distance = 75-95 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 5,7 lt

• Weight = 8,6 kg

• Boxed Weight = 9,8 kg

• Box Size = 62x82x6 cm

• Wall Mount Set Type = Plastik

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 430 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 542 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 221 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 500 Watt

• Heat Output 90/70-20° ?t=60°C = 630 Watt

• Heat Output 55/45-20° ?t=30°C = 256 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1706 Btu

• Heat Output 90/70-20° ?t=60°C = 2150 Btu

• Heat Output 55/45-20° ?t=30°C = 874 Btu
