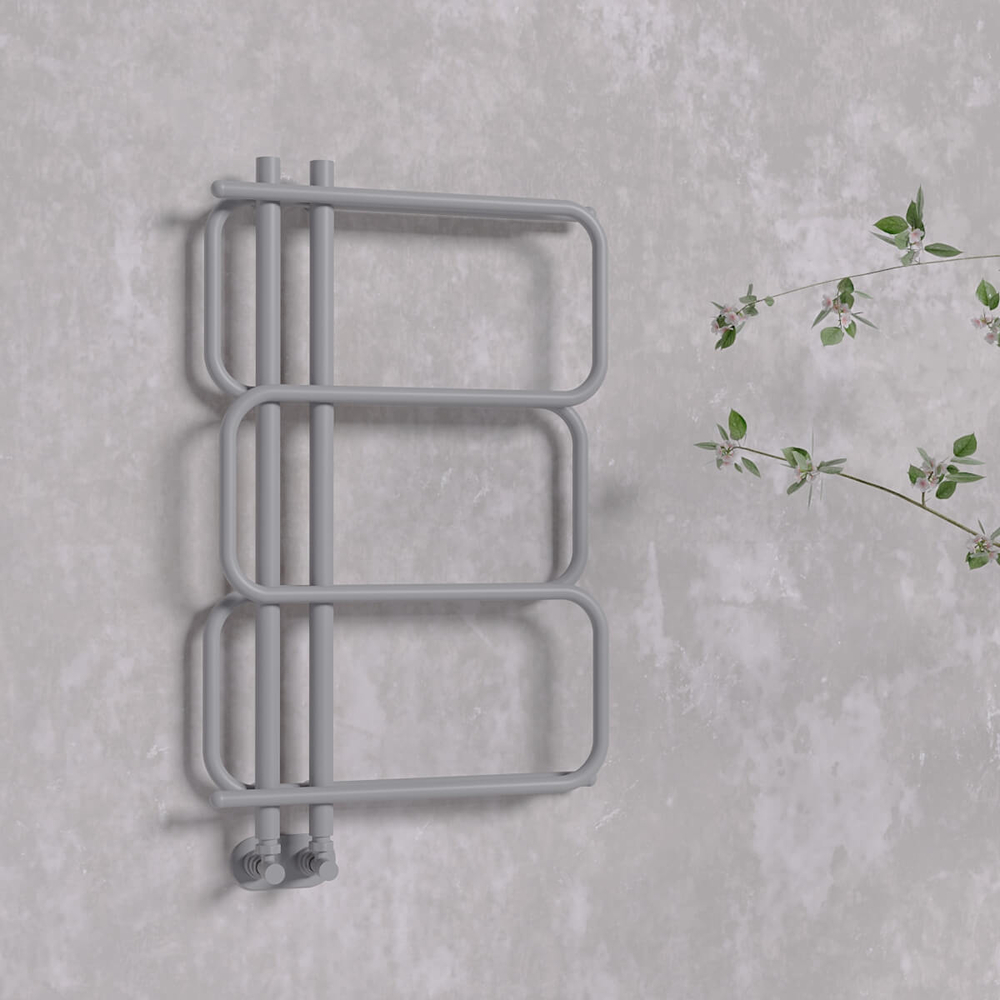

Matsu Decorative Towel Warmer 540x884 Anthracite

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Matsu

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 540 mm

• Height = 884 mm

• Color/Coating = Anthracite

• Tapping Distance = 72 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 90 mm

• Wall Projection Distance = 128 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 3,2 lt

• Weight = 6,1 kg

• Boxed Weight = 7,8 kg

• Box Size = 56x91x9,5 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 266 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 336 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 137 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 309 Watt

• Heat Output 90/70-20° ?t=60°C = 390 Watt

• Heat Output 55/45-20° ?t=30°C = 159 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1055 Btu

• Heat Output 90/70-20° ?t=60°C = 1330 Btu

• Heat Output 55/45-20° ?t=30°C = 541 Btu
