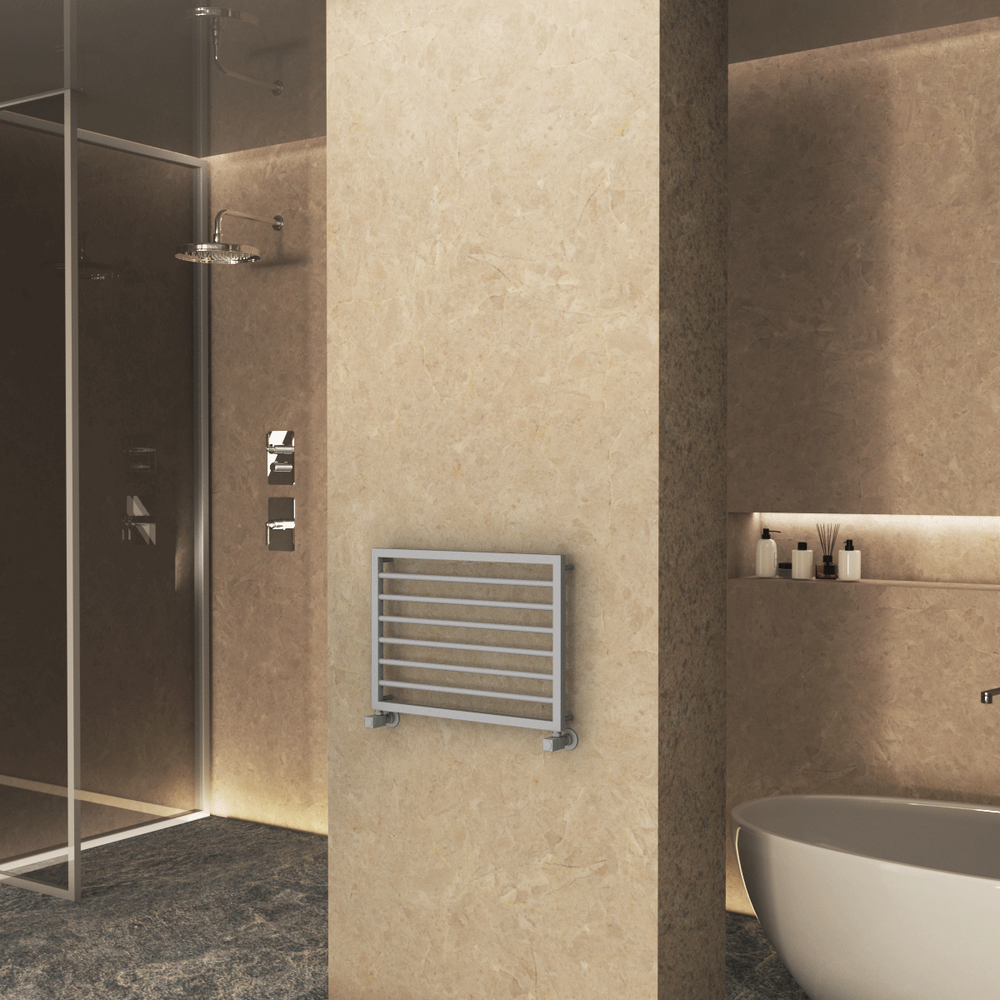

Naxos Decorative Towel Warmer 800x578 Grey 7012

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Naxos

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 800 mm

• Height = 578 mm

• Color/Coating = Grey

• Tapping Distance = 770 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 65 mm

• Wall Projection Distance = 80 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 2,9 lt

• Weight = 6,5 kg

• Boxed Weight = 7,1 kg

• Box Size = 85x63x7 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 323 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 407 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 166 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 375 Watt

• Heat Output 90/70-20° ?t=60°C = 473 Watt

• Heat Output 55/45-20° ?t=30°C = 192 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1280 Btu

• Heat Output 90/70-20° ?t=60°C = 1613 Btu

• Heat Output 55/45-20° ?t=30°C = 656 Btu
