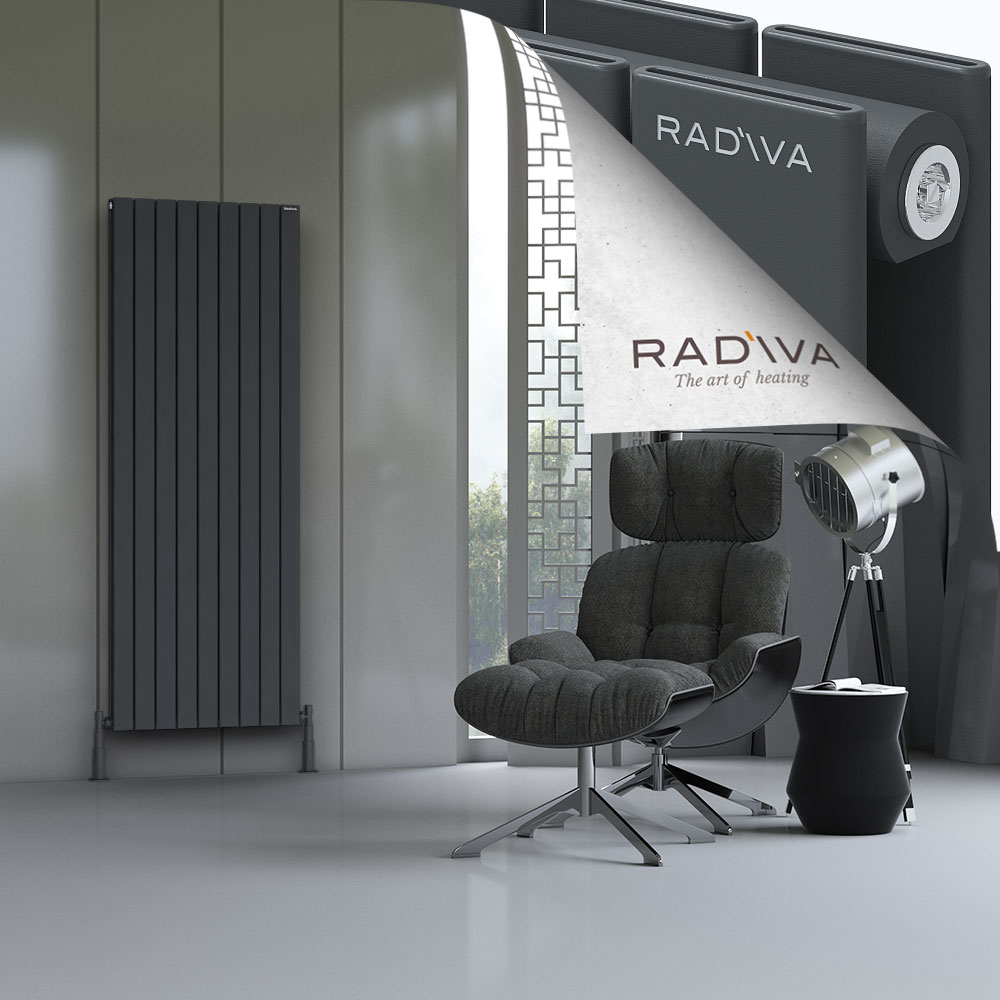

Oti Aluminium Radiator 1800x662 Dark Anthracite

TECHNICAL INFORMATION

• Model = Oti

• Material = Aluminium

• Height = 1800 mm

• Width = 662 mm

• Color / Coating = Dark Anthracite (Contact Your Sales Representative for Special Color Requests, Chrome Covers are Used in Special Color Aluminium Radiators)

• Paint Surface = Texture

• Number of Sections = 9 Pieces

• Total Number of Profiles (Front + Back) = 9+9 Pieces

• Profile Dimension = 70x11 mm

• Maximum Working Pressure = 10 bar

• Radiator Depth = 60 mm

• Wall to Center of Inlet = 65 mm

• Wall Projection Distance = 96,5 mm

• Radiator Thread Dimension = 1/2"

• Water Volume = 3,6 lt

• Weight = 27,12012 kg

• Boxed Weight = 28,62012 kg

• Box Size = 186x73x9 cm

Tapping Options

Choose Your Radiator Before Adding To Cart!

Tapping Distance stands for the distance between the Water Inlet and Outlet.

The compatibility of the radiator you plan to buy with your existing installation is very important.

For this reason, we manufacture our radiators with many Tapping options in order to adapt to all existing installation connection types in your country.

If your installation has not been done yet, choose "Standard Entry" in terms of delivery time!

Tapping Options Are Just Above The Product Price.


Click for Radiator Installation Guide!



When you choose the Standard Input Option while adding your Aluminum Radiator to the Basket, you can connect it to your installation with all the connection types listed below and the title of which is Standard Input (1-2-3-4-5-6).

You or your plumber (the plumbers are experienced in this field) should simply place the Water Diverter, which we have given to you free of charge in the box of your radiator, between the 1st and 2nd sections according to the Water Inlet Direction, according to your Standard Connection Type.

In the diagrams below, the Water Diverter is Shown as a Black SQUARE.

You do not need to apply any diverter in the assembly forms that you do not see a diverter in the diagram.

• Standard Entry1 = 752 mm  (Bottom Left Hot Water Inlet - Bottom Right Cold Water Outlet)



• Standard Entry2 = 752 mm (Bottom Right Hot Water Inlet - Bottom Left Cold Water Outlet)



• Standard Entry3 = 752 mm (Top Left Hot Water Inlet - Bottom Right Cold Water Outlet)

• Standard Entry4 = 752 mm (Top Right Hot Water Inlet - Bottom Left Cold Water Outlet)

• Standard Entry5 = 1750 mm (Top Left Hot Water Inlet - Bottom Left Cold Water Outlet)

• Standard Entry6 = 1750 mm (Top Right Hot Water Inlet - Bottom Right Cold Water Outlet)

• Bottom Middle Entrance = 50 mm ( Bottom Middle Side by Side Hot Water Inlet, Cold Water Outlet)

• Bottom Right Entrance = 50 mm ( Bottom Right Side by Side Hot Water Inlet, Cold Water Outlet)

• Bottom Left Entrance = 50 mm ( Bottom Left Side Side Hot Water Inlet, Cold Water Outlet)

Heat Output

Kcal/h


• Heat Output  75/65-20° ∆t=50°C = 1670 Kcal/h

• Heat Output  90/70-20° ∆t=60°C = 2104 Kcal/h

• Heat Output  55/45-20° ∆t=30°C = 855 Kcal/h


Watt

• Heat Output 75/65-20° ∆t=50°C = 1941 Watt

• Heat Output  90/70-20° ∆t=60°C = 2446 Watt

• Heat Output  55/45-20° ∆t=30°C = 994 Watt


Btu

• Heat Output  75/65-20° ∆t=50°C = 6624 Btu

• Heat Output  90/70-20° ∆t=60°C = 8346 Btu

• Heat Output  55/45-20° ∆t=30°C = 3393 Btu

ALUMINIUM RADIATOR WALL MOUNTING DIAGRAM

Aluminum Radiators are lighter than conventional panel radiators or steel decorative radiators and are easier to install on drywall surfaces.

Before making your plasterboard wall application, you need to prepare the drywall vertical profiles in suitable width for our radiators.

The Aluminum Radiator you are viewing now has a Height 1800 mm (represented by H in the Diagram), Width is 662 mm. (Represented by W in the diagram.)

Accordingly, the C value you will see in the diagram above is 487 mm and the E value is 1690 mm.
