%45 Discount

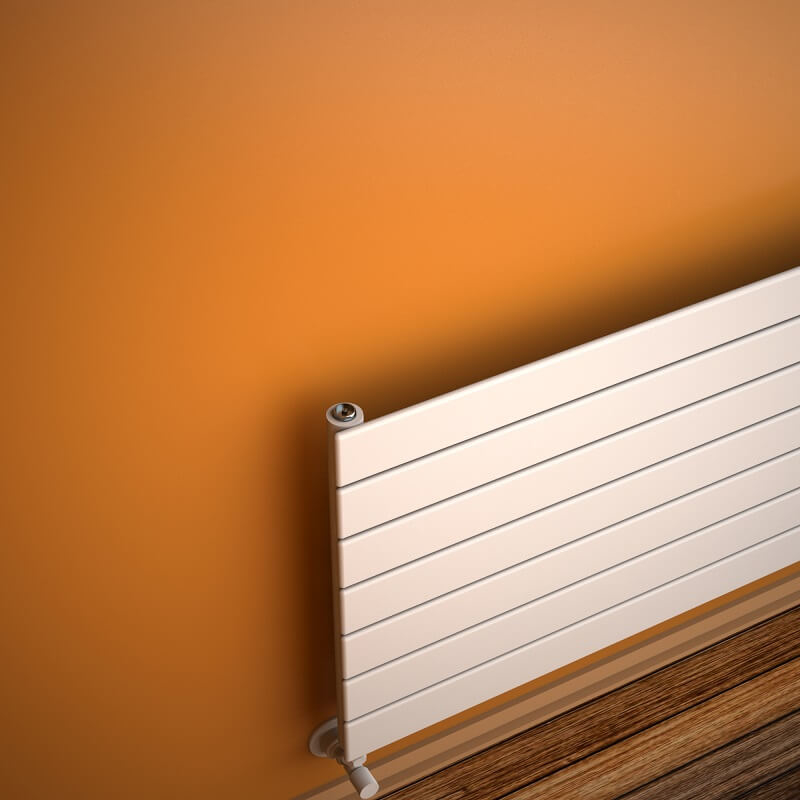

Type 10H Decorative Radiator 514x1500 White (Thin Radiator)

Name: Type 10H Decorative Radiator 514x1500 White (Thin Radiator)
SKU: 210H05141500B1PS
Price: 12415.92 TRY
Availability: InStock

Product Code : 210H05141500B1PS

Guarantee : 10 Year

TAXES Included

Price

22,574.40 TL

Discounted Price

12,415.92 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5866","59_0":"8611","58_0":"11356","57_0":"14101","56_0":"16846","55_0":"18106","54_0":"19366","53_0":"21103","52_0":"21439"},"variant_prices":{"60_0":10346.6,"59_0":11226.6,"58_0":11226.6,"57_0":11226.6,"56_0":11226.6,"55_0":11226.6,"54_0":11226.6,"53_0":11226.6,"52_0":11226.6},"variant_price_raws":{"60_0":10346.6,"59_0":11226.6,"58_0":11226.6,"57_0":11226.6,"56_0":11226.6,"55_0":11226.6,"54_0":11226.6,"53_0":11226.6,"52_0":11226.6},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"18812","59_0":"20412","58_0":"20412","57_0":"20412","56_0":"20412","55_0":"20412","54_0":"20412","53_0":"20412","52_0":"20412"},"variant_supplier_codes":{"60_0":"210H05141500B1PS","59_0":"210H05141500B1PM2","58_0":"210H05141500B1PM3","57_0":"210H05141500B1PM1","56_0":"210H05141500B1PY0","55_0":"210H05141500B1PC1","54_0":"210H05141500B1PC2","53_0":"210H05141500B1PR2","52_0":"210H05141500B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10H

• Material =Steel

• Height=514 mm

• Width=1500 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,1 lt

• Weight=17,9 kg

• Boxed Weight=20,52 kg

• Box Size=57x156x8,6 cm

TAPPING OPTIONS

• Standard Entry=1450 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1590mm

• Cross Up-Right / Down-Left=1590mm

• Cross Up-Left / Down-Right=1590mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 778 Kcal/h

• Heat Output 90/70-20° ?t=60°C=981Kcal/h

• Heat Output 55/45-20° ?t=30°C=399Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=904 Watt

• Heat Output 90/70-20°?t=60°C=1140 Watt

• Heat Output 55/45-20°?t=30°C=463 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3085 Btu

• Heat Output 90/70-20°?t=60°C=3888 Btu

• Heat Output 55/45-20°?t=30°C=1580 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5866","59_0":"8611","58_0":"11356","57_0":"14101","56_0":"16846","55_0":"18106","54_0":"19366","53_0":"21103","52_0":"21439"},"variant_prices":{"60_0":10346.6,"59_0":11226.6,"58_0":11226.6,"57_0":11226.6,"56_0":11226.6,"55_0":11226.6,"54_0":11226.6,"53_0":11226.6,"52_0":11226.6},"variant_price_raws":{"60_0":10346.6,"59_0":11226.6,"58_0":11226.6,"57_0":11226.6,"56_0":11226.6,"55_0":11226.6,"54_0":11226.6,"53_0":11226.6,"52_0":11226.6},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"18812","59_0":"20412","58_0":"20412","57_0":"20412","56_0":"20412","55_0":"20412","54_0":"20412","53_0":"20412","52_0":"20412"},"variant_supplier_codes":{"60_0":"210H05141500B1PS","59_0":"210H05141500B1PM2","58_0":"210H05141500B1PM3","57_0":"210H05141500B1PM1","56_0":"210H05141500B1PY0","55_0":"210H05141500B1PC1","54_0":"210H05141500B1PC2","53_0":"210H05141500B1PR2","52_0":"210H05141500B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 10H Decorative Radiator 514x1500 White (Thin Radiator) ∆t50°C=777 Kcal/h | ∆t60°C= 979 Kcal/h | 7 Pipes | Heats 5-15 m2

22,574.40 TL

12,415.92 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5867","59_0":"8612","58_0":"11357","57_0":"14102","56_0":"16847","55_0":"18107","54_0":"19367","53_0":"21104","52_0":"21440"},"variant_prices":{"60_0":12933.25,"59_0":13813.25,"58_0":13813.25,"57_0":13813.25,"56_0":13813.25,"55_0":13813.25,"54_0":13813.25,"53_0":13813.25,"52_0":13813.25},"variant_price_raws":{"60_0":12933.25,"59_0":13813.25,"58_0":13813.25,"57_0":13813.25,"56_0":13813.25,"55_0":13813.25,"54_0":13813.25,"53_0":13813.25,"52_0":13813.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"23515","59_0":"25115","58_0":"25115","57_0":"25115","56_0":"25115","55_0":"25115","54_0":"25115","53_0":"25115","52_0":"25115"},"variant_supplier_codes":{"60_0":"210H05141500B2TS","59_0":"210H05141500B2TM2","58_0":"210H05141500B2TM3","57_0":"210H05141500B2TM1","56_0":"210H05141500B2TY0","55_0":"210H05141500B2TC1","54_0":"210H05141500B2TC2","53_0":"210H05141500B2TR2","52_0":"210H05141500B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"99","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 10H Decorative Radiator 514x1500 Anthracite (Thin Radiator) ∆t50°C=777 Kcal/h | ∆t60°C= 979 Kcal/h | 7 Pipes | Heats 5-15 m2

28,218.00 TL

15,519.90 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5869","59_0":"8614","58_0":"11359","57_0":"14104","56_0":"16849","55_0":"18109","54_0":"19369","53_0":"21106","52_0":"21442"},"variant_prices":{"60_0":12933.25,"59_0":13813.25,"58_0":13813.25,"57_0":13813.25,"56_0":13813.25,"55_0":13813.25,"54_0":13813.25,"53_0":13813.25,"52_0":13813.25},"variant_price_raws":{"60_0":12933.25,"59_0":13813.25,"58_0":13813.25,"57_0":13813.25,"56_0":13813.25,"55_0":13813.25,"54_0":13813.25,"53_0":13813.25,"52_0":13813.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"23515","59_0":"25115","58_0":"25115","57_0":"25115","56_0":"25115","55_0":"25115","54_0":"25115","53_0":"25115","52_0":"25115"},"variant_supplier_codes":{"60_0":"210H05141500B3MS","59_0":"210H05141500B3MM2","58_0":"210H05141500B3MM3","57_0":"210H05141500B3MM1","56_0":"210H05141500B3MY0","55_0":"210H05141500B3MC1","54_0":"210H05141500B3MC2","53_0":"210H05141500B3MR2","52_0":"210H05141500B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 10H Decorative Radiator 514x1500 Matte Black (Thin Radiator) ∆t50°C=777 Kcal/h | ∆t60°C= 979 Kcal/h | 7 Pipes | Heats 5-15 m2

28,218.00 TL

15,519.90 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5868","59_0":"8613","58_0":"11358","57_0":"14103","56_0":"16848","55_0":"18108","54_0":"19368","53_0":"21105","52_0":"21441"},"variant_prices":{"60_0":16203.55,"59_0":17083.55,"58_0":17083.55,"57_0":17083.55,"56_0":17083.55,"55_0":17083.55,"54_0":17083.55,"53_0":17083.55,"52_0":17083.55},"variant_price_raws":{"60_0":16203.55,"59_0":17083.55,"58_0":17083.55,"57_0":17083.55,"56_0":17083.55,"55_0":17083.55,"54_0":17083.55,"53_0":17083.55,"52_0":17083.55},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"29461","59_0":"31061","58_0":"31061","57_0":"31061","56_0":"31061","55_0":"31061","54_0":"31061","53_0":"31061","52_0":"31061"},"variant_supplier_codes":{"60_0":"210H05141500K6FS","59_0":"210H05141500K6FM2","58_0":"210H05141500K6FM3","57_0":"210H05141500K6FM1","56_0":"210H05141500K6FY0","55_0":"210H05141500K6FC1","54_0":"210H05141500K6FC2","53_0":"210H05141500K6FR2","52_0":"210H05141500K6FL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 10H Decorative Radiator 514x1500 Wood Effect (Thin Radiator) ∆t50°C=777 Kcal/h | ∆t60°C= 979 Kcal/h | 7 Pipes | Heats 5-15 m2

35,353.20 TL

19,444.26 TL
