TECHNICAL INFORMATION
• Model = 10H
• Material =Steel
• Height=514 mm
• Width=600 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=7 Pieces
• Total Number of Profiles (Front + Back)=7+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=3 lt
• Weight=8 kg
• Boxed Weight=9,23 kg
• Box Size=57x66x8,6 cmTAPPING OPTIONS
• Standard Entry=550 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=690mm
• Cross Up-Right / Down-Left=690mm
• Cross Up-Left / Down-Right=690mm
• Side - Right=450mm
• Side - Left=450mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 312 Kcal/h
• Heat Output 90/70-20° ?t=60°C=394Kcal/h
• Heat Output 55/45-20° ?t=30°C=160Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=362 Watt
• Heat Output 90/70-20°?t=60°C=457 Watt
• Heat Output 55/45-20°?t=30°C=186 Watt
Btu
• Heat Output 75/65-20°?t=50°C=1236 Btu
• Heat Output 90/70-20°?t=60°C=1558 Btu
• Heat Output 55/45-20°?t=30°C=633 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

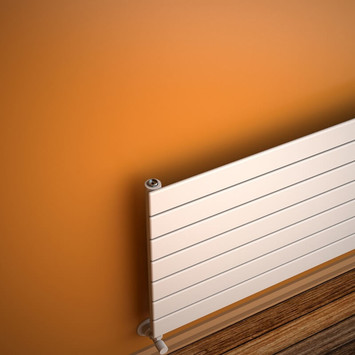

%45 DiscountAKS SeçenekleriType 10H Decorative Radiator 514x600 White (Thin Radiator) ∆t50°C=311 Kcal/h | ∆t60°C= 392 Kcal/h | 7 Pipes | Heats 2-6 m2
-

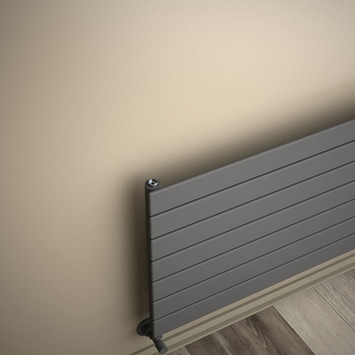

%45 DiscountAKS SeçenekleriType 10H Decorative Radiator 514x600 Anthracite (Thin Radiator) ∆t50°C=311 Kcal/h | ∆t60°C= 392 Kcal/h | 7 Pipes | Heats 2-6 m2
-

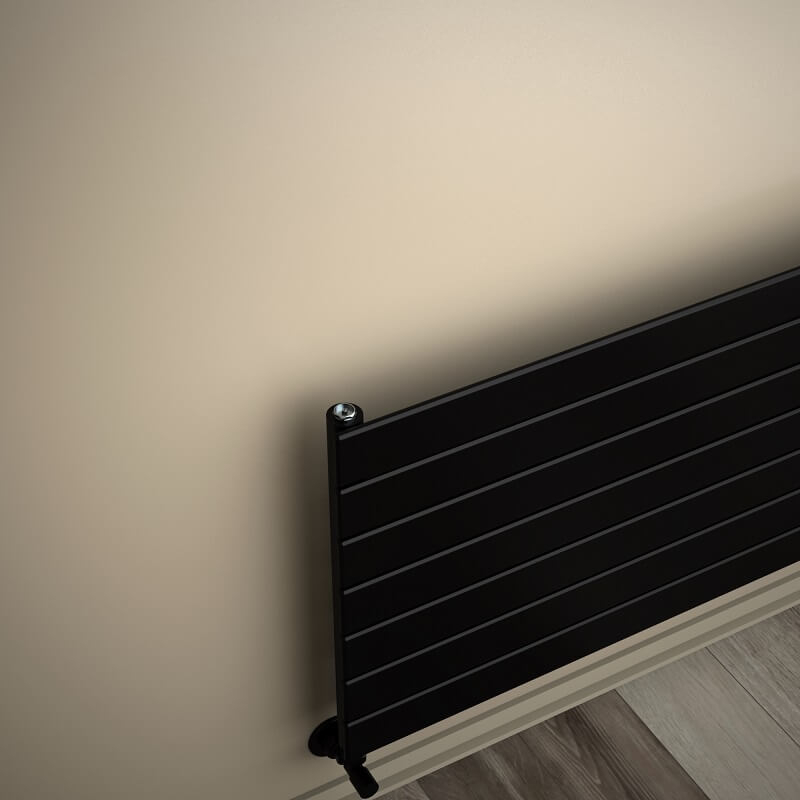

%45 DiscountAKS SeçenekleriType 10H Decorative Radiator 514x600 Matte Black (Thin Radiator) ∆t50°C=311 Kcal/h | ∆t60°C= 392 Kcal/h | 7 Pipes | Heats 2-6 m2
-
