%45 Discount

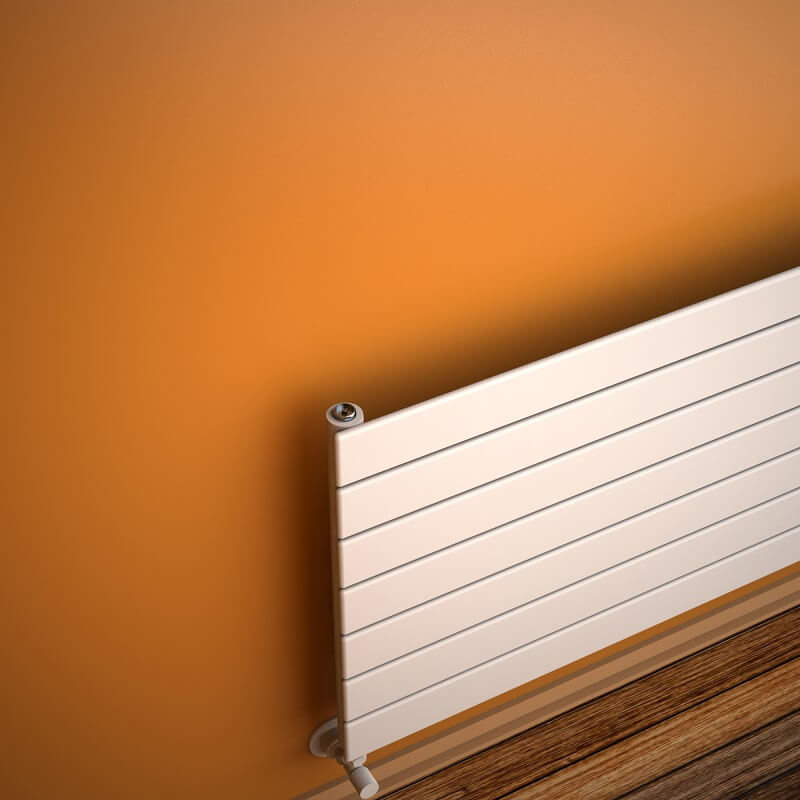

Type 10H Decorative Radiator 514x900 White (Thin Radiator)

Name: Type 10H Decorative Radiator 514x900 White (Thin Radiator)
SKU: 210H05140900B1PS
Price: 9368.70 TRY
Availability: InStock

Product Code : 210H05140900B1PS

Guarantee : 10 Year

TAXES Included

Price

17,034.00 TL

Discounted Price

9,368.70 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5842","59_0":"8587","58_0":"11332","57_0":"14077","56_0":"16822","55_0":"18082","54_0":"19342","53_0":"21079","52_0":"21415"},"variant_prices":{"60_0":7807.25,"59_0":8687.25,"58_0":8687.25,"57_0":8687.25,"56_0":8687.25,"55_0":8687.25,"54_0":8687.25,"53_0":8687.25,"52_0":8687.25},"variant_price_raws":{"60_0":7807.25,"59_0":8687.25,"58_0":8687.25,"57_0":8687.25,"56_0":8687.25,"55_0":8687.25,"54_0":8687.25,"53_0":8687.25,"52_0":8687.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"14195","59_0":"15795","58_0":"15795","57_0":"15795","56_0":"15795","55_0":"15795","54_0":"15795","53_0":"15795","52_0":"15795"},"variant_supplier_codes":{"60_0":"210H05140900B1PS","59_0":"210H05140900B1PM2","58_0":"210H05140900B1PM3","57_0":"210H05140900B1PM1","56_0":"210H05140900B1PY0","55_0":"210H05140900B1PC1","54_0":"210H05140900B1PC2","53_0":"210H05140900B1PR2","52_0":"210H05140900B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10H

• Material =Steel

• Height=514 mm

• Width=900 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=4 lt

• Weight=11,3 kg

• Boxed Weight=12,99 kg

• Box Size=57x96x8,6 cm

TAPPING OPTIONS

• Standard Entry=850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=990mm

• Cross Up-Right / Down-Left=990mm

• Cross Up-Left / Down-Right=990mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 467 Kcal/h

• Heat Output 90/70-20° ?t=60°C=589Kcal/h

• Heat Output 55/45-20° ?t=30°C=240Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=543 Watt

• Heat Output 90/70-20°?t=60°C=685 Watt

• Heat Output 55/45-20°?t=30°C=279 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1853 Btu

• Heat Output 90/70-20°?t=60°C=2335 Btu

• Heat Output 55/45-20°?t=30°C=949 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
