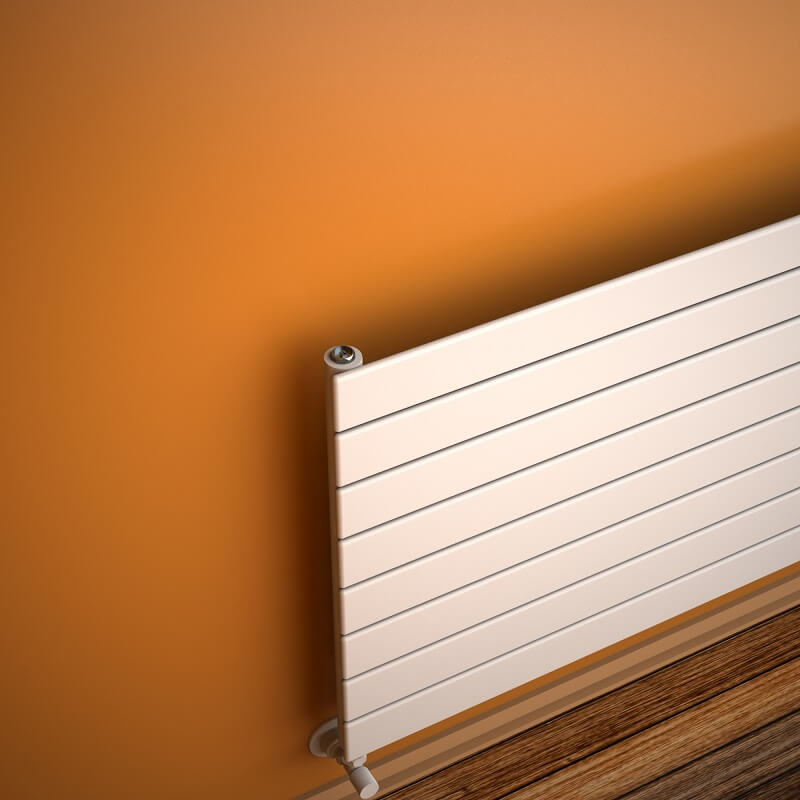

Type 10H Decorative Radiator 588x1600 White (Thin Radiator)

Name: Type 10H Decorative Radiator 588x1600 White (Thin Radiator)
SKU: 210H05881600B1PS
Price: 14507.46 TRY
Availability: InStock

Product Code : 210H05881600B1PS

Guarantee : 10 Year

TAXES Included

Price

26,377.20 TL

Discounted Price

14,507.46 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"5702","68_0":"13937","67_0":"11192","66_0":"8447","65_0":"16682","64_0":"17942","63_0":"19202","62_0":"22040","61_0":"21770"},"variant_prices":{"69_0":12089.55,"68_0":12969.55,"67_0":12969.55,"66_0":12969.55,"65_0":12969.55,"64_0":12969.55,"63_0":12969.55,"62_0":12969.55,"61_0":12969.55},"variant_price_raws":{"69_0":12089.55,"68_0":12969.55,"67_0":12969.55,"66_0":12969.55,"65_0":12969.55,"64_0":12969.55,"63_0":12969.55,"62_0":12969.55,"61_0":12969.55},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"21981","68_0":"23581","67_0":"23581","66_0":"23581","65_0":"23581","64_0":"23581","63_0":"23581","62_0":"23581","61_0":"23581"},"variant_supplier_codes":{"69_0":"210H05881600B1PS","68_0":"210H05881600B1PM1","67_0":"210H05881600B1PM3","66_0":"210H05881600B1PM2","65_0":"210H05881600B1PY0","64_0":"210H05881600B1PC1","63_0":"210H05881600B1PC2","62_0":"210H05881600B1PL4","61_0":"210H05881600B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10H

• Material =Steel

• Height=588 mm

• Width=1600 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=7,4 lt

• Weight=21,7 kg

• Boxed Weight=24,83 kg

• Box Size=64x166x8,6 cm

TAPPING OPTIONS

• Standard Entry=1550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1690mm

• Cross Up-Right / Down-Left=1690mm

• Cross Up-Left / Down-Right=1690mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 937 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1181Kcal/h

• Heat Output 55/45-20° ?t=30°C=480Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1089 Watt

• Heat Output 90/70-20°?t=60°C=1373 Watt

• Heat Output 55/45-20°?t=30°C=558 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3716 Btu

• Heat Output 90/70-20°?t=60°C=4683 Btu

• Heat Output 55/45-20°?t=30°C=1903 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
