TECHNICAL INFORMATION

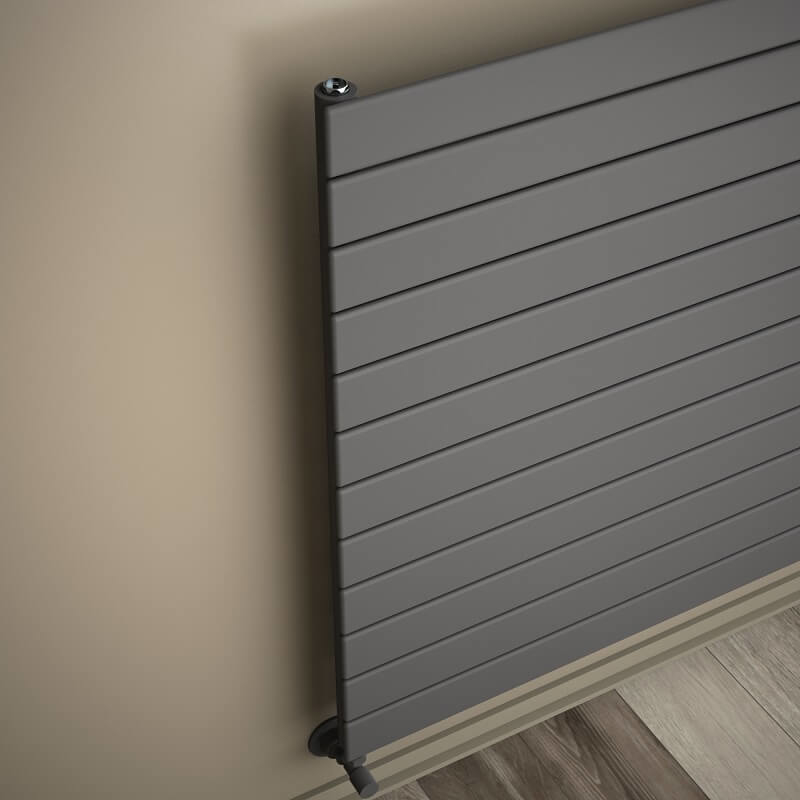

• Model = 10H
• Material =Steel
• Height=884 mm
• Width=1500 mm
• Color/Coating=Anthracite
• Number of Sections=12 Pieces
• Total Number of Profiles (Front + Back)=12+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=10,5 lt
• Weight=30,6 kg
• Boxed Weight=34,88 kg
• Box Size=94x156x8,6 cmTAPPING OPTIONS
• Standard Entry=1450 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1590mm
• Cross Up-Right / Down-Left=1590mm
• Cross Up-Left / Down-Right=1590mm
• Side - Right=850mm
• Side - Left=850mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1265 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1594Kcal/h
• Heat Output 55/45-20° ?t=30°C=648Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1470 Watt
• Heat Output 90/70-20°?t=60°C=1853 Watt
• Heat Output 55/45-20°?t=30°C=753 Watt
Btu
• Heat Output 75/65-20°?t=50°C=5016 Btu
• Heat Output 90/70-20°?t=60°C=6321 Btu
• Heat Output 55/45-20°?t=30°C=2569 Btu
Warranty:10 YearsDelivery Information:21 Day
