TECHNICAL INFORMATION
• Model = 10H
• Material =Steel
• Height=884 mm
• Width=2300 mm

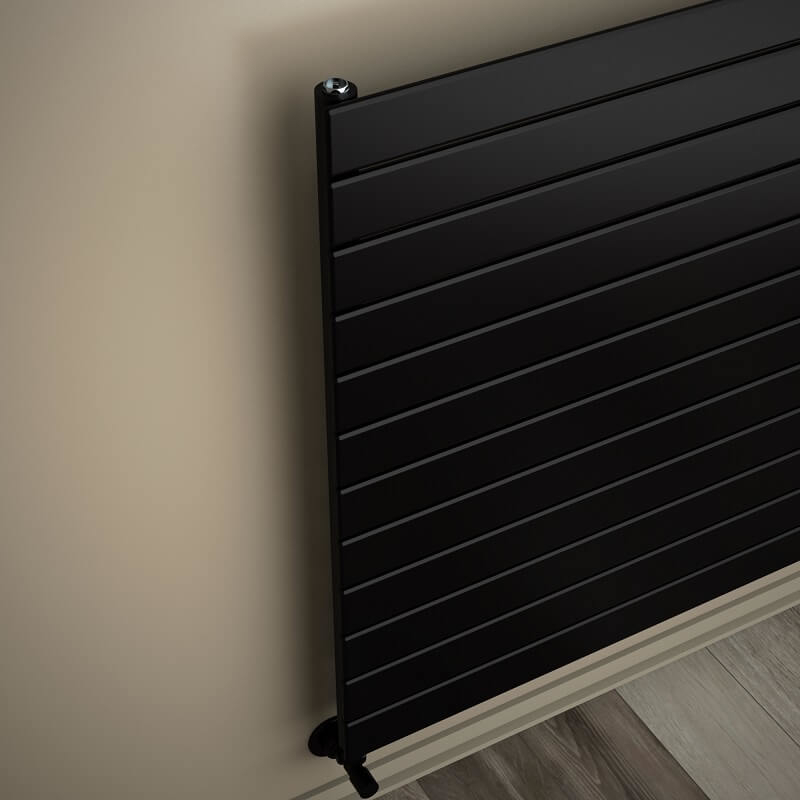

• Color/Coating=Matte Black RAL9005
• Number of Sections=12 Pieces
• Total Number of Profiles (Front + Back)=12+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=15,2 lt
• Weight=45,5 kg
• Boxed Weight=51,9 kg
• Box Size=94x236x8,6 cmTAPPING OPTIONS
• Standard Entry=2250 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=2390mm
• Cross Up-Right / Down-Left=2390mm
• Cross Up-Left / Down-Right=2390mm
• Side - Right=850mm
• Side - Left=850mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1940 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2445Kcal/h
• Heat Output 55/45-20° ?t=30°C=994Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2255 Watt
• Heat Output 90/70-20°?t=60°C=2842 Watt
• Heat Output 55/45-20°?t=30°C=1155 Watt
Btu
• Heat Output 75/65-20°?t=50°C=7695 Btu
• Heat Output 90/70-20°?t=60°C=9696 Btu
• Heat Output 55/45-20°?t=30°C=3940 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

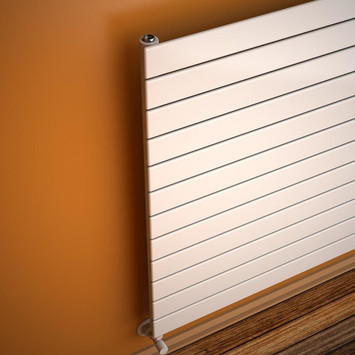

%45 DiscountAKS SeçenekleriType 10H Decorative Radiator 884x2300 White (Thin Radiator) ∆t50°C=1939 Kcal/h | ∆t60°C= 2444 Kcal/h | 12 Pipes | Heats 13-38 m2
-

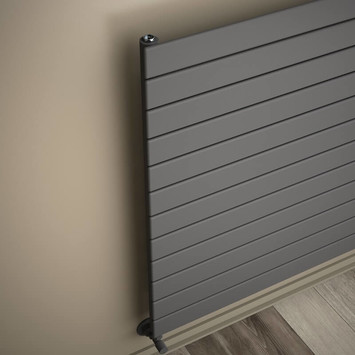

%45 DiscountAKS SeçenekleriType 10H Decorative Radiator 884x2300 Anthracite (Thin Radiator) ∆t50°C=1939 Kcal/h | ∆t60°C= 2444 Kcal/h | 12 Pipes | Heats 13-38 m2
-
