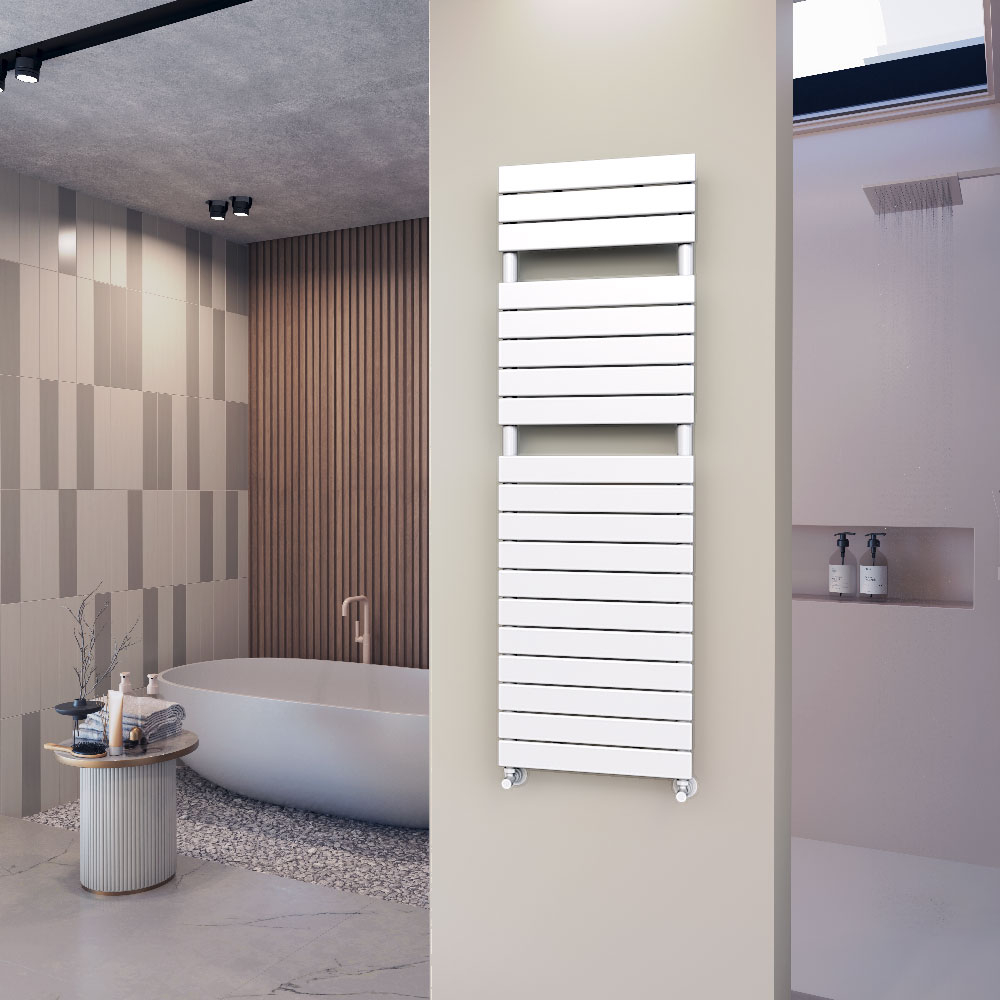

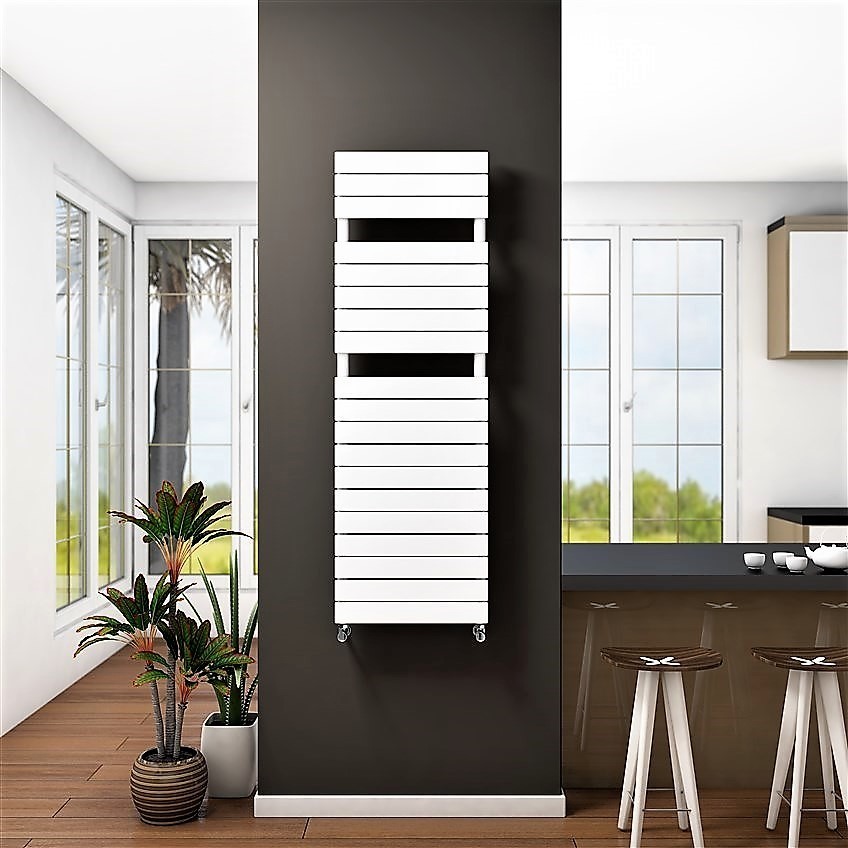

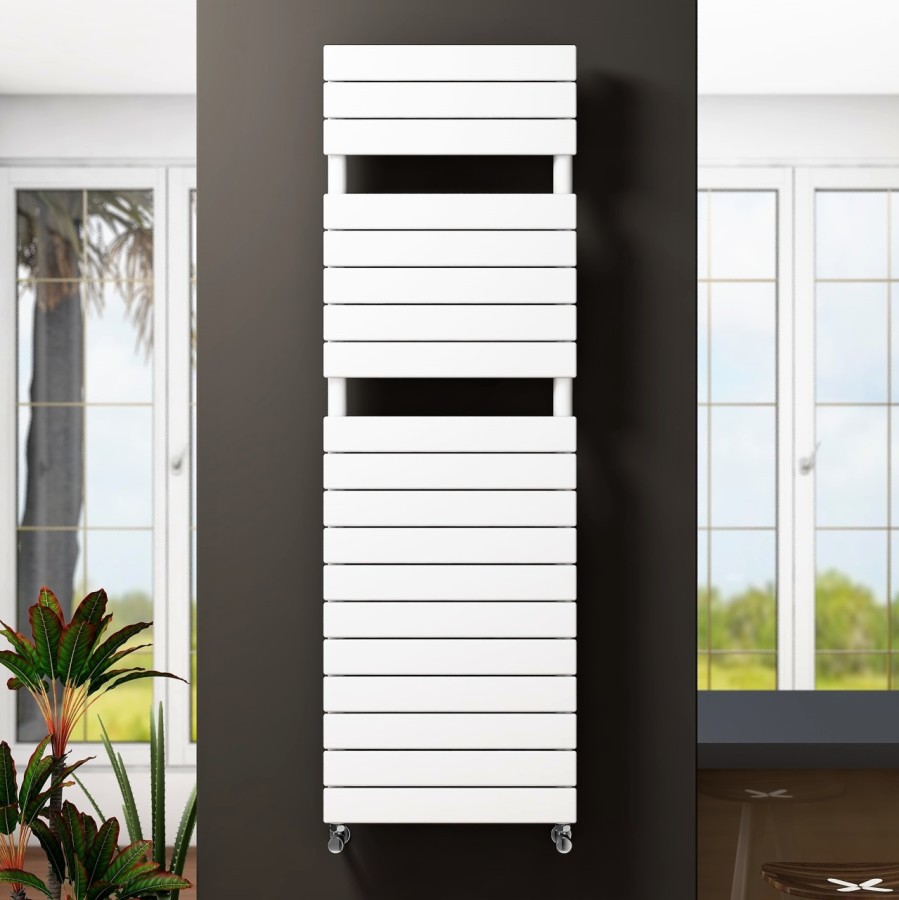

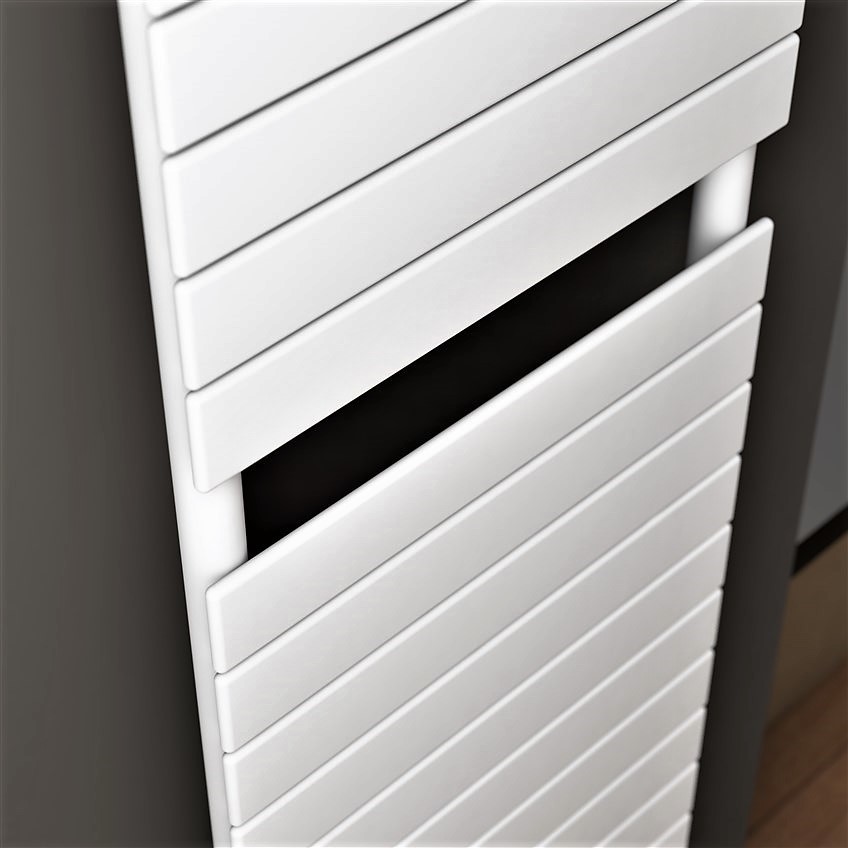

Type 10H Decorative Towel Warmer 500x1550 White

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Tip 10H

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 500 mm

• Height = 1550 mm

• Color/Coating = Matt White

• Tapping Distance = 450 mm

• Maximum Working Pressure = 4,5 bar

• Wall to Center of Inlet = 40 mm

• Wall Projection Distance = 69 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 7,4 lt

• Weight = 18,7 kg

• Boxed Weight = 19,8 kg

• Box Size = 54x160x10 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 631 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 796 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 324 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 733 Watt

• Heat Output 90/70-20° ?t=60°C = 924 Watt

• Heat Output 55/45-20° ?t=30°C = 376 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 2501 Btu

• Heat Output 90/70-20° ?t=60°C = 3152 Btu

• Heat Output 55/45-20° ?t=30°C = 1281 Btu
