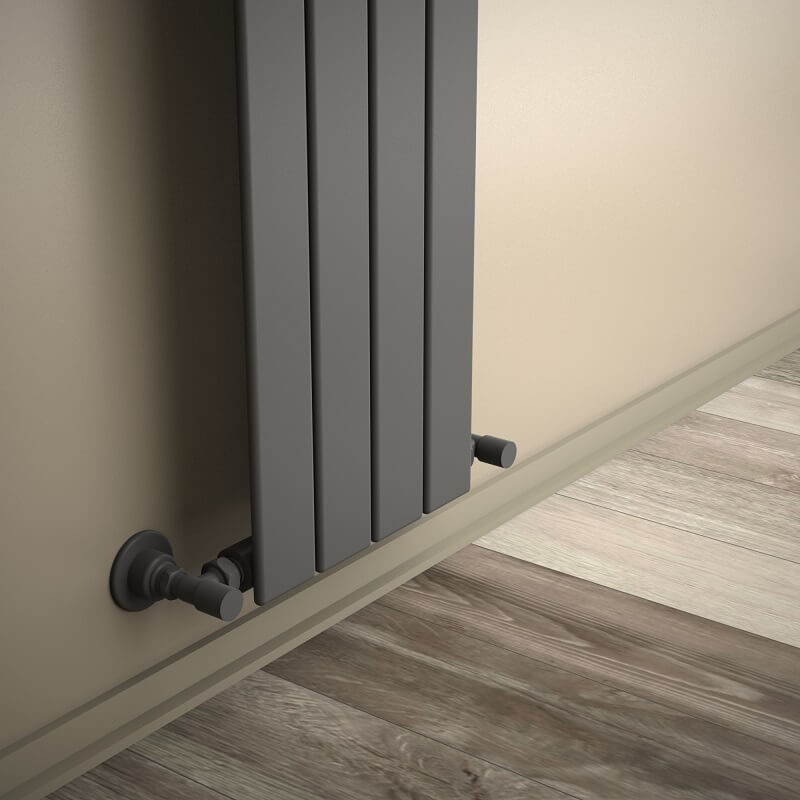

TECHNICAL INFORMATION
• Model = 10V
• Material =Steel
• Height=1200 mm
• Width=292 mm
• Color/Coating=Anthracite
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=2,9 lt
• Weight=8,4 kg
• Boxed Weight=9,76 kg
• Box Size=34x125x8,6 cmTAPPING OPTIONS
• Standard Entry1 =382 mm
• Standard Entry2 =1150 mm
• Standard Entry Cross =382 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 356 Kcal/h
• Heat Output 90/70-20° ?t=60°C=449Kcal/h
• Heat Output 55/45-20° ?t=30°C=183 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=413 Watt
• Heat Output 90/70-20°?t=60°C=521 Watt
• Heat Output 55/45-20°?t=30°C=212 Watt
Btu
• Heat Output 75/65-20°?t=50°C=1410 Btu
• Heat Output 90/70-20°?t=60°C=1777 Btu
• Heat Output 55/45-20°?t=30°C=722 Btu
Warranty:10 YearsDelivery Information:21 Day
