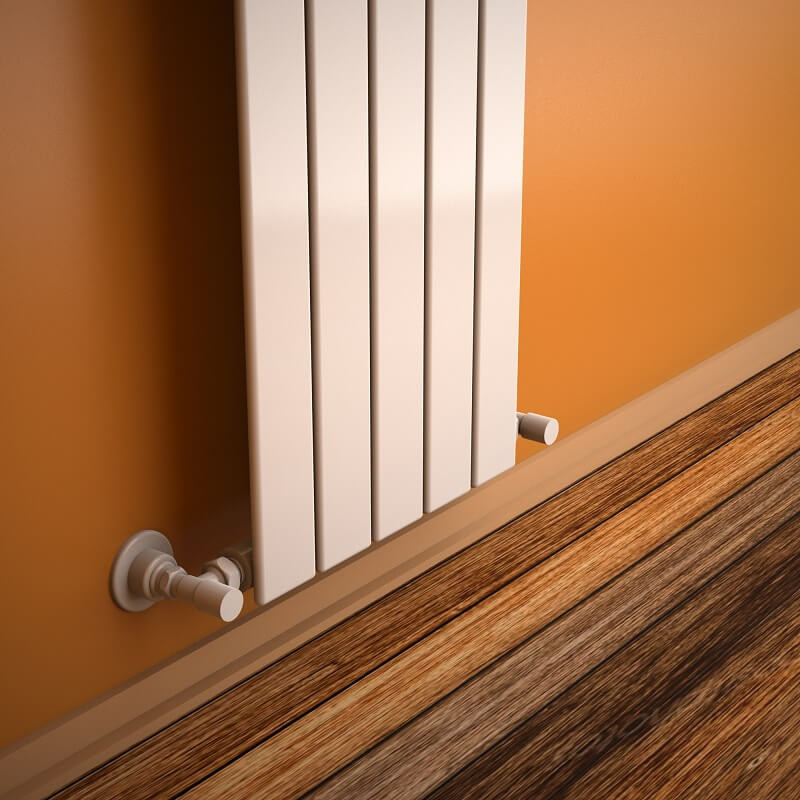

Type 10V Decorative Radiator 1200x366 White

Product Code : 210V12000366B1PS
Guarantee : 10 Year
TAXES Included
Price
:
15,049.20 TL
Discounted Price
:
8,277.06 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =1200 mm

    • Width=366 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=5 Pieces

    • Total Number of Profiles (Front + Back)=5+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=3,6 lt

    • Weight=10,4 kg

    • Boxed Weight    =12,02 kg

    • Box Size=41x125x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =456 mm

    • Standard Entry2 =1150 mm

    • Standard Entry Cross =456 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 444 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=560Kcal/h

    • Heat Output 55/45-20° ?t=30°C=228 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=516 Watt

    • Heat Output 90/70-20°?t=60°C=651 Watt

    • Heat Output 55/45-20°?t=30°C=265 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=1761 Btu

    • Heat Output 90/70-20°?t=60°C=2219 Btu

    • Heat Output 55/45-20°?t=30°C=902 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
