TECHNICAL INFORMATION

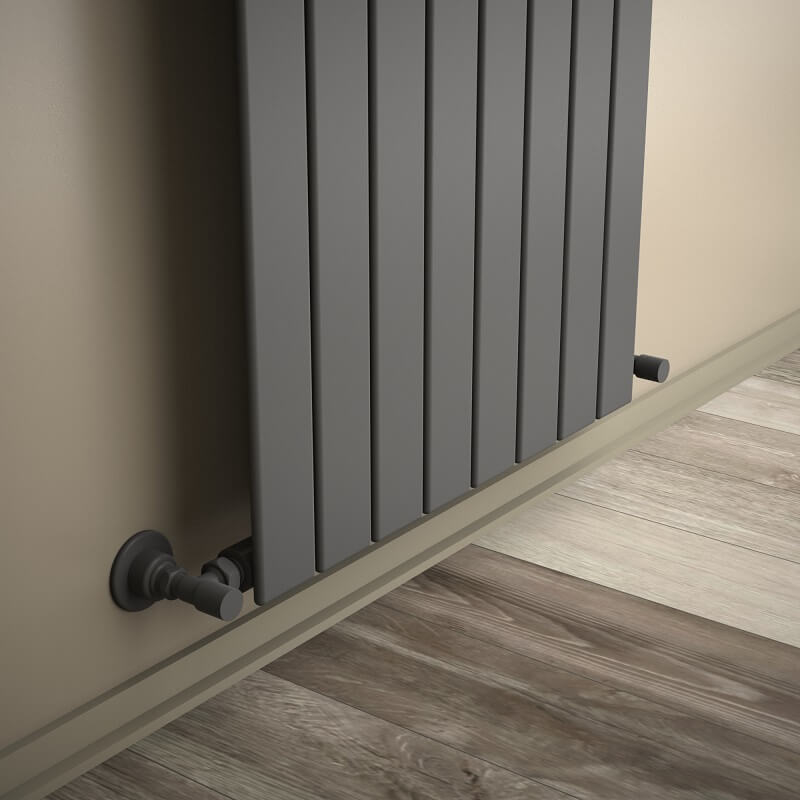

• Model = 10V
• Material =Steel
• Height=1200 mm
• Width=588 mm
• Color/Coating=Anthracite
• Number of Sections=8 Pieces
• Total Number of Profiles (Front + Back)=8+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=5,8 lt
• Weight=16,7 kg
• Boxed Weight=19,12 kg
• Box Size=63x125x8,6 cmTAPPING OPTIONS
• Standard Entry1 =678 mm
• Standard Entry2 =1150 mm
• Standard Entry Cross =678 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 711 Kcal/h
• Heat Output 90/70-20° ?t=60°C=896Kcal/h
• Heat Output 55/45-20° ?t=30°C=365 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=826 Watt
• Heat Output 90/70-20°?t=60°C=1041 Watt
• Heat Output 55/45-20°?t=30°C=423 Watt
Btu
• Heat Output 75/65-20°?t=50°C=2819 Btu
• Heat Output 90/70-20°?t=60°C=3552 Btu
• Heat Output 55/45-20°?t=30°C=1444 Btu
Warranty:10 YearsDelivery Information:21 Day
