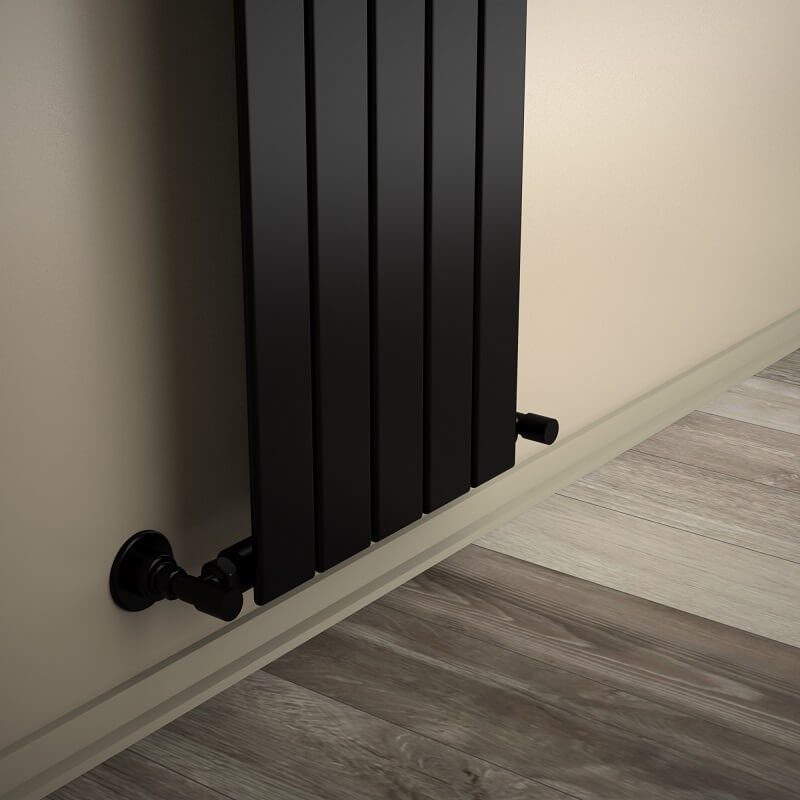

Type 10V Decorative Radiator 1500x366 Matte Black

Product Code : 210V15000366B3MS
Guarantee : 10 Year
TAXES Included
Price
:
21,705.00 TL
Discounted Price
:
11,937.75 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
20.11.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =1500 mm

    • Width=366 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=5 Pieces

    • Total Number of Profiles (Front + Back)=5+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=4,4 lt

    • Weight=12,8 kg

    • Boxed Weight    =14,75 kg

    • Box Size=41x155x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =456 mm

    • Standard Entry2 =1450 mm

    • Standard Entry Cross =456 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 538 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=678Kcal/h

    • Heat Output 55/45-20° ?t=30°C=276 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=625 Watt

    • Heat Output 90/70-20°?t=60°C=788 Watt

    • Heat Output 55/45-20°?t=30°C=320 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=2133 Btu

    • Heat Output 90/70-20°?t=60°C=2688 Btu

    • Heat Output 55/45-20°?t=30°C=1093 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , dikey radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , siyah radyatör , mat siyah radyatör
Other Colors
  • %45 Discount - Type 10V Decorative Radiator 1500x366 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 1500x366 White ∆t50°C=538 Kcal/h | ∆t60°C= 678 Kcal/h | 5 Pipes | Heats 4-11 m2
    17,364.00 TL
    9,550.20 TL
  • %45 Discount - Type 10V Decorative Radiator 1500x366 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 1500x366 Anthracite ∆t50°C=538 Kcal/h | ∆t60°C= 678 Kcal/h | 5 Pipes | Heats 4-11 m2
    21,705.00 TL
    11,937.75 TL
  • %45 Discount - Type 10V Decorative Radiator 1500x366 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 1500x366 Matte Black ∆t50°C=538 Kcal/h | ∆t60°C= 678 Kcal/h | 5 Pipes | Heats 4-11 m2
    21,705.00 TL
    11,937.75 TL
  • %45 Discount - Type 10V Decorative Radiator 1500x366 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 1500x366 Wood Effect ∆t50°C=538 Kcal/h | ∆t60°C= 678 Kcal/h | 5 Pipes | Heats 4-11 m2
    28,030.80 TL
    15,416.94 TL
