%45 Discount

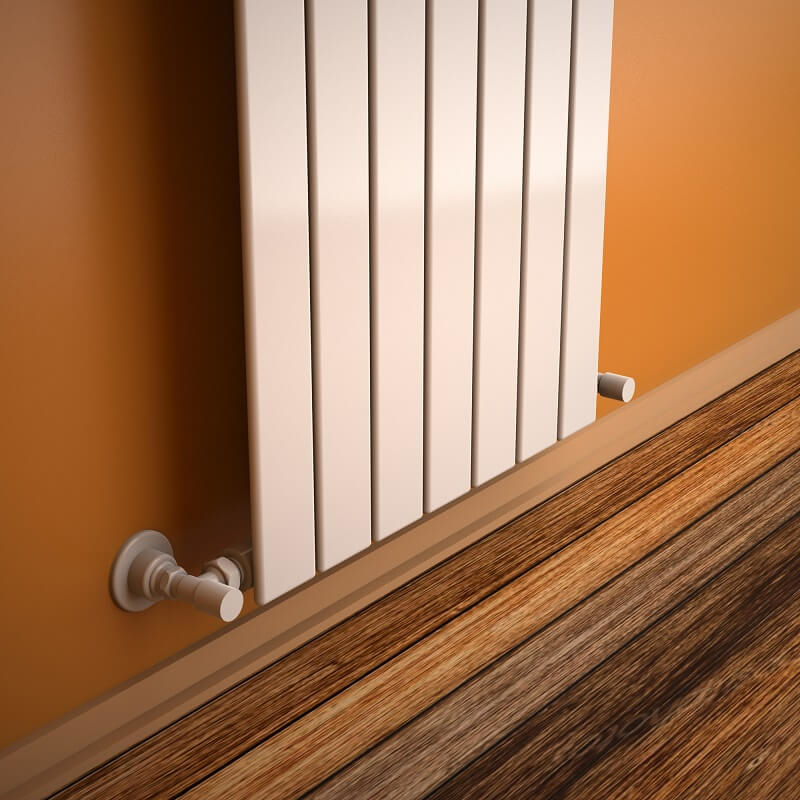

Type 10V Decorative Radiator 1500x514 White

Name: Type 10V Decorative Radiator 1500x514 White
SKU: 210V15000514B1PS
Price: 12415.92 TRY
Availability: InStock

Product Code : 210V15000514B1PS

Guarantee : 10 Year

TAXES Included

Price

22,574.40 TL

Discounted Price

12,415.92 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

24.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=1500 mm

• Width=514 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,1 lt

• Weight=17,9 kg

• Boxed Weight=20,52 kg

• Box Size=56x155x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =604 mm

• Standard Entry2 =1450 mm

• Standard Entry Cross =604 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 753 Kcal/h

• Heat Output 90/70-20° ?t=60°C=949Kcal/h

• Heat Output 55/45-20° ?t=30°C=386 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=875 Watt

• Heat Output 90/70-20°?t=60°C=1103 Watt

• Heat Output 55/45-20°?t=30°C=448 Watt

Btu

• Heat Output 75/65-20°?t=50°C=2986 Btu

• Heat Output 90/70-20°?t=60°C=3763 Btu

• Heat Output 55/45-20°?t=30°C=1529 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6876","36_0":"15111","34_0":"12366","35_0":"9621"},"variant_prices":{"37_0":10346.6,"36_0":11226.6,"34_0":11226.6,"35_0":11226.6},"variant_price_raws":{"37_0":10346.6,"36_0":11226.6,"34_0":11226.6,"35_0":11226.6},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"18812","36_0":"20412","34_0":"20412","35_0":"20412"},"variant_supplier_codes":{"37_0":"210V15000514B1PS","36_0":"210V15000514B1PM1","34_0":"210V15000514B1PM3","35_0":"210V15000514B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"97","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 1500x514 White ∆t50°C=753 Kcal/h | ∆t60°C= 949 Kcal/h | 7 Pipes | Heats 5-15 m2

22,574.40 TL

12,415.92 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6877","36_0":"15112","34_0":"12367","35_0":"9622"},"variant_prices":{"37_0":12933.25,"36_0":13813.25,"34_0":13813.25,"35_0":13813.25},"variant_price_raws":{"37_0":12933.25,"36_0":13813.25,"34_0":13813.25,"35_0":13813.25},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"23515","36_0":"25115","34_0":"25115","35_0":"25115"},"variant_supplier_codes":{"37_0":"210V15000514B2TS","36_0":"210V15000514B2TM1","34_0":"210V15000514B2TM3","35_0":"210V15000514B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"99","36_0":"100","34_0":"99","35_0":"100"}}

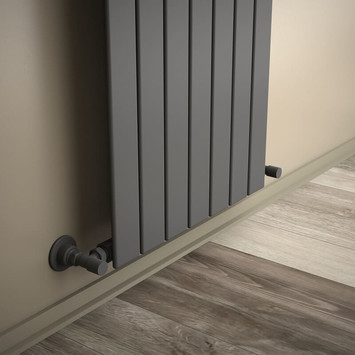

Type 10V Decorative Radiator 1500x514 Anthracite ∆t50°C=753 Kcal/h | ∆t60°C= 949 Kcal/h | 7 Pipes | Heats 5-15 m2
