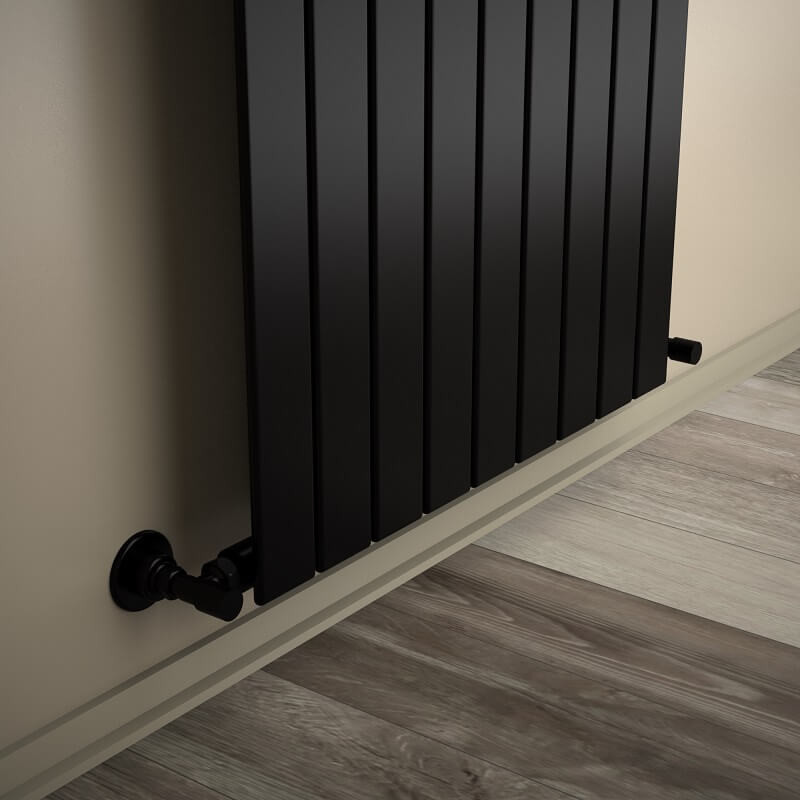

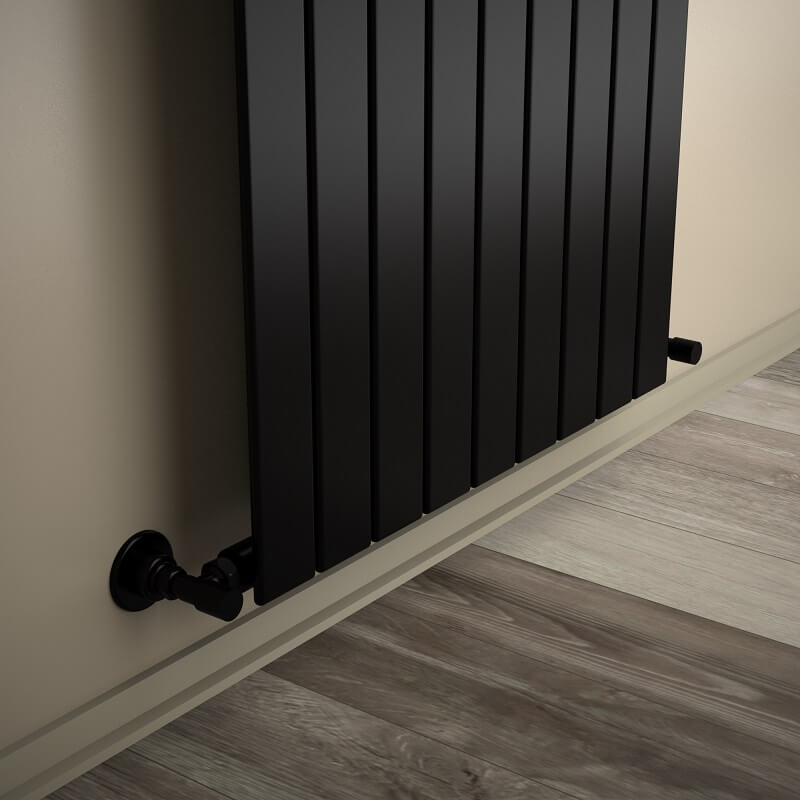

Type 10V Decorative Radiator 1500x662 Matte Black

Name: Type 10V Decorative Radiator 1500x662 Matte Black
SKU: 210V15000662B3MS
Price: 19044.30 TRY
Availability: InStock

Product Code : 210V15000662B3MS

Guarantee : 10 Year

TAXES Included

Price

34,626.00 TL

Discounted Price

19,044.30 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=1500 mm

• Width=662 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=9 Pieces

• Total Number of Profiles (Front + Back)=9+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=7,8 lt

• Weight=22,9 kg

• Boxed Weight=26,18 kg

• Box Size=71x155x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =752 mm

• Standard Entry2 =1450 mm

• Standard Entry Cross =752 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 968 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1220Kcal/h

• Heat Output 55/45-20° ?t=30°C=496 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1125 Watt

• Heat Output 90/70-20°?t=60°C=1418 Watt

• Heat Output 55/45-20°?t=30°C=576 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3839 Btu

• Heat Output 90/70-20°?t=60°C=4838 Btu

• Heat Output 55/45-20°?t=30°C=1966 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , dikey radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , siyah radyatör , mat siyah radyatör

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6884","36_0":"15119","34_0":"12374","35_0":"9629"},"variant_prices":{"37_0":12696.2,"36_0":13576.2,"34_0":13576.2,"35_0":13576.2},"variant_price_raws":{"37_0":12696.2,"36_0":13576.2,"34_0":13576.2,"35_0":13576.2},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"23084","36_0":"24684","34_0":"24684","35_0":"24684"},"variant_supplier_codes":{"37_0":"210V15000662B1PS","36_0":"210V15000662B1PM1","34_0":"210V15000662B1PM3","35_0":"210V15000662B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

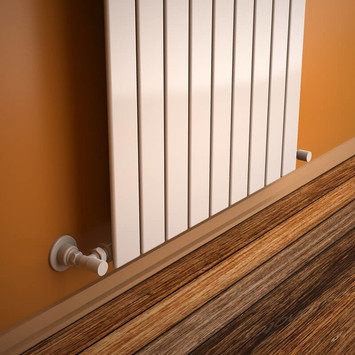

Type 10V Decorative Radiator 1500x662 White ∆t50°C=968 Kcal/h | ∆t60°C= 1220 Kcal/h | 9 Pipes | Heats 7-19 m2

27,700.80 TL

15,235.44 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6885","36_0":"15120","34_0":"12375","35_0":"9630"},"variant_prices":{"37_0":15870.25,"36_0":16750.25,"34_0":16750.25,"35_0":16750.25},"variant_price_raws":{"37_0":15870.25,"36_0":16750.25,"34_0":16750.25,"35_0":16750.25},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"28855","36_0":"30455","34_0":"30455","35_0":"30455"},"variant_supplier_codes":{"37_0":"210V15000662B2TS","36_0":"210V15000662B2TM1","34_0":"210V15000662B2TM3","35_0":"210V15000662B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

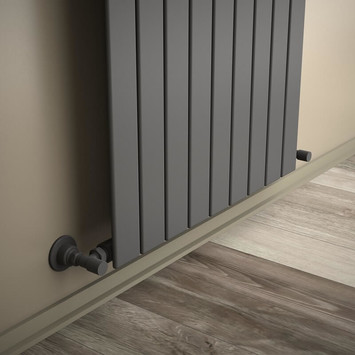

Type 10V Decorative Radiator 1500x662 Anthracite ∆t50°C=968 Kcal/h | ∆t60°C= 1220 Kcal/h | 9 Pipes | Heats 7-19 m2
