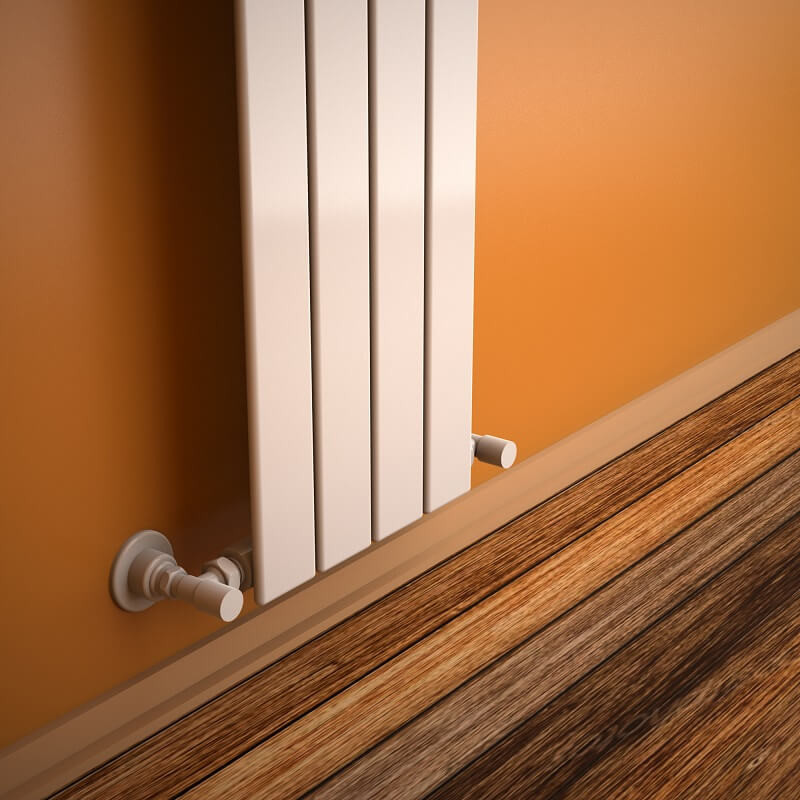

Type 10V Decorative Radiator 1600x292 White

Product Code : 210V16000292B1PS
Guarantee : 10 Year
TAXES Included
Price
:
15,463.20 TL
Discounted Price
:
8,504.76 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =1600 mm

    • Width=292 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=4 Pieces

    • Total Number of Profiles (Front + Back)=4+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=3,7 lt

    • Weight=10,9 kg

    • Boxed Weight    =12,61 kg

    • Box Size=34x165x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =382 mm

    • Standard Entry2 =1550 mm

    • Standard Entry Cross =382 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 455 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=574Kcal/h

    • Heat Output 55/45-20° ?t=30°C=233 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=528 Watt

    • Heat Output 90/70-20°?t=60°C=666 Watt

    • Heat Output 55/45-20°?t=30°C=271 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=1802 Btu

    • Heat Output 90/70-20°?t=60°C=2271 Btu

    • Heat Output 55/45-20°?t=30°C=923 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri
Other Colors
  • %45 Discount - Type 10V Decorative Radiator 1600x292 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 1600x292 White ∆t50°C=454 Kcal/h | ∆t60°C= 572 Kcal/h | 4 Pipes | Heats 3-9 m2
    15,463.20 TL
    8,504.76 TL
  • %45 Discount - Type 10V Decorative Radiator 1600x292 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 1600x292 Anthracite ∆t50°C=454 Kcal/h | ∆t60°C= 572 Kcal/h | 4 Pipes | Heats 3-9 m2
    19,329.00 TL
    10,630.95 TL
  • %45 Discount - Type 10V Decorative Radiator 1600x292 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 1600x292 Matte Black ∆t50°C=454 Kcal/h | ∆t60°C= 572 Kcal/h | 4 Pipes | Heats 3-9 m2
    19,329.00 TL
    10,630.95 TL
  • %45 Discount - Type 10V Decorative Radiator 1600x292 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 1600x292 Wood Effect ∆t50°C=454 Kcal/h | ∆t60°C= 572 Kcal/h | 4 Pipes | Heats 3-9 m2
    25,350.00 TL
    13,942.50 TL
