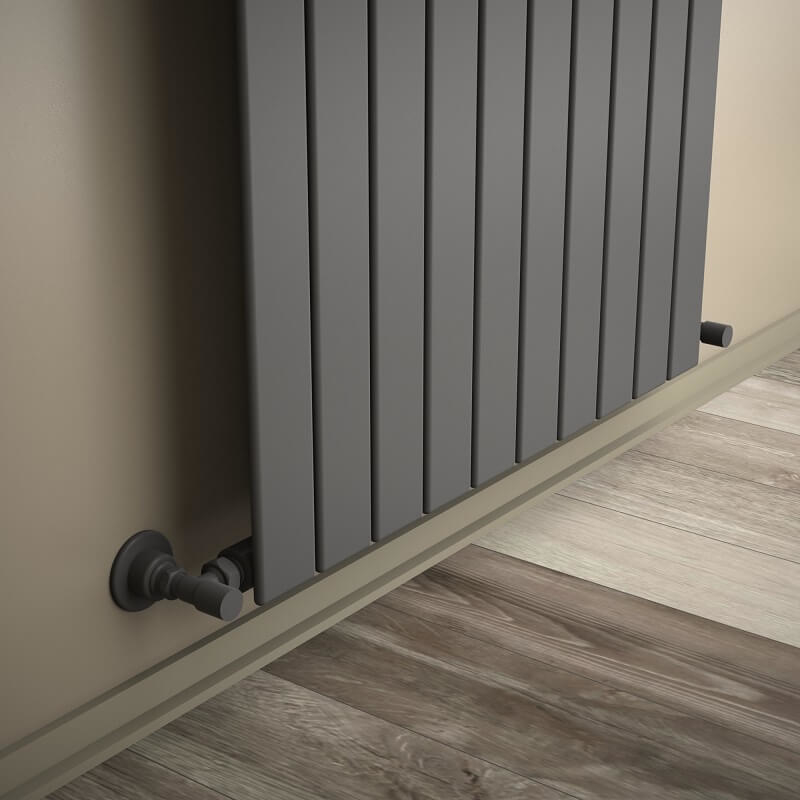

Type 10V Decorative Radiator 1600x736 Anthracite

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=1600 mm

• Width=736 mm

• Color/Coating=Anthracite

• Number of Sections=10 Pieces

• Total Number of Profiles (Front + Back)=10+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=9,2 lt

• Weight=27 kg

• Boxed Weight=30,84 kg

• Box Size=78x165x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =826 mm

• Standard Entry2 =1550 mm

• Standard Entry Cross =826 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1135 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1431Kcal/h

• Heat Output 55/45-20° ?t=30°C=582 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1319 Watt

• Heat Output 90/70-20°?t=60°C=1662 Watt

• Heat Output 55/45-20°?t=30°C=676 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4501 Btu

• Heat Output 90/70-20°?t=60°C=5672 Btu

• Heat Output 55/45-20°?t=30°C=2305 Btu
