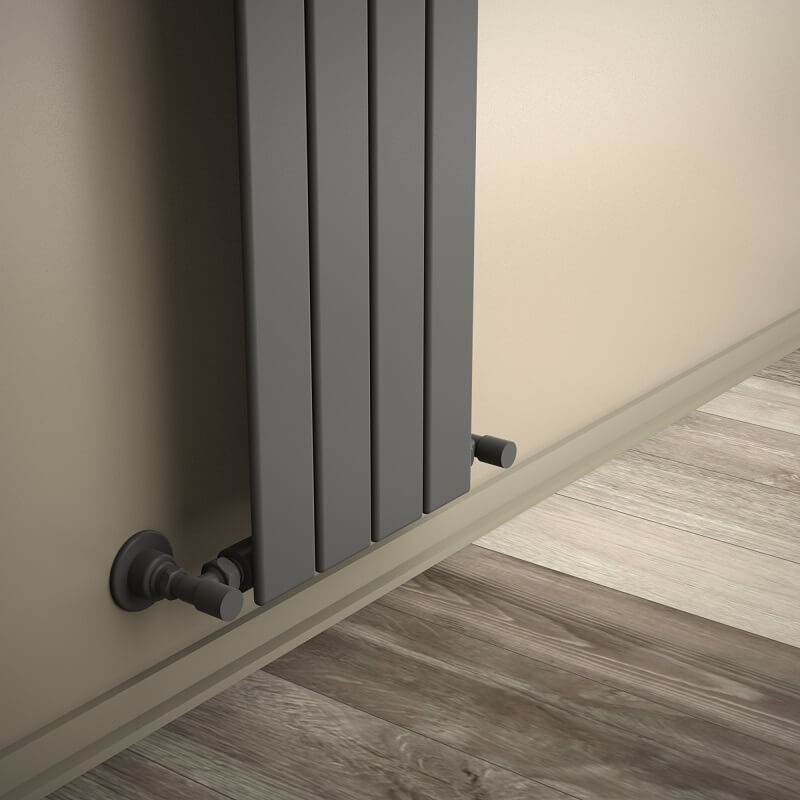

Type 10V Decorative Radiator 1800x292 Anthracite

Product Code : 210V18000292B2TS
Guarantee : 10 Year
TAXES Included
Price
:
20,982.00 TL
Discounted Price
:
11,540.10 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
20.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =1800 mm

    • Width=292 mm

    • Color/Coating=Anthracite

    • Number of Sections=4 Pieces

    • Total Number of Profiles (Front + Back)=4+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=4,1 lt

    • Weight=12,1 kg

    • Boxed Weight    =13,98 kg

    • Box Size=34x185x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =382 mm

    • Standard Entry2 =1750 mm

    • Standard Entry Cross =382 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 500 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=630Kcal/h

    • Heat Output 55/45-20° ?t=30°C=256 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=581 Watt

    • Heat Output 90/70-20°?t=60°C=733 Watt

    • Heat Output 55/45-20°?t=30°C=298 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=1983 Btu

    • Heat Output 90/70-20°?t=60°C=2499 Btu

    • Heat Output 55/45-20°?t=30°C=1016 Btu
