%45 Discount

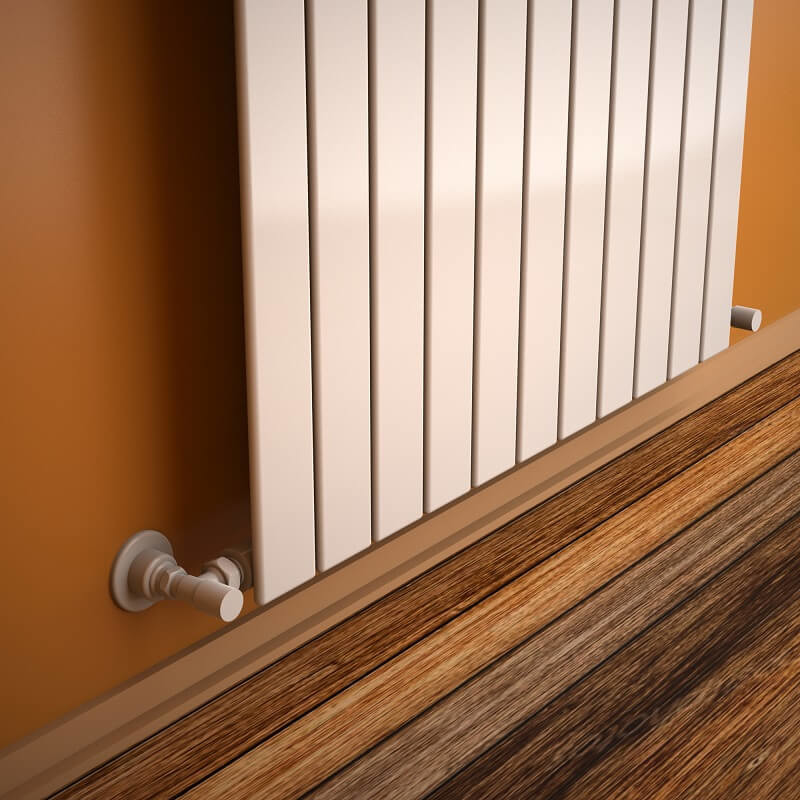

Type 10V Decorative Radiator 1800x810 White

Name: Type 10V Decorative Radiator 1800x810 White
SKU: 210V18000810B1PS
Price: 20965.56 TRY
Availability: InStock

Product Code : 210V18000810B1PS

Guarantee : 10 Year

TAXES Included

Price

38,119.20 TL

Discounted Price

20,965.56 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

20.02.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=1800 mm

• Width=810 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=11 Pieces

• Total Number of Profiles (Front + Back)=11+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,2 lt

• Weight=33,2 kg

• Boxed Weight=37,88 kg

• Box Size=85x185x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =900 mm

• Standard Entry2 =1750 mm

• Standard Entry Cross =900 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1375 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1733Kcal/h

• Heat Output 55/45-20° ?t=30°C=704 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1598 Watt

• Heat Output 90/70-20°?t=60°C=2014 Watt

• Heat Output 55/45-20°?t=30°C=819 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5453 Btu

• Heat Output 90/70-20°?t=60°C=6871 Btu

• Heat Output 55/45-20°?t=30°C=2792 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6952","36_0":"15187","34_0":"12442","35_0":"9697"},"variant_prices":{"37_0":17471.3,"36_0":18351.3,"34_0":18351.3,"35_0":18351.3},"variant_price_raws":{"37_0":17471.3,"36_0":18351.3,"34_0":18351.3,"35_0":18351.3},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"31766","36_0":"33366","34_0":"33366","35_0":"33366"},"variant_supplier_codes":{"37_0":"210V18000810B1PS","36_0":"210V18000810B1PM1","34_0":"210V18000810B1PM3","35_0":"210V18000810B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 1800x810 White ∆t50°C=1374 Kcal/h | ∆t60°C= 1732 Kcal/h | 11 Pipes | Heats 9-27 m2

38,119.20 TL

20,965.56 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6953","36_0":"15188","34_0":"12443","35_0":"9698"},"variant_prices":{"37_0":21839.125,"36_0":22719.125,"34_0":22719.125,"35_0":22719.125},"variant_price_raws":{"37_0":21839.125,"36_0":22719.125,"34_0":22719.125,"35_0":22719.125},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"39707.5","36_0":"41307.5","34_0":"41307.5","35_0":"41307.5"},"variant_supplier_codes":{"37_0":"210V18000810B2TS","36_0":"210V18000810B2TM1","34_0":"210V18000810B2TM3","35_0":"210V18000810B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 1800x810 Anthracite ∆t50°C=1374 Kcal/h | ∆t60°C= 1732 Kcal/h | 11 Pipes | Heats 9-27 m2

47,649.00 TL

26,206.95 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6954","36_0":"15189","34_0":"12444","35_0":"9699"},"variant_prices":{"37_0":21839.125,"36_0":22719.125,"34_0":22719.125,"35_0":22719.125},"variant_price_raws":{"37_0":21839.125,"36_0":22719.125,"34_0":22719.125,"35_0":22719.125},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"39707.5","36_0":"41307.5","34_0":"41307.5","35_0":"41307.5"},"variant_supplier_codes":{"37_0":"210V18000810B3MS","36_0":"210V18000810B3MM1","34_0":"210V18000810B3MM3","35_0":"210V18000810B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 1800x810 Matte Black ∆t50°C=1374 Kcal/h | ∆t60°C= 1732 Kcal/h | 11 Pipes | Heats 9-27 m2

47,649.00 TL

26,206.95 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6955","36_0":"15190","34_0":"12445","35_0":"9700"},"variant_prices":{"37_0":26326.3,"36_0":27206.3,"34_0":27206.3,"35_0":27206.3},"variant_price_raws":{"37_0":26326.3,"36_0":27206.3,"34_0":27206.3,"35_0":27206.3},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"47866","36_0":"49466","34_0":"49466","35_0":"49466"},"variant_supplier_codes":{"37_0":"210V18000810K6FS","36_0":"210V18000810K6FM1","34_0":"210V18000810K6FM3","35_0":"210V18000810K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 1800x810 Wood Effect ∆t50°C=1374 Kcal/h | ∆t60°C= 1732 Kcal/h | 11 Pipes | Heats 9-27 m2

57,439.20 TL

31,591.56 TL
