%45 Discount

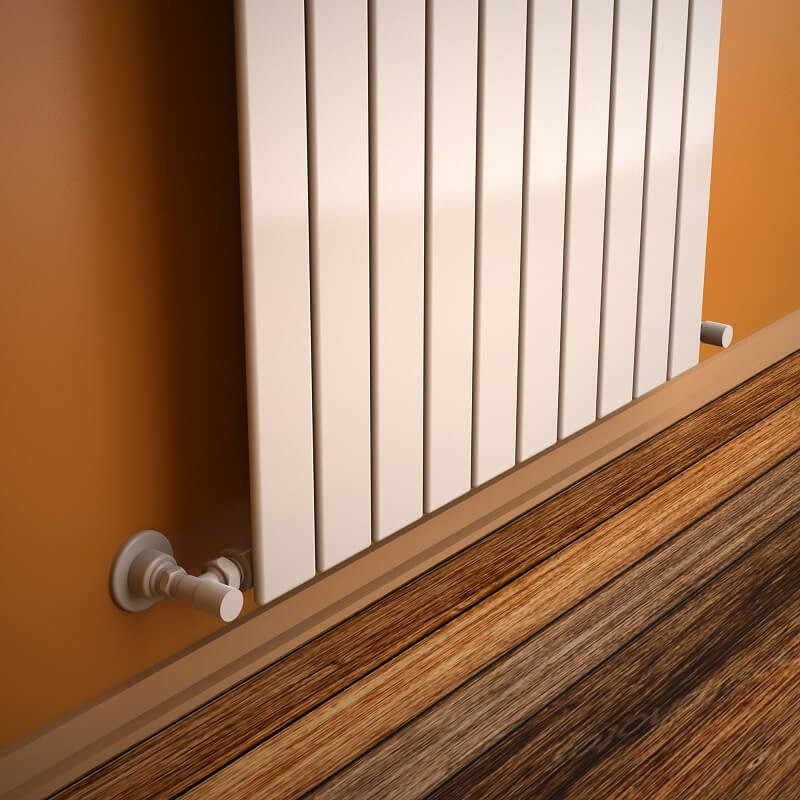

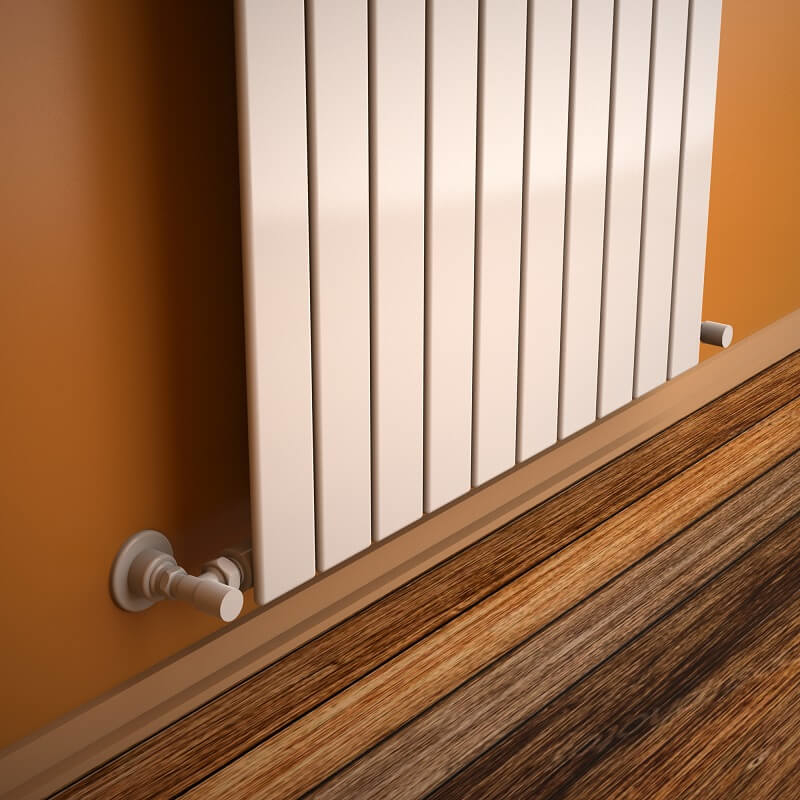

Type 10V Decorative Radiator 2000x736 White

Name: Type 10V Decorative Radiator 2000x736 White
SKU: 210V20000736B1PS
Price: 21056.64 TRY
Availability: InStock

Product Code : 210V20000736B1PS

Guarantee : 10 Year

TAXES Included

Price

38,284.80 TL

Discounted Price

21,056.64 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=2000 mm

• Width=736 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=10 Pieces

• Total Number of Profiles (Front + Back)=10+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,2 lt

• Weight=33,3 kg

• Boxed Weight=38,02 kg

• Box Size=78x205x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =826 mm

• Standard Entry2 =1950 mm

• Standard Entry Cross =826 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1360 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1714Kcal/h

• Heat Output 55/45-20° ?t=30°C=697 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1581 Watt

• Heat Output 90/70-20°?t=60°C=1993 Watt

• Heat Output 55/45-20°?t=30°C=810 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5395 Btu

• Heat Output 90/70-20°?t=60°C=6798 Btu

• Heat Output 55/45-20°?t=30°C=2763 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6984","36_0":"15219","34_0":"12474","35_0":"9729"},"variant_prices":{"37_0":17547.2,"36_0":18427.2,"34_0":18427.2,"35_0":18427.2},"variant_price_raws":{"37_0":17547.2,"36_0":18427.2,"34_0":18427.2,"35_0":18427.2},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"31904","36_0":"33504","34_0":"33504","35_0":"33504"},"variant_supplier_codes":{"37_0":"210V20000736B1PS","36_0":"210V20000736B1PM1","34_0":"210V20000736B1PM3","35_0":"210V20000736B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 2000x736 White ∆t50°C=1360 Kcal/h | ∆t60°C= 1714 Kcal/h | 10 Pipes | Heats 9-27 m2

38,284.80 TL

21,056.64 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6985","36_0":"15220","34_0":"12475","35_0":"9730"},"variant_prices":{"37_0":21934,"36_0":22814,"34_0":22814,"35_0":22814},"variant_price_raws":{"37_0":21934,"36_0":22814,"34_0":22814,"35_0":22814},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"39880","36_0":"41480","34_0":"41480","35_0":"41480"},"variant_supplier_codes":{"37_0":"210V20000736B2TS","36_0":"210V20000736B2TM1","34_0":"210V20000736B2TM3","35_0":"210V20000736B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 2000x736 Anthracite ∆t50°C=1360 Kcal/h | ∆t60°C= 1714 Kcal/h | 10 Pipes | Heats 9-27 m2

47,856.00 TL

26,320.80 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6986","36_0":"15221","34_0":"12476","35_0":"9731"},"variant_prices":{"37_0":21934,"36_0":22814,"34_0":22814,"35_0":22814},"variant_price_raws":{"37_0":21934,"36_0":22814,"34_0":22814,"35_0":22814},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"39880","36_0":"41480","34_0":"41480","35_0":"41480"},"variant_supplier_codes":{"37_0":"210V20000736B3MS","36_0":"210V20000736B3MM1","34_0":"210V20000736B3MM3","35_0":"210V20000736B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 2000x736 Matte Black ∆t50°C=1360 Kcal/h | ∆t60°C= 1714 Kcal/h | 10 Pipes | Heats 9-27 m2

47,856.00 TL

26,320.80 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6987","36_0":"15222","34_0":"12477","35_0":"9732"},"variant_prices":{"37_0":26463.25,"36_0":27343.25,"34_0":27343.25,"35_0":27343.25},"variant_price_raws":{"37_0":26463.25,"36_0":27343.25,"34_0":27343.25,"35_0":27343.25},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"48115","36_0":"49715","34_0":"49715","35_0":"49715"},"variant_supplier_codes":{"37_0":"210V20000736K6FS","36_0":"210V20000736K6FM1","34_0":"210V20000736K6FM3","35_0":"210V20000736K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 2000x736 Wood Effect ∆t50°C=1360 Kcal/h | ∆t60°C= 1714 Kcal/h | 10 Pipes | Heats 9-27 m2

57,738.00 TL

31,755.90 TL
