TECHNICAL INFORMATION

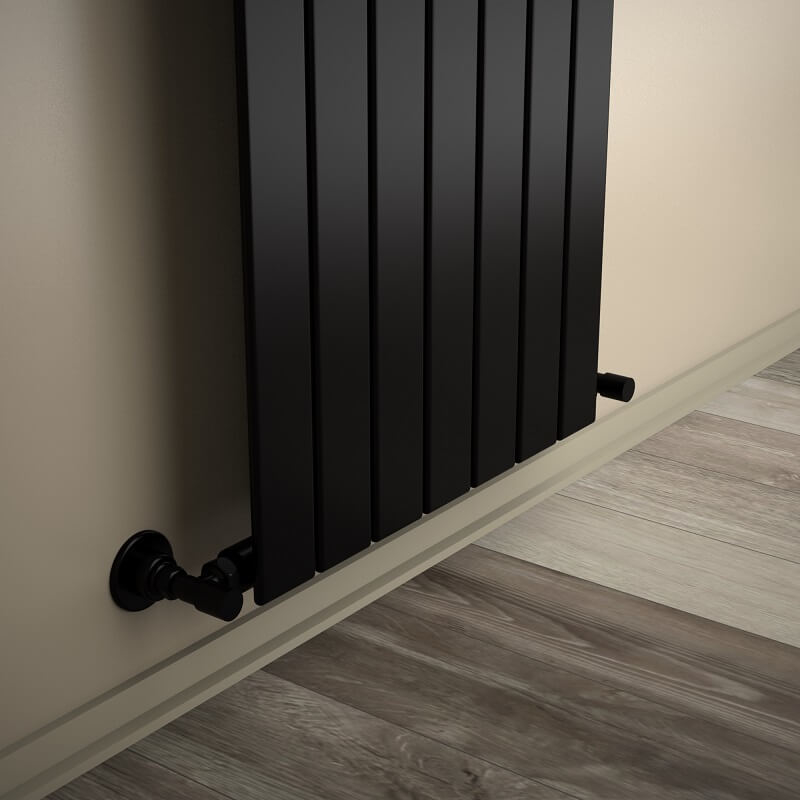

• Model = 10V
• Material =Steel
• Height=2100 mm
• Width=514 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=7 Pieces
• Total Number of Profiles (Front + Back)=7+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=8,2 lt
• Weight=24,4 kg
• Boxed Weight=27,94 kg
• Box Size=56x215x8,6 cmTAPPING OPTIONS
• Standard Entry1 =604 mm
• Standard Entry2 =2050 mm
• Standard Entry Cross =604 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 989 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1247Kcal/h
• Heat Output 55/45-20° ?t=30°C=507 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1150 Watt
• Heat Output 90/70-20°?t=60°C=1449 Watt
• Heat Output 55/45-20°?t=30°C=589 Watt
Btu
• Heat Output 75/65-20°?t=50°C=3924 Btu
• Heat Output 90/70-20°?t=60°C=4945 Btu
• Heat Output 55/45-20°?t=30°C=2010 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-
%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 2100x514 White ∆t50°C=989 Kcal/h | ∆t60°C= 1247 Kcal/h | 7 Pipes | Heats 7-19 m2
-
%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 2100x514 Anthracite ∆t50°C=989 Kcal/h | ∆t60°C= 1247 Kcal/h | 7 Pipes | Heats 7-19 m2
-
%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 2100x514 Matte Black ∆t50°C=989 Kcal/h | ∆t60°C= 1247 Kcal/h | 7 Pipes | Heats 7-19 m2
-
%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 2100x514 Wood Effect ∆t50°C=989 Kcal/h | ∆t60°C= 1247 Kcal/h | 7 Pipes | Heats 7-19 m2
