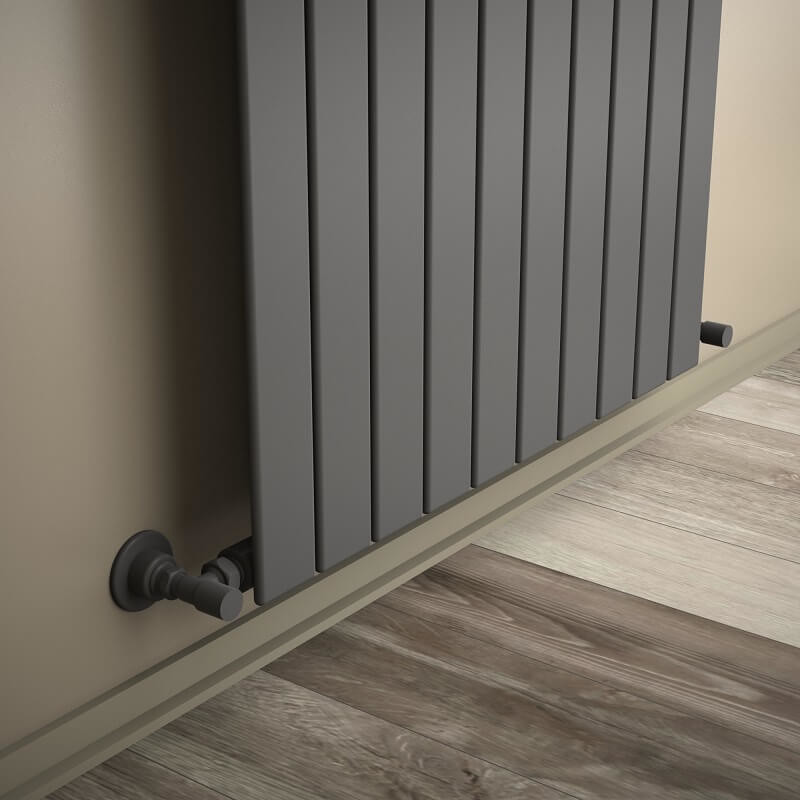

Type 10V Decorative Radiator 2200x736 Anthracite

Product Code : 210V22000736B2TS
Guarantee : 10 Year
TAXES Included
Price
:
51,783.00 TL
Discounted Price
:
28,480.65 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =2200 mm

    • Width=736 mm

    • Color/Coating=Anthracite

    • Number of Sections=10 Pieces

    • Total Number of Profiles (Front + Back)=10+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=12,2 lt

    • Weight=36,4 kg

    • Boxed Weight    =41,56 kg

    • Box Size=78x225x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =826 mm

    • Standard Entry2 =2150 mm

    • Standard Entry Cross =826 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1465 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1846Kcal/h

    • Heat Output 55/45-20° ?t=30°C=751 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1703 Watt

    • Heat Output 90/70-20°?t=60°C=2146 Watt

    • Heat Output 55/45-20°?t=30°C=872 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5811 Btu

    • Heat Output 90/70-20°?t=60°C=7322 Btu

    • Heat Output 55/45-20°?t=30°C=2976 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri
Other Colors
  • %45 Discount - Type 10V Decorative Radiator 2200x736 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 2200x736 White ∆t50°C=1465 Kcal/h | ∆t60°C= 1847 Kcal/h | 10 Pipes | Heats 10-29 m2
    41,426.40 TL
    22,784.52 TL
  • %45 Discount - Type 10V Decorative Radiator 2200x736 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 2200x736 Anthracite ∆t50°C=1465 Kcal/h | ∆t60°C= 1847 Kcal/h | 10 Pipes | Heats 10-29 m2
    51,783.00 TL
    28,480.65 TL
  • %45 Discount - Type 10V Decorative Radiator 2200x736 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 2200x736 Matte Black ∆t50°C=1465 Kcal/h | ∆t60°C= 1847 Kcal/h | 10 Pipes | Heats 10-29 m2
    51,783.00 TL
    28,480.65 TL
  • %45 Discount - Type 10V Decorative Radiator 2200x736 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 2200x736 Wood Effect ∆t50°C=1465 Kcal/h | ∆t60°C= 1847 Kcal/h | 10 Pipes | Heats 10-29 m2
    62,281.20 TL
    34,254.66 TL
