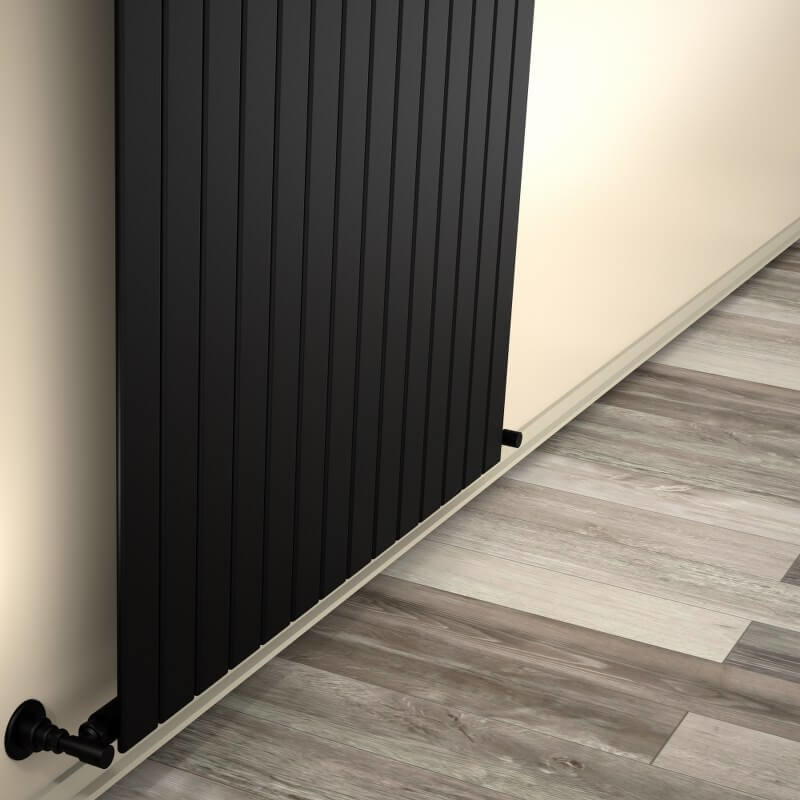

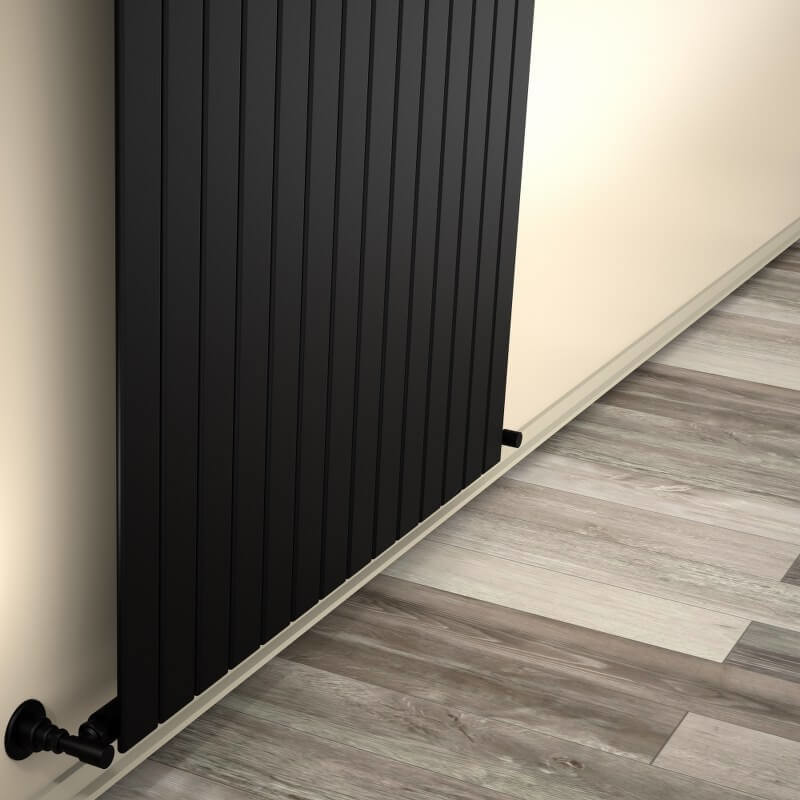

Type 10V Decorative Radiator 400x1032 Matte Black

Product Code : 210V04001032B3MS
Guarantee : 10 Year
TAXES Included
Price
:
21,499.50 TL
Discounted Price
:
11,824.73 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
20.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =400 mm

    • Width=1032 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=14 Pieces

    • Total Number of Profiles (Front + Back)=14+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=4,6 lt

    • Weight=11,6 kg

    • Boxed Weight    =13,14 kg

    • Box Size=108x45x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1122 mm

    • Standard Entry2 =350 mm

    • Standard Entry Cross =1122 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 455 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=574Kcal/h

    • Heat Output 55/45-20° ?t=30°C=233 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=529 Watt

    • Heat Output 90/70-20°?t=60°C=667 Watt

    • Heat Output 55/45-20°?t=30°C=271 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=1805 Btu

    • Heat Output 90/70-20°?t=60°C=2275 Btu

    • Heat Output 55/45-20°?t=30°C=925 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors

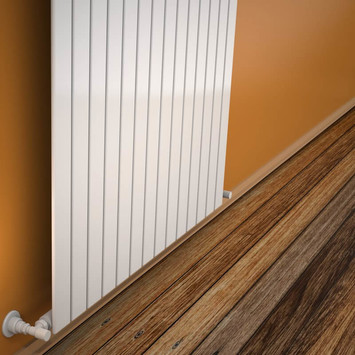

  • %45 Discount - Type 10V Decorative Radiator 400x1032 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x1032 White ∆t50°C=455 Kcal/h | ∆t60°C= 574 Kcal/h | 14 Pipes | Heats 3-9 m2
    17,199.60 TL
    9,459.78 TL

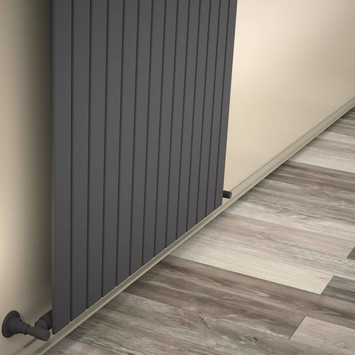

  • %45 Discount - Type 10V Decorative Radiator 400x1032 Anthracite
