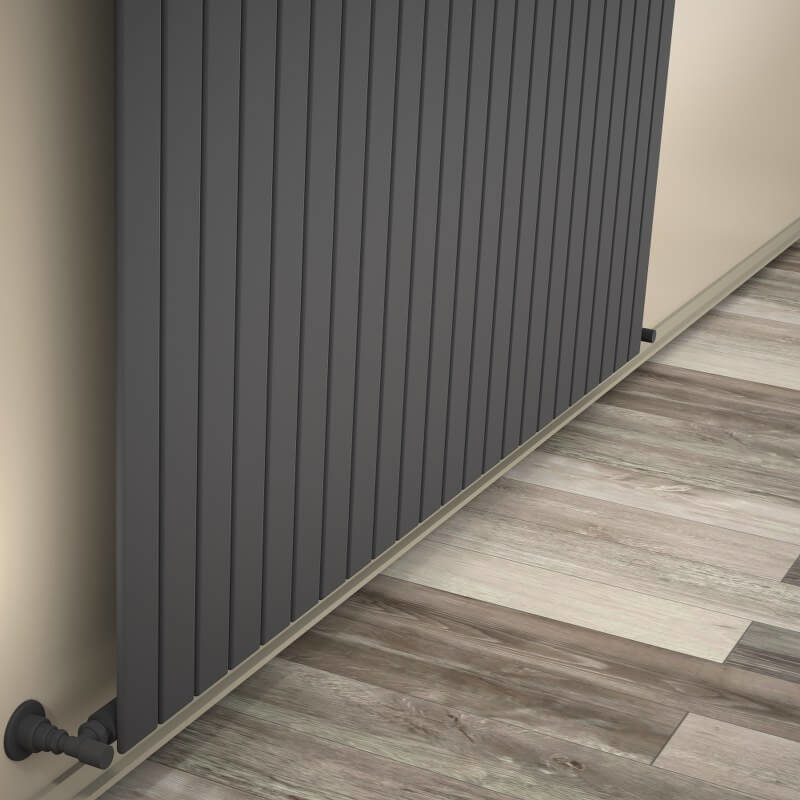

Type 10V Decorative Radiator 400x1698 Anthracite

Product Code : 210V04001698B2TS
Guarantee : 10 Year
TAXES Included
Price
:
31,525.50 TL
Discounted Price
:
17,339.03 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
23.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =400 mm

    • Width=1698 mm

    • Color/Coating=Anthracite

    • Number of Sections=23 Pieces

    • Total Number of Profiles (Front + Back)=23+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=7,5 lt

    • Weight=19 kg

    • Boxed Weight    =21,34 kg

    • Box Size=174x45x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1788 mm

    • Standard Entry2 =350 mm

    • Standard Entry Cross =1788 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 747 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=942Kcal/h

    • Heat Output 55/45-20° ?t=30°C=383 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=868 Watt

    • Heat Output 90/70-20°?t=60°C=1094 Watt

    • Heat Output 55/45-20°?t=30°C=445 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=2962 Btu

    • Heat Output 90/70-20°?t=60°C=3733 Btu

    • Heat Output 55/45-20°?t=30°C=1517 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 10V Decorative Radiator 400x1698 White
    AKS Seçenekleri

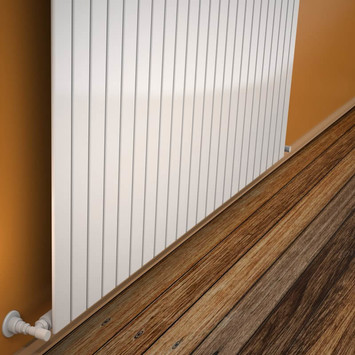

    Type 10V Decorative Radiator 400x1698 White ∆t50°C=746 Kcal/h | ∆t60°C= 940 Kcal/h | 23 Pipes | Heats 5-15 m2
