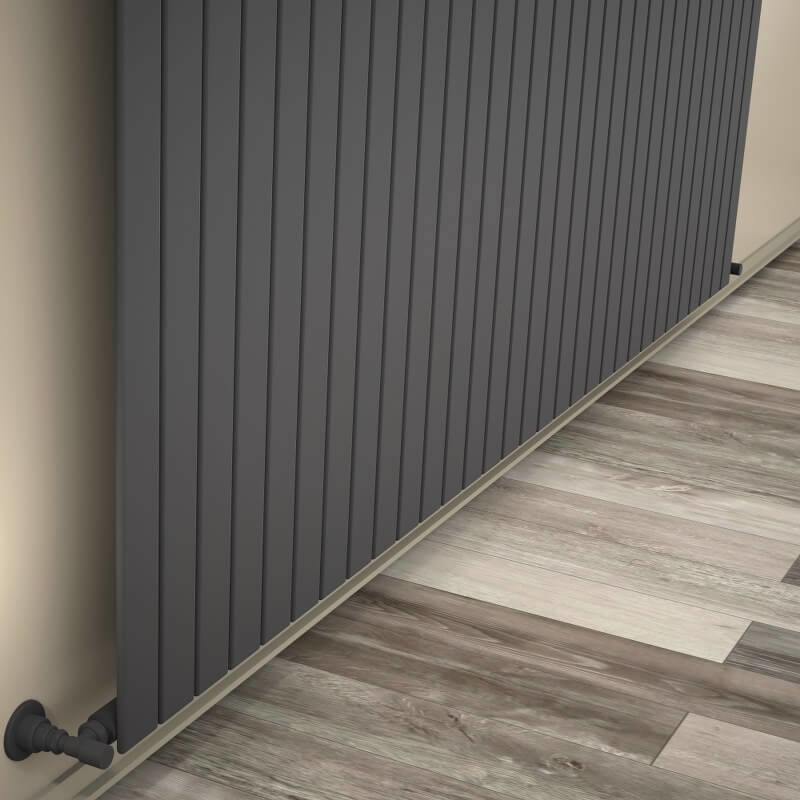

Type 10V Decorative Radiator 400x2290 Anthracite

Product Code : 210V04002290B2TS
Guarantee : 10 Year
TAXES Included
Price
:
40,414.50 TL
Discounted Price
:
22,227.98 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
20.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =400 mm

    • Width=2290 mm

    • Color/Coating=Anthracite

    • Number of Sections=31 Pieces

    • Total Number of Profiles (Front + Back)=31+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=10,1 lt

    • Weight=25,6 kg

    • Boxed Weight    =28,65 kg

    • Box Size=233x45x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =2380 mm

    • Standard Entry2 =350 mm

    • Standard Entry Cross =2380 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1007 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1269Kcal/h

    • Heat Output 55/45-20° ?t=30°C=516 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1170 Watt

    • Heat Output 90/70-20°?t=60°C=1475 Watt

    • Heat Output 55/45-20°?t=30°C=600 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=3993 Btu

    • Heat Output 90/70-20°?t=60°C=5032 Btu

    • Heat Output 55/45-20°?t=30°C=2045 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors

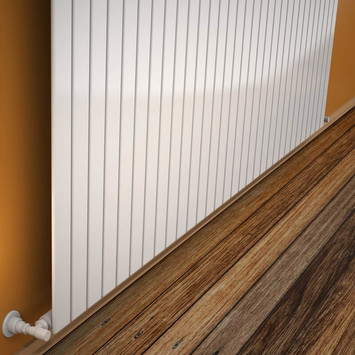

  • %45 Discount - Type 10V Decorative Radiator 400x2290 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x2290 White ∆t50°C=1006 Kcal/h | ∆t60°C= 1268 Kcal/h | 31 Pipes | Heats 7-20 m2
    32,331.60 TL
    17,782.38 TL

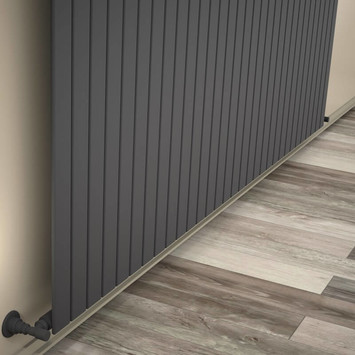

  • %45 Discount - Type 10V Decorative Radiator 400x2290 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x2290 Anthracite ∆t50°C=1006 Kcal/h | ∆t60°C= 1268 Kcal/h | 31 Pipes | Heats 7-20 m2
    40,414.50 TL
    22,227.98 TL
  • %45 Discount - Type 10V Decorative Radiator 400x2290 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x2290 Matte Black ∆t50°C=1006 Kcal/h | ∆t60°C= 1268 Kcal/h | 31 Pipes | Heats 7-20 m2
    40,414.50 TL
    22,227.98 TL
  • %45 Discount - Type 10V Decorative Radiator 400x2290 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x2290 Wood Effect ∆t50°C=1006 Kcal/h | ∆t60°C= 1268 Kcal/h | 31 Pipes | Heats 7-20 m2
    46,491.60 TL
    25,570.38 TL
