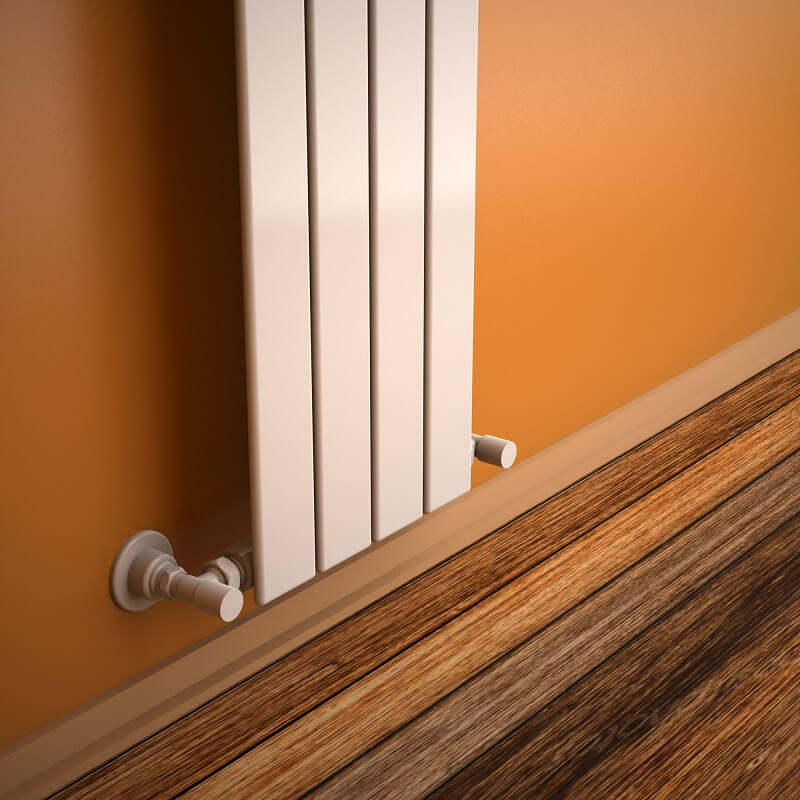

Type 10V Decorative Radiator 400x292 White

Name: Type 10V Decorative Radiator 400x292 White
SKU: 210V04000292B1PS
Price: 4593.60 TRY
Availability: InStock

Product Code : 210V04000292B1PS

Guarantee : 10 Year

TAXES Included

Price

8,352.00 TL

Discounted Price

4,593.60 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=400 mm

• Width=292 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=1,3 lt

• Weight=3,4 kg

• Boxed Weight=4,06 kg

• Box Size=34x45x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =382 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =382 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 130 Kcal/h

• Heat Output 90/70-20° ?t=60°C=164Kcal/h

• Heat Output 55/45-20° ?t=30°C=67 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=151 Watt

• Heat Output 90/70-20°?t=60°C=191 Watt

• Heat Output 55/45-20°?t=30°C=78 Watt

Btu

• Heat Output 75/65-20°?t=50°C=516 Btu

• Heat Output 90/70-20°?t=60°C=651 Btu

• Heat Output 55/45-20°?t=30°C=265 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6325","36_0":"14560","34_0":"11815","35_0":"9070"},"variant_prices":{"37_0":3828,"36_0":4708,"34_0":4708,"35_0":4708},"variant_price_raws":{"37_0":3828,"36_0":4708,"34_0":4708,"35_0":4708},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"6960","36_0":"8560","34_0":"8560","35_0":"8560"},"variant_supplier_codes":{"37_0":"210V04000292B1PS","36_0":"210V04000292B1PM1","34_0":"210V04000292B1PM3","35_0":"210V04000292B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"99","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 400x292 White ∆t50°C=130 Kcal/h | ∆t60°C= 164 Kcal/h | 4 Pipes | Heats 1-3 m2

8,352.00 TL

4,593.60 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6326","36_0":"14561","34_0":"11816","35_0":"9071"},"variant_prices":{"37_0":4785,"36_0":5665,"34_0":5665,"35_0":5665},"variant_price_raws":{"37_0":4785,"36_0":5665,"34_0":5665,"35_0":5665},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"8700","36_0":"10300","34_0":"10300","35_0":"10300"},"variant_supplier_codes":{"37_0":"210V04000292B2TS","36_0":"210V04000292B2TM1","34_0":"210V04000292B2TM3","35_0":"210V04000292B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"99","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 400x292 Anthracite ∆t50°C=130 Kcal/h | ∆t60°C= 164 Kcal/h | 4 Pipes | Heats 1-3 m2

10,440.00 TL

5,742.00 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6327","36_0":"14562","34_0":"11817","35_0":"9072"},"variant_prices":{"37_0":4785,"36_0":5665,"34_0":5665,"35_0":5665},"variant_price_raws":{"37_0":4785,"36_0":5665,"34_0":5665,"35_0":5665},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"8700","36_0":"10300","34_0":"10300","35_0":"10300"},"variant_supplier_codes":{"37_0":"210V04000292B3MS","36_0":"210V04000292B3MM1","34_0":"210V04000292B3MM3","35_0":"210V04000292B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 400x292 Matte Black ∆t50°C=130 Kcal/h | ∆t60°C= 164 Kcal/h | 4 Pipes | Heats 1-3 m2

10,440.00 TL

5,742.00 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6328","36_0":"14563","34_0":"11818","35_0":"9073"},"variant_prices":{"37_0":6831,"36_0":7711,"34_0":7711,"35_0":7711},"variant_price_raws":{"37_0":6831,"36_0":7711,"34_0":7711,"35_0":7711},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"12420","36_0":"14020","34_0":"14020","35_0":"14020"},"variant_supplier_codes":{"37_0":"210V04000292K6FS","36_0":"210V04000292K6FM1","34_0":"210V04000292K6FM3","35_0":"210V04000292K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 400x292 Wood Effect ∆t50°C=130 Kcal/h | ∆t60°C= 164 Kcal/h | 4 Pipes | Heats 1-3 m2

14,904.00 TL

8,197.20 TL
