TECHNICAL INFORMATION
• Model = 10V
• Material =Steel
• Height=400 mm
• Width=514 mm
• Color/Coating=Bright White RAL9016
• Number of Sections=7 Pieces
• Total Number of Profiles (Front + Back)=7+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=2,3 lt
• Weight=5,9 kg
• Boxed Weight=6,82 kg
• Box Size=56x45x8,6 cmTAPPING OPTIONS
• Standard Entry1 =604 mm
• Standard Entry2 =350 mm
• Standard Entry Cross =604 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 228 Kcal/h
• Heat Output 90/70-20° ?t=60°C=288Kcal/h
• Heat Output 55/45-20° ?t=30°C=117 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=264 Watt
• Heat Output 90/70-20°?t=60°C=333 Watt
• Heat Output 55/45-20°?t=30°C=136 Watt
Btu
• Heat Output 75/65-20°?t=50°C=901 Btu
• Heat Output 90/70-20°?t=60°C=1136 Btu
• Heat Output 55/45-20°?t=30°C=462 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

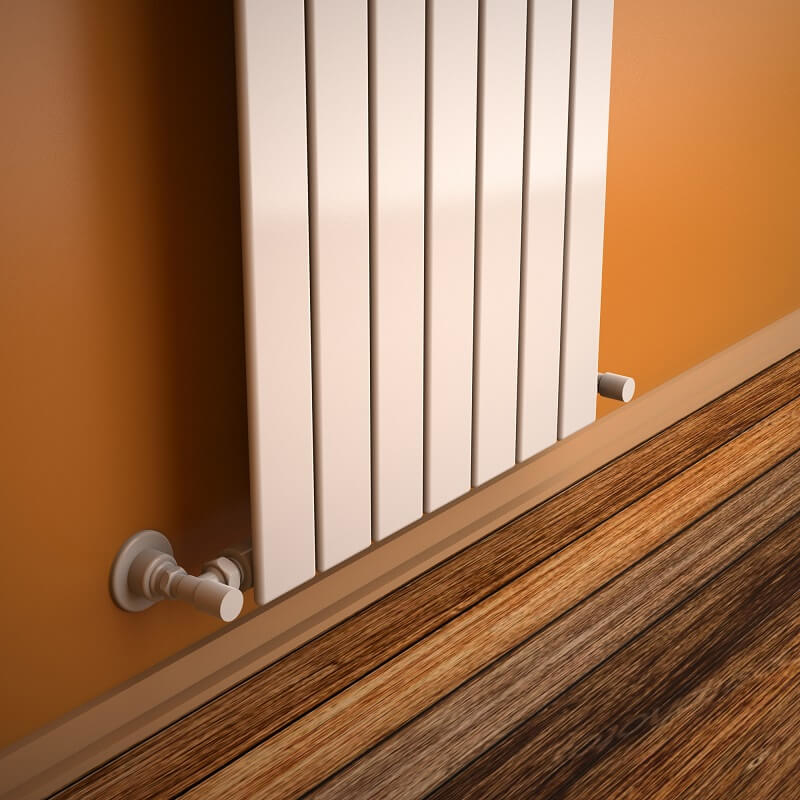

%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 400x514 White ∆t50°C=227 Kcal/h | ∆t60°C= 286 Kcal/h | 7 Pipes | Heats 2-5 m2
-

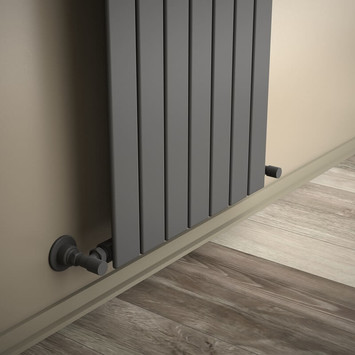

%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 400x514 Anthracite ∆t50°C=227 Kcal/h | ∆t60°C= 286 Kcal/h | 7 Pipes | Heats 2-5 m2
-
