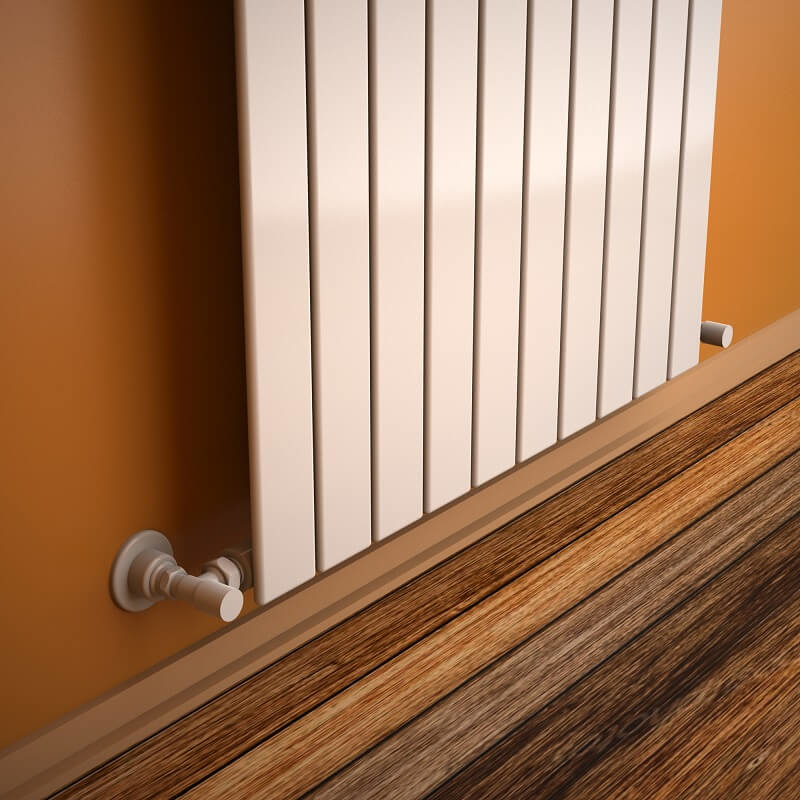

Type 10V Decorative Radiator 400x736 White

Name: Type 10V Decorative Radiator 400x736 White
SKU: 210V04000736B1PS
Price: 7504.20 TRY
Availability: InStock

Product Code : 210V04000736B1PS

Guarantee : 10 Year

TAXES Included

Price

13,644.00 TL

Discounted Price

7,504.20 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=400 mm

• Width=736 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=10 Pieces

• Total Number of Profiles (Front + Back)=10+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=3,3 lt

• Weight=8,3 kg

• Boxed Weight=9,49 kg

• Box Size=78x45x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =826 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =826 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 326 Kcal/h

• Heat Output 90/70-20° ?t=60°C=411Kcal/h

• Heat Output 55/45-20° ?t=30°C=167 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=378 Watt

• Heat Output 90/70-20°?t=60°C=477 Watt

• Heat Output 55/45-20°?t=30°C=194 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1290 Btu

• Heat Output 90/70-20°?t=60°C=1626 Btu

• Heat Output 55/45-20°?t=30°C=661 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
