%45 Discount

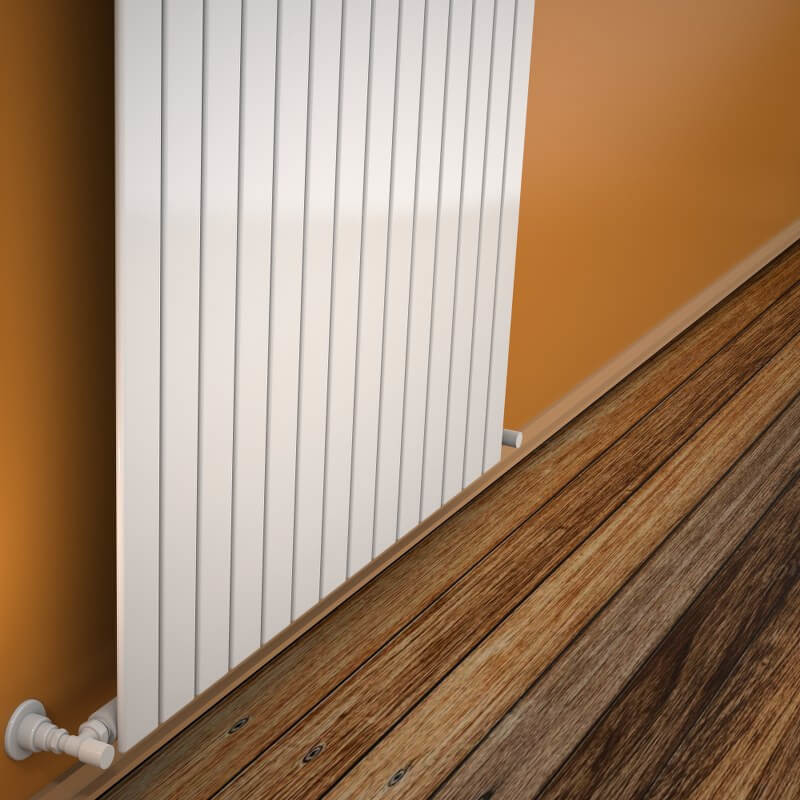

Type 10V Decorative Radiator 500x1032 White

Name: Type 10V Decorative Radiator 500x1032 White
SKU: 210V05001032B1PS
Price: 10778.46 TRY
Availability: InStock

Product Code : 210V05001032B1PS

Guarantee : 10 Year

TAXES Included

Price

19,597.20 TL

Discounted Price

10,778.46 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=500 mm

• Width=1032 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=14 Pieces

• Total Number of Profiles (Front + Back)=14+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=5,3 lt

• Weight=13,8 kg

• Boxed Weight=15,65 kg

• Box Size=108x55x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =1122 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =1122 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 561 Kcal/h

• Heat Output 90/70-20° ?t=60°C=707Kcal/h

• Heat Output 55/45-20° ?t=30°C=288 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=652 Watt

• Heat Output 90/70-20°?t=60°C=822 Watt

• Heat Output 55/45-20°?t=30°C=334 Watt

Btu

• Heat Output 75/65-20°?t=50°C=2225 Btu

• Heat Output 90/70-20°?t=60°C=2804 Btu

• Heat Output 55/45-20°?t=30°C=1140 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6493","36_0":"14728","34_0":"11983","35_0":"9238"},"variant_prices":{"37_0":8982.05,"36_0":9862.05,"34_0":9862.05,"35_0":9862.05},"variant_price_raws":{"37_0":8982.05,"36_0":9862.05,"34_0":9862.05,"35_0":9862.05},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"16331","36_0":"17931","34_0":"17931","35_0":"17931"},"variant_supplier_codes":{"37_0":"210V05001032B1PS","36_0":"210V05001032B1PM1","34_0":"210V05001032B1PM3","35_0":"210V05001032B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 500x1032 White ∆t50°C=561 Kcal/h | ∆t60°C= 707 Kcal/h | 14 Pipes | Heats 4-11 m2

19,597.20 TL

10,778.46 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6494","36_0":"14729","34_0":"11984","35_0":"9239"},"variant_prices":{"37_0":11227.5625,"36_0":12107.5625,"34_0":12107.5625,"35_0":12107.5625},"variant_price_raws":{"37_0":11227.5625,"36_0":12107.5625,"34_0":12107.5625,"35_0":12107.5625},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"20413.75","36_0":"22013.75","34_0":"22013.75","35_0":"22013.75"},"variant_supplier_codes":{"37_0":"210V05001032B2TS","36_0":"210V05001032B2TM1","34_0":"210V05001032B2TM3","35_0":"210V05001032B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 500x1032 Anthracite ∆t50°C=561 Kcal/h | ∆t60°C= 707 Kcal/h | 14 Pipes | Heats 4-11 m2

24,496.50 TL

13,473.08 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6495","36_0":"14730","34_0":"11985","35_0":"9240"},"variant_prices":{"37_0":11227.5625,"36_0":12107.5625,"34_0":12107.5625,"35_0":12107.5625},"variant_price_raws":{"37_0":11227.5625,"36_0":12107.5625,"34_0":12107.5625,"35_0":12107.5625},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"20413.75","36_0":"22013.75","34_0":"22013.75","35_0":"22013.75"},"variant_supplier_codes":{"37_0":"210V05001032B3MS","36_0":"210V05001032B3MM1","34_0":"210V05001032B3MM3","35_0":"210V05001032B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 500x1032 Matte Black ∆t50°C=561 Kcal/h | ∆t60°C= 707 Kcal/h | 14 Pipes | Heats 4-11 m2

24,496.50 TL

13,473.08 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6496","36_0":"14731","34_0":"11986","35_0":"9241"},"variant_prices":{"37_0":13726.9,"36_0":14606.9,"34_0":14606.9,"35_0":14606.9},"variant_price_raws":{"37_0":13726.9,"36_0":14606.9,"34_0":14606.9,"35_0":14606.9},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"24958","36_0":"26558","34_0":"26558","35_0":"26558"},"variant_supplier_codes":{"37_0":"210V05001032K6FS","36_0":"210V05001032K6FM1","34_0":"210V05001032K6FM3","35_0":"210V05001032K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 500x1032 Wood Effect ∆t50°C=561 Kcal/h | ∆t60°C= 707 Kcal/h | 14 Pipes | Heats 4-11 m2

29,949.60 TL

16,472.28 TL
