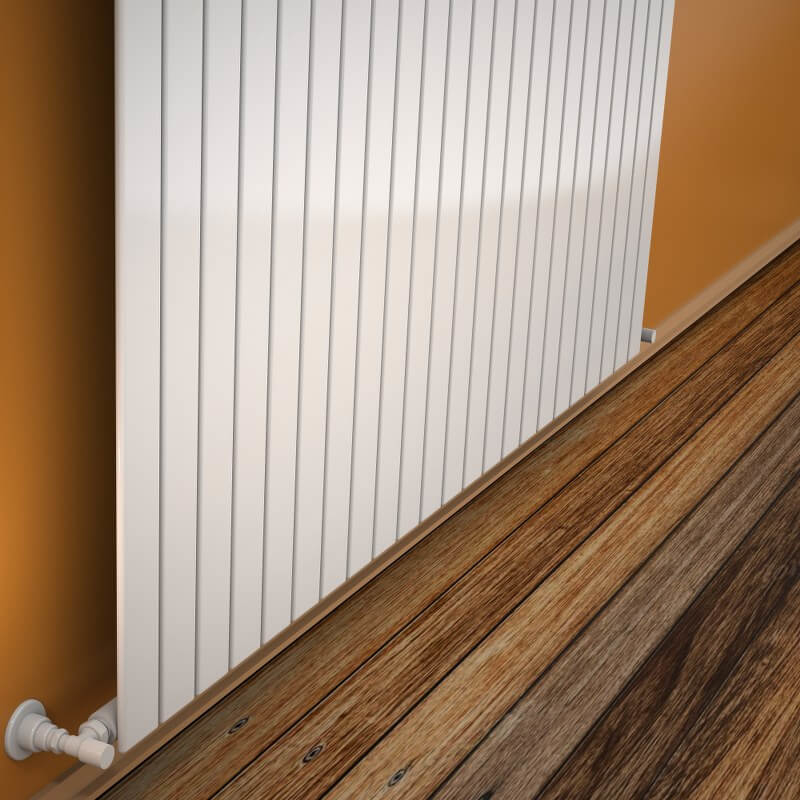

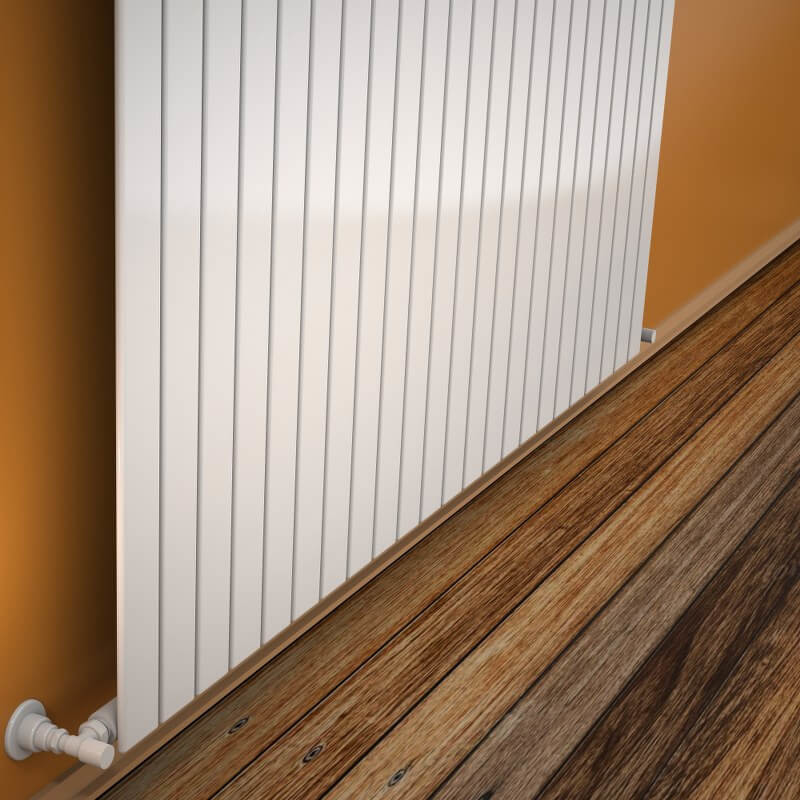

Type 10V Decorative Radiator 500x1698 White

Product Code : 210V05001698B1PS
Guarantee : 10 Year
TAXES Included
Price
:
29,106.00 TL
Discounted Price
:
16,008.30 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
24.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =500 mm

    • Width=1698 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=23 Pieces

    • Total Number of Profiles (Front + Back)=23+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=8,6 lt

    • Weight=22,6 kg

    • Boxed Weight    =25,45 kg

    • Box Size=174x55x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1788 mm

    • Standard Entry2 =450 mm

    • Standard Entry Cross =1788 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 922 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1162Kcal/h

    • Heat Output 55/45-20° ?t=30°C=473 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1072 Watt

    • Heat Output 90/70-20°?t=60°C=1351 Watt

    • Heat Output 55/45-20°?t=30°C=549 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=3658 Btu

    • Heat Output 90/70-20°?t=60°C=4610 Btu

    • Heat Output 55/45-20°?t=30°C=1873 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
