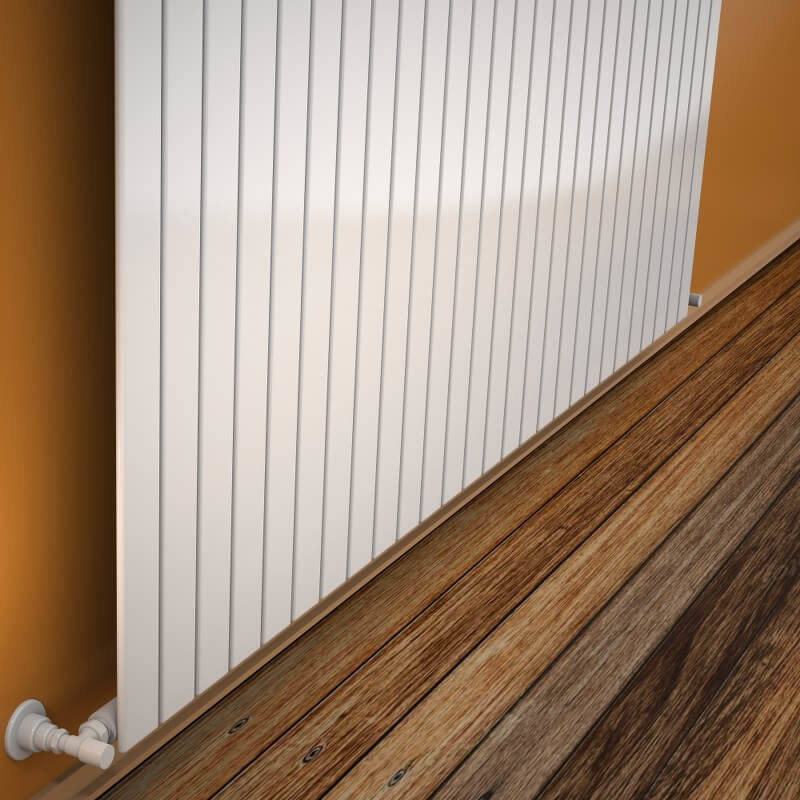

Type 10V Decorative Radiator 500x1920 White

Product Code : 210V05001920B1PS
Guarantee : 10 Year
TAXES Included
Price
:
32,331.60 TL
Discounted Price
:
17,782.38 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
24.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =500 mm

    • Width=1920 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=26 Pieces

    • Total Number of Profiles (Front + Back)=26+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=9,8 lt

    • Weight=25,6 kg

    • Boxed Weight    =28,78 kg

    • Box Size=196x55x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =2010 mm

    • Standard Entry2 =450 mm

    • Standard Entry Cross =2010 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1043 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1315Kcal/h

    • Heat Output 55/45-20° ?t=30°C=535 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1212 Watt

    • Heat Output 90/70-20°?t=60°C=1528 Watt

    • Heat Output 55/45-20°?t=30°C=621 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=4136 Btu

    • Heat Output 90/70-20°?t=60°C=5212 Btu

    • Heat Output 55/45-20°?t=30°C=2118 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 10V Decorative Radiator 500x1920 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 500x1920 White ∆t50°C=1042 Kcal/h | ∆t60°C= 1313 Kcal/h | 26 Pipes | Heats 7-20 m2
    32,331.60 TL
    17,782.38 TL

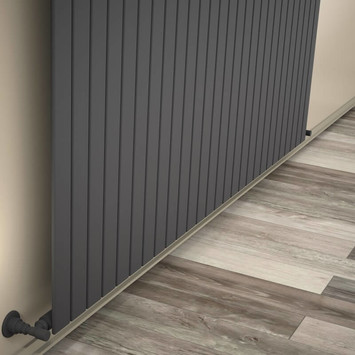

  • %45 Discount - Type 10V Decorative Radiator 500x1920 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 500x1920 Anthracite ∆t50°C=1042 Kcal/h | ∆t60°C= 1313 Kcal/h | 26 Pipes | Heats 7-20 m2
    40,414.50 TL
    22,227.98 TL

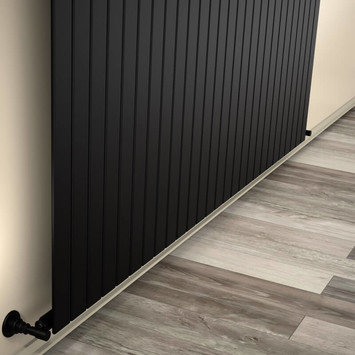

  • %45 Discount - Type 10V Decorative Radiator 500x1920 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 500x1920 Matte Black ∆t50°C=1042 Kcal/h | ∆t60°C= 1313 Kcal/h | 26 Pipes | Heats 7-20 m2
    40,414.50 TL
    22,227.98 TL
  • %45 Discount - Type 10V Decorative Radiator 500x1920 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 500x1920 Wood Effect ∆t50°C=1042 Kcal/h | ∆t60°C= 1313 Kcal/h | 26 Pipes | Heats 7-20 m2
    46,910.40 TL
    25,800.72 TL
