TECHNICAL INFORMATION
• Model = 10V
• Material =Steel
• Height=500 mm
• Width=1994 mm
• Color/Coating=Bright White RAL9016
• Number of Sections=27 Pieces
• Total Number of Profiles (Front + Back)=27+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=10,1 lt
• Weight=26,5 kg
• Boxed Weight=29,8 kg
• Box Size=204x55x8,6 cmTAPPING OPTIONS
• Standard Entry1 =2084 mm
• Standard Entry2 =450 mm
• Standard Entry Cross =2084 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1082 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1364Kcal/h
• Heat Output 55/45-20° ?t=30°C=554 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1258 Watt
• Heat Output 90/70-20°?t=60°C=1586 Watt
• Heat Output 55/45-20°?t=30°C=645 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4293 Btu
• Heat Output 90/70-20°?t=60°C=5410 Btu
• Heat Output 55/45-20°?t=30°C=2199 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-
%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 500x1994 White ∆t50°C=1082 Kcal/h | ∆t60°C= 1364 Kcal/h | 27 Pipes | Heats 7-21 m2
-

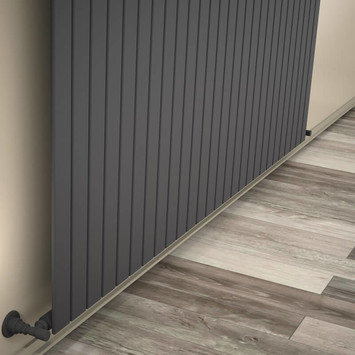

%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 500x1994 Anthracite ∆t50°C=1082 Kcal/h | ∆t60°C= 1364 Kcal/h | 27 Pipes | Heats 7-21 m2
-

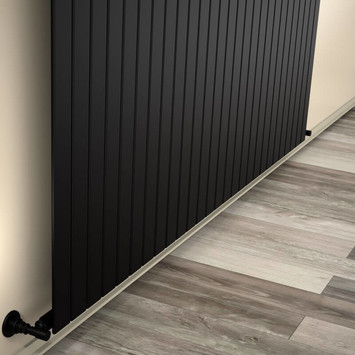

%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 500x1994 Matte Black ∆t50°C=1082 Kcal/h | ∆t60°C= 1364 Kcal/h | 27 Pipes | Heats 7-21 m2
-
