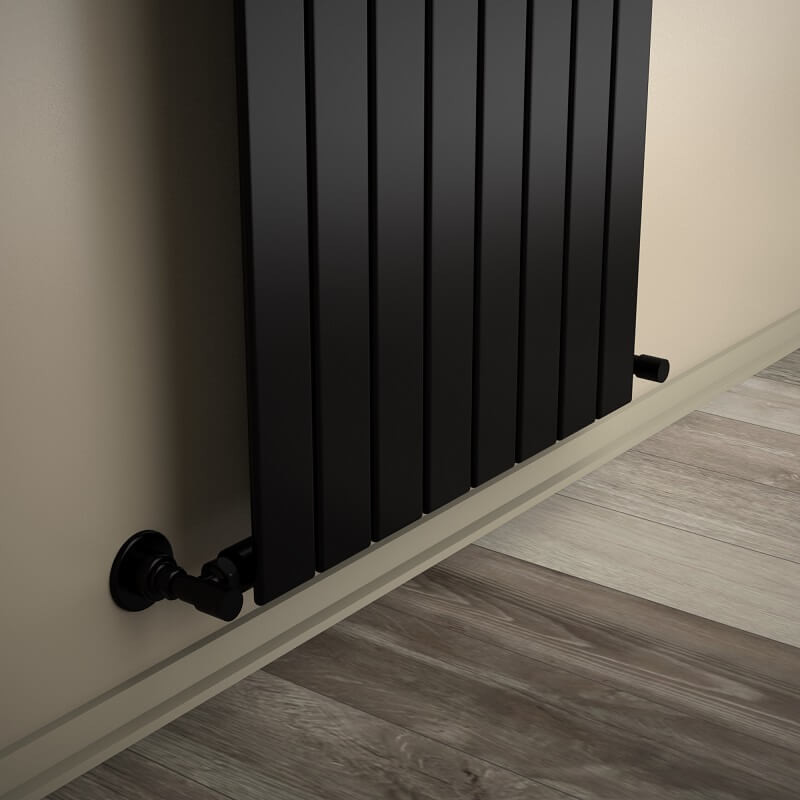

Type 10V Decorative Radiator 500x588 Matte Black

Product Code : 210V05000588B3MS
Guarantee : 10 Year
TAXES Included
Price
:
16,641.00 TL
Discounted Price
:
9,152.55 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
23.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =500 mm

    • Width=588 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=8 Pieces

    • Total Number of Profiles (Front + Back)=8+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=3 lt

    • Weight=7,9 kg

    • Boxed Weight    =9,09 kg

    • Box Size=63x55x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =678 mm

    • Standard Entry2 =450 mm

    • Standard Entry Cross =678 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 321 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=405Kcal/h

    • Heat Output 55/45-20° ?t=30°C=165 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=373 Watt

    • Heat Output 90/70-20°?t=60°C=470 Watt

    • Heat Output 55/45-20°?t=30°C=191 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=1273 Btu

    • Heat Output 90/70-20°?t=60°C=1604 Btu

    • Heat Output 55/45-20°?t=30°C=652 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors

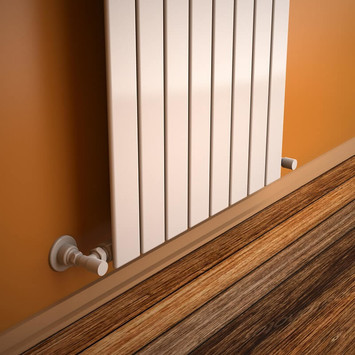

  • %45 Discount - Type 10V Decorative Radiator 500x588 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 500x588 White ∆t50°C=321 Kcal/h | ∆t60°C= 405 Kcal/h | 8 Pipes | Heats 3-7 m2
    13,312.80 TL
    7,322.04 TL

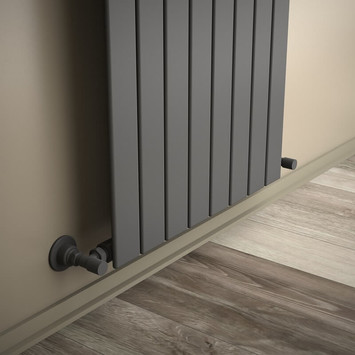

  • %45 Discount - Type 10V Decorative Radiator 500x588 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 500x588 Anthracite ∆t50°C=321 Kcal/h | ∆t60°C= 405 Kcal/h | 8 Pipes | Heats 3-7 m2
    16,641.00 TL
    9,152.55 TL
  • %45 Discount - Type 10V Decorative Radiator 500x588 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 500x588 Matte Black ∆t50°C=321 Kcal/h | ∆t60°C= 405 Kcal/h | 8 Pipes | Heats 3-7 m2
    16,641.00 TL
    9,152.55 TL
  • %45 Discount - Type 10V Decorative Radiator 500x588 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 500x588 Wood Effect ∆t50°C=321 Kcal/h | ∆t60°C= 405 Kcal/h | 8 Pipes | Heats 3-7 m2
    21,552.00 TL
    11,853.60 TL
