TECHNICAL INFORMATION
• Model = 10V
• Material =Steel
• Height=600 mm
• Width=1106 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=15 Pieces
• Total Number of Profiles (Front + Back)=15+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=6,4 lt
• Weight=17,1 kg
• Boxed Weight=19,4 kg
• Box Size=115x65x8,6 cmTAPPING OPTIONS
• Standard Entry1 =1196 mm
• Standard Entry2 =550 mm
• Standard Entry Cross =1196 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 713 Kcal/h
• Heat Output 90/70-20° ?t=60°C=899Kcal/h
• Heat Output 55/45-20° ?t=30°C=366 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=829 Watt
• Heat Output 90/70-20°?t=60°C=1045 Watt
• Heat Output 55/45-20°?t=30°C=425 Watt
Btu
• Heat Output 75/65-20°?t=50°C=2829 Btu
• Heat Output 90/70-20°?t=60°C=3565 Btu
• Heat Output 55/45-20°?t=30°C=1449 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

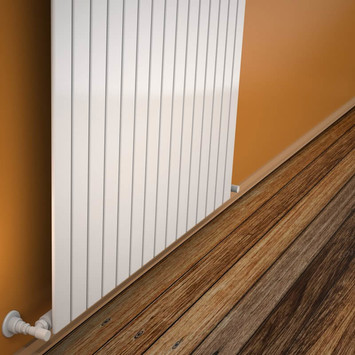

%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 600x1106 White ∆t50°C=713 Kcal/h | ∆t60°C= 899 Kcal/h | 15 Pipes | Heats 5-14 m2
-
%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 600x1106 Anthracite ∆t50°C=713 Kcal/h | ∆t60°C= 899 Kcal/h | 15 Pipes | Heats 5-14 m2
-

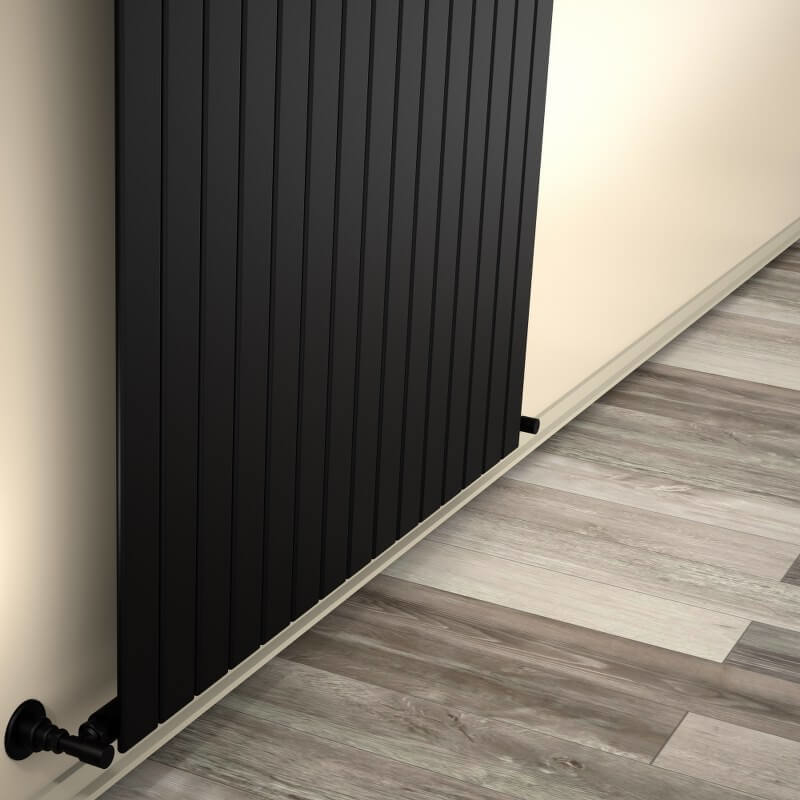

%45 DiscountAKS SeçenekleriType 10V Decorative Radiator 600x1106 Matte Black ∆t50°C=713 Kcal/h | ∆t60°C= 899 Kcal/h | 15 Pipes | Heats 5-14 m2
-
