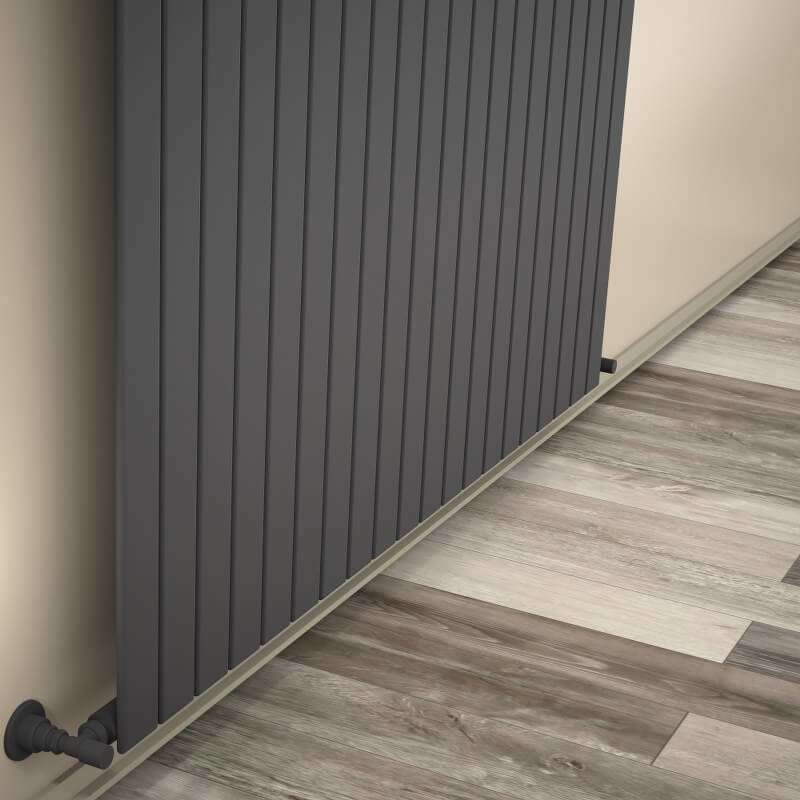

Type 10V Decorative Radiator 600x1476 Anthracite

Product Code : 210V06001476B2TS
Guarantee : 10 Year
TAXES Included
Price
:
36,693.00 TL
Discounted Price
:
20,181.15 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
23.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =600 mm

    • Width=1476 mm

    • Color/Coating=Anthracite

    • Number of Sections=20 Pieces

    • Total Number of Profiles (Front + Back)=20+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=8,5 lt

    • Weight=22,8 kg

    • Boxed Weight    =25,76 kg

    • Box Size=152x65x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1566 mm

    • Standard Entry2 =550 mm

    • Standard Entry Cross =1566 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 951 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1199Kcal/h

    • Heat Output 55/45-20° ?t=30°C=487 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1105 Watt

    • Heat Output 90/70-20°?t=60°C=1393 Watt

    • Heat Output 55/45-20°?t=30°C=566 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=3771 Btu

    • Heat Output 90/70-20°?t=60°C=4752 Btu

    • Heat Output 55/45-20°?t=30°C=1931 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 10V Decorative Radiator 600x1476 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 600x1476 White ∆t50°C=950 Kcal/h | ∆t60°C= 1198 Kcal/h | 20 Pipes | Heats 7-19 m2
    29,354.40 TL
    16,144.92 TL
  • %45 Discount - Type 10V Decorative Radiator 600x1476 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 600x1476 Anthracite ∆t50°C=950 Kcal/h | ∆t60°C= 1198 Kcal/h | 20 Pipes | Heats 7-19 m2
    36,693.00 TL
    20,181.15 TL
  • %45 Discount - Type 10V Decorative Radiator 600x1476 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 600x1476 Matte Black ∆t50°C=950 Kcal/h | ∆t60°C= 1198 Kcal/h | 20 Pipes | Heats 7-19 m2
    36,693.00 TL
    20,181.15 TL
  • %45 Discount - Type 10V Decorative Radiator 600x1476 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 600x1476 Wood Effect ∆t50°C=950 Kcal/h | ∆t60°C= 1198 Kcal/h | 20 Pipes | Heats 7-19 m2
    43,225.20 TL
    23,773.86 TL
