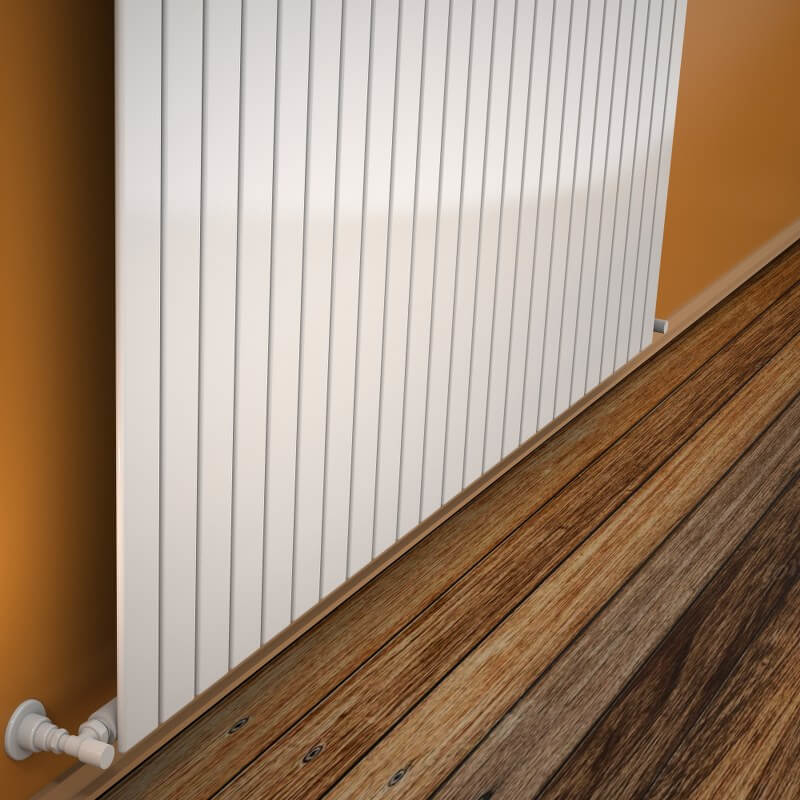

Type 10V Decorative Radiator 600x1772 White

Name: Type 10V Decorative Radiator 600x1772 White
SKU: 210V06001772B1PS
Price: 18873.36 TRY
Availability: InStock

Product Code : 210V06001772B1PS

Guarantee : 10 Year

TAXES Included

Price

34,315.20 TL

Discounted Price

18,873.36 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=600 mm

• Width=1772 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=24 Pieces

• Total Number of Profiles (Front + Back)=24+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=10,2 lt

• Weight=27,3 kg

• Boxed Weight=30,79 kg

• Box Size=182x65x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =1862 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =1862 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1141 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1438Kcal/h

• Heat Output 55/45-20° ?t=30°C=585 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1326 Watt

• Heat Output 90/70-20°?t=60°C=1671 Watt

• Heat Output 55/45-20°?t=30°C=679 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4525 Btu

• Heat Output 90/70-20°?t=60°C=5702 Btu

• Heat Output 55/45-20°?t=30°C=2317 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6652","36_0":"14887","34_0":"12142","35_0":"9397"},"variant_prices":{"37_0":15727.8,"36_0":16607.8,"34_0":16607.8,"35_0":16607.8},"variant_price_raws":{"37_0":15727.8,"36_0":16607.8,"34_0":16607.8,"35_0":16607.8},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"28596","36_0":"30196","34_0":"30196","35_0":"30196"},"variant_supplier_codes":{"37_0":"210V06001772B1PS","36_0":"210V06001772B1PM1","34_0":"210V06001772B1PM3","35_0":"210V06001772B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 600x1772 White ∆t50°C=1140 Kcal/h | ∆t60°C= 1437 Kcal/h | 24 Pipes | Heats 8-22 m2

34,315.20 TL

18,873.36 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6653","36_0":"14888","34_0":"12143","35_0":"9398"},"variant_prices":{"37_0":19659.75,"36_0":20539.75,"34_0":20539.75,"35_0":20539.75},"variant_price_raws":{"37_0":19659.75,"36_0":20539.75,"34_0":20539.75,"35_0":20539.75},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"35745","36_0":"37345","34_0":"37345","35_0":"37345"},"variant_supplier_codes":{"37_0":"210V06001772B2TS","36_0":"210V06001772B2TM1","34_0":"210V06001772B2TM3","35_0":"210V06001772B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 600x1772 Anthracite ∆t50°C=1140 Kcal/h | ∆t60°C= 1437 Kcal/h | 24 Pipes | Heats 8-22 m2

42,894.00 TL

23,591.70 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6654","36_0":"14889","34_0":"12144","35_0":"9399"},"variant_prices":{"37_0":19659.75,"36_0":20539.75,"34_0":20539.75,"35_0":20539.75},"variant_price_raws":{"37_0":19659.75,"36_0":20539.75,"34_0":20539.75,"35_0":20539.75},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"35745","36_0":"37345","34_0":"37345","35_0":"37345"},"variant_supplier_codes":{"37_0":"210V06001772B3MS","36_0":"210V06001772B3MM1","34_0":"210V06001772B3MM3","35_0":"210V06001772B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 600x1772 Matte Black ∆t50°C=1140 Kcal/h | ∆t60°C= 1437 Kcal/h | 24 Pipes | Heats 8-22 m2

42,894.00 TL

23,591.70 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6655","36_0":"14890","34_0":"12145","35_0":"9400"},"variant_prices":{"37_0":22860.2,"36_0":23740.2,"34_0":23740.2,"35_0":23740.2},"variant_price_raws":{"37_0":22860.2,"36_0":23740.2,"34_0":23740.2,"35_0":23740.2},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"41564","36_0":"43164","34_0":"43164","35_0":"43164"},"variant_supplier_codes":{"37_0":"210V06001772K6FS","36_0":"210V06001772K6FM1","34_0":"210V06001772K6FM3","35_0":"210V06001772K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 600x1772 Wood Effect ∆t50°C=1140 Kcal/h | ∆t60°C= 1437 Kcal/h | 24 Pipes | Heats 8-22 m2

49,876.80 TL

27,432.24 TL
