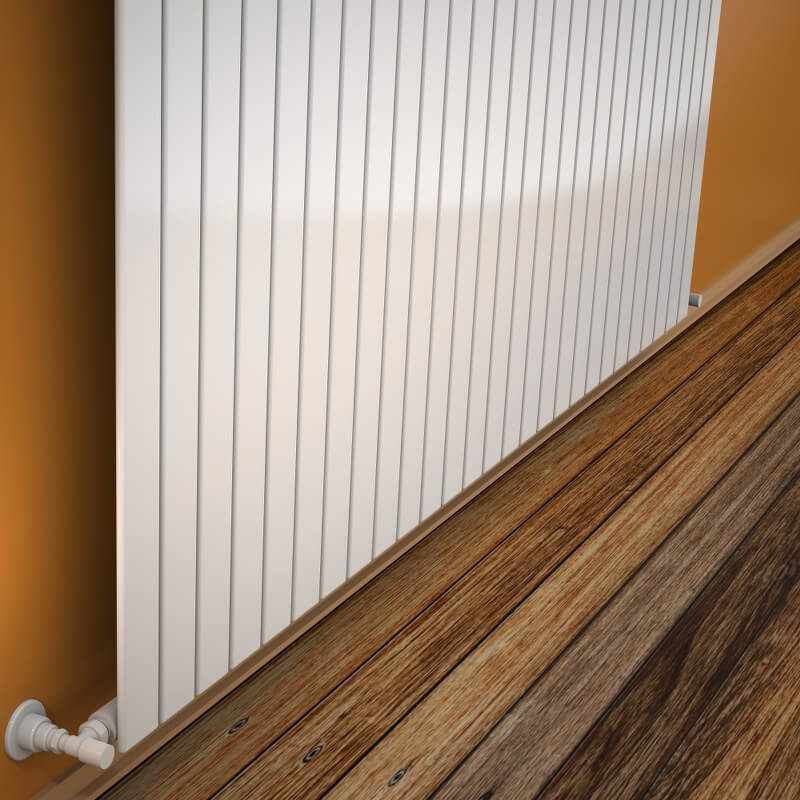

Type 10V Decorative Radiator 600x1994 White

Name: Type 10V Decorative Radiator 600x1994 White
SKU: 210V06001994B1PS
Price: 20874.48 TRY
Availability: InStock

Product Code : 210V06001994B1PS

Guarantee : 10 Year

TAXES Included

Price

37,953.60 TL

Discounted Price

20,874.48 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=600 mm

• Width=1994 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=27 Pieces

• Total Number of Profiles (Front + Back)=27+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,5 lt

• Weight=30,8 kg

• Boxed Weight=34,69 kg

• Box Size=204x65x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2084 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =2084 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1284 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1618Kcal/h

• Heat Output 55/45-20° ?t=30°C=658 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1492 Watt

• Heat Output 90/70-20°?t=60°C=1880 Watt

• Heat Output 55/45-20°?t=30°C=764 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5091 Btu

• Heat Output 90/70-20°?t=60°C=6415 Btu

• Heat Output 55/45-20°?t=30°C=2607 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
