%45 Discount

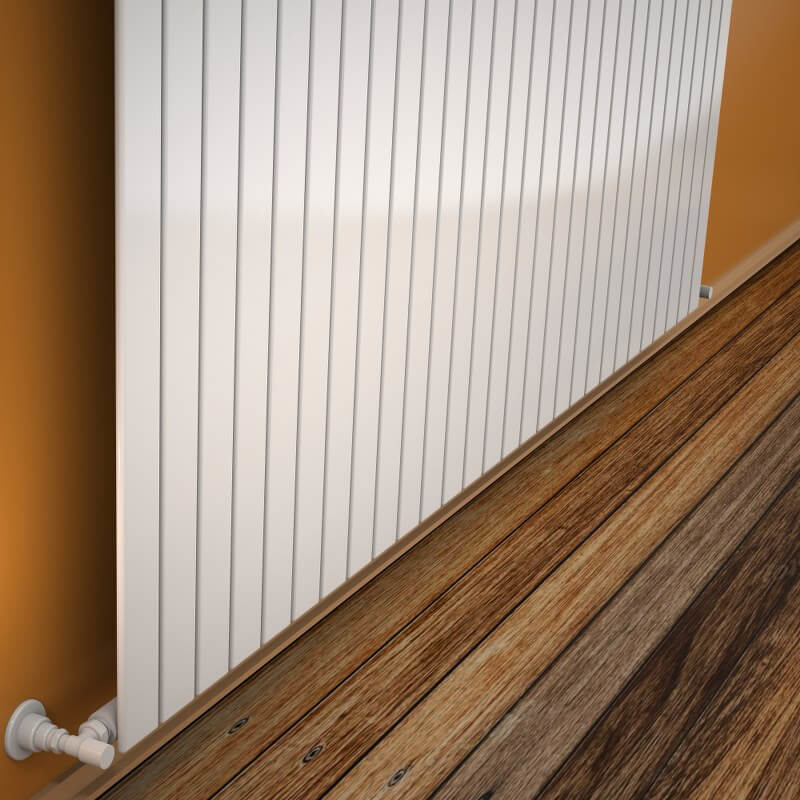

Type 10V Decorative Radiator 600x2068 White

Name: Type 10V Decorative Radiator 600x2068 White
SKU: 210V06002068B1PS
Price: 21556.92 TRY
Availability: InStock

Product Code : 210V06002068B1PS

Guarantee : 10 Year

TAXES Included

Price

39,194.40 TL

Discounted Price

21,556.92 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

20.11.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=600 mm

• Width=2068 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=28 Pieces

• Total Number of Profiles (Front + Back)=28+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,9 lt

• Weight=31,9 kg

• Boxed Weight=35,93 kg

• Box Size=211x65x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2158 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =2158 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1331 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1678Kcal/h

• Heat Output 55/45-20° ?t=30°C=682 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1547 Watt

• Heat Output 90/70-20°?t=60°C=1950 Watt

• Heat Output 55/45-20°?t=30°C=793 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5279 Btu

• Heat Output 90/70-20°?t=60°C=6652 Btu

• Heat Output 55/45-20°?t=30°C=2703 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
