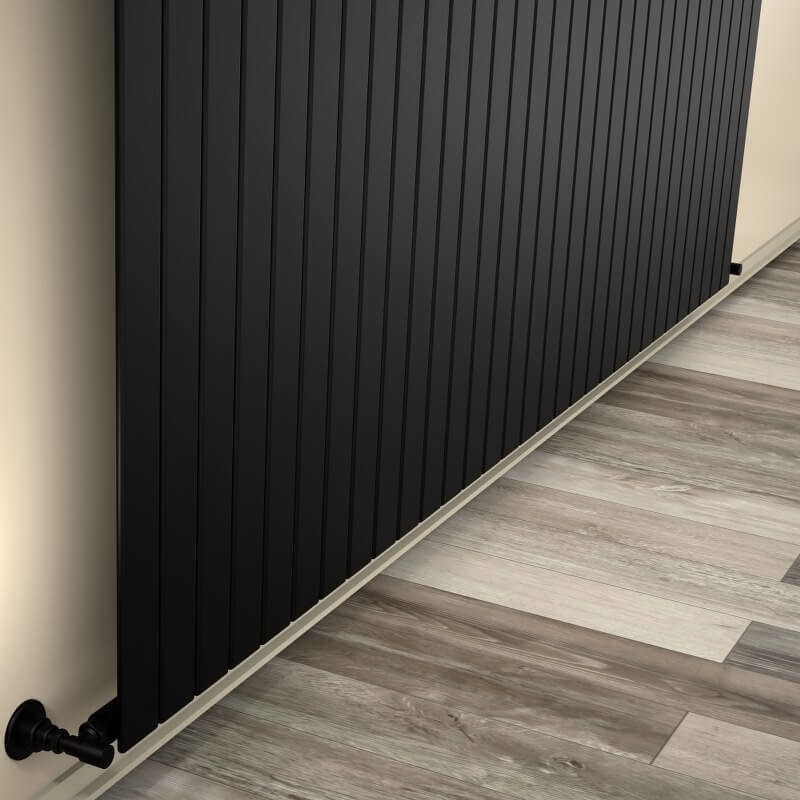

Type 10V Decorative Radiator 600x2290 Matte Black

Product Code : 210V06002290B3MS
Guarantee : 10 Year
TAXES Included
Price
:
53,541.00 TL
Discounted Price
:
29,447.55 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =600 mm

    • Width=2290 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=31 Pieces

    • Total Number of Profiles (Front + Back)=31+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=13,2 lt

    • Weight=35,3 kg

    • Boxed Weight    =39,73 kg

    • Box Size=233x65x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =2380 mm

    • Standard Entry2 =550 mm

    • Standard Entry Cross =2380 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1474 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1858Kcal/h

    • Heat Output 55/45-20° ?t=30°C=755 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1713 Watt

    • Heat Output 90/70-20°?t=60°C=2159 Watt

    • Heat Output 55/45-20°?t=30°C=878 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5845 Btu

    • Heat Output 90/70-20°?t=60°C=7365 Btu

    • Heat Output 55/45-20°?t=30°C=2993 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors

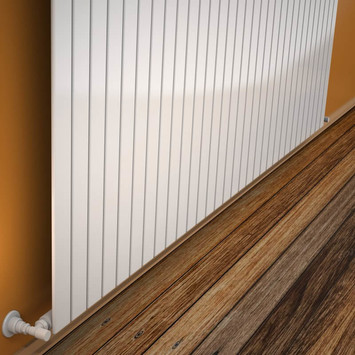

  • %45 Discount - Type 10V Decorative Radiator 600x2290 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 600x2290 White ∆t50°C=1473 Kcal/h | ∆t60°C= 1857 Kcal/h | 31 Pipes | Heats 10-29 m2
    42,832.80 TL
    23,558.04 TL

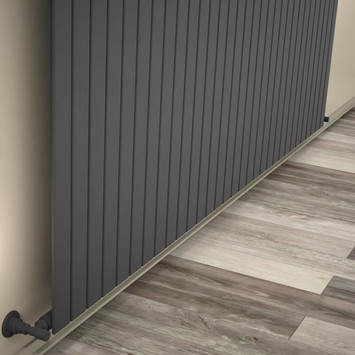

  • %45 Discount - Type 10V Decorative Radiator 600x2290 Anthracite
