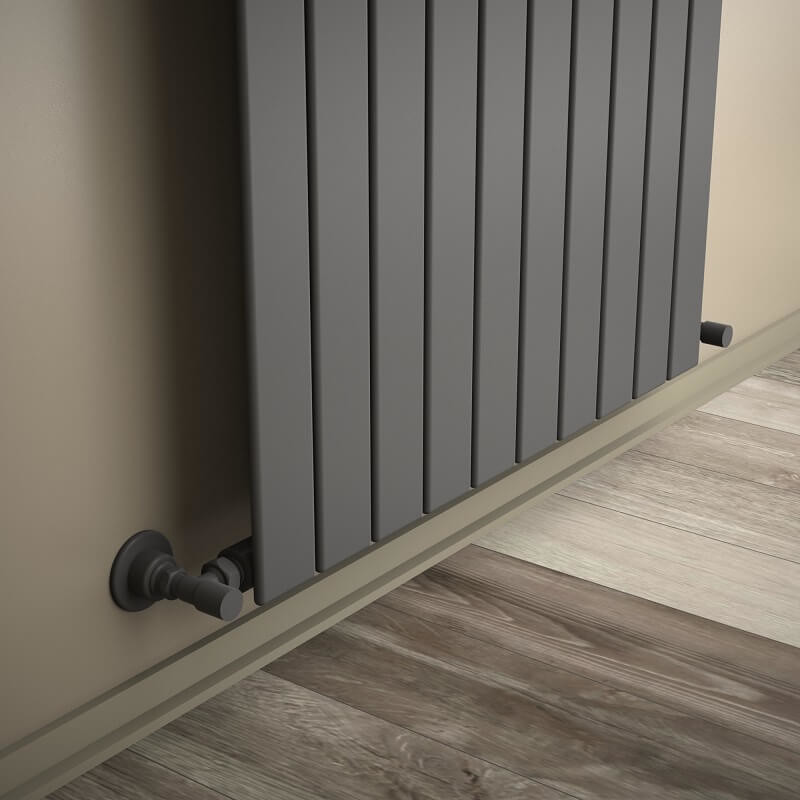

Type 10V Decorative Radiator 600x736 Anthracite

Product Code : 210V06000736B2TS
Guarantee : 10 Year
TAXES Included
Price
:
21,396.00 TL
Discounted Price
:
11,767.80 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
20.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =600 mm

    • Width=736 mm

    • Color/Coating=Anthracite

    • Number of Sections=10 Pieces

    • Total Number of Profiles (Front + Back)=10+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=4,2 lt

    • Weight=11,4 kg

    • Boxed Weight    =13,03 kg

    • Box Size=78x65x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =826 mm

    • Standard Entry2 =550 mm

    • Standard Entry Cross =826 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 475 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=599Kcal/h

    • Heat Output 55/45-20° ?t=30°C=244 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=552 Watt

    • Heat Output 90/70-20°?t=60°C=696 Watt

    • Heat Output 55/45-20°?t=30°C=283 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=1884 Btu

    • Heat Output 90/70-20°?t=60°C=2374 Btu

    • Heat Output 55/45-20°?t=30°C=965 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors

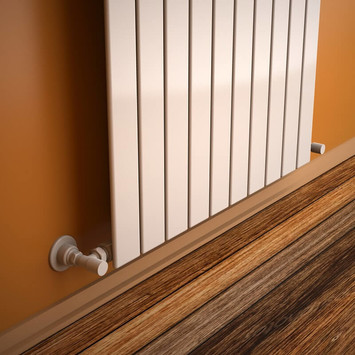

  • %45 Discount - Type 10V Decorative Radiator 600x736 White
