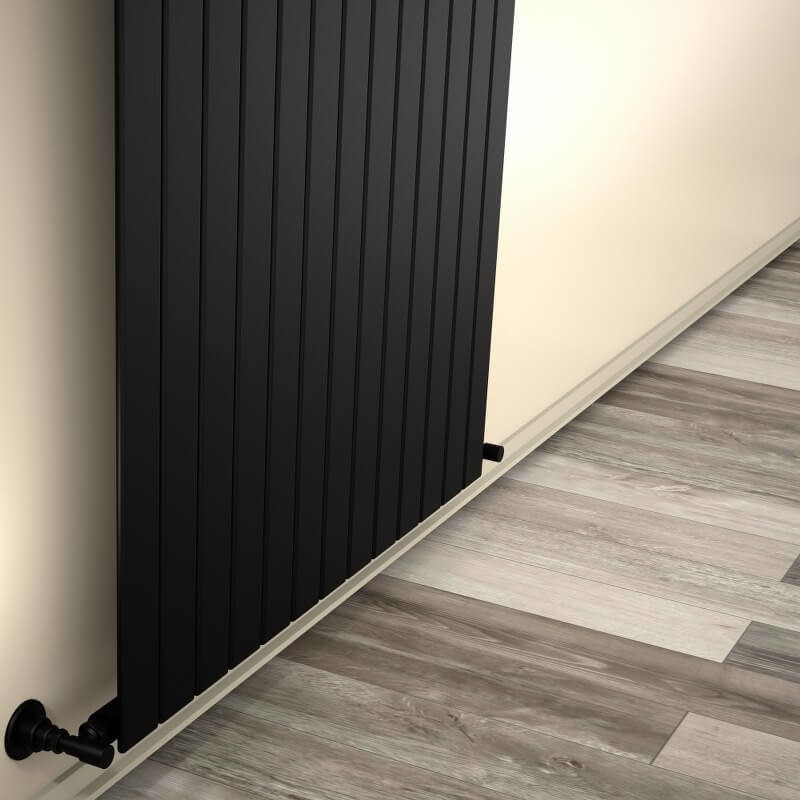

TECHNICAL INFORMATION
• Model = 10V
• Material =Steel
• Height=600 mm
• Width=958 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=13 Pieces
• Total Number of Profiles (Front + Back)=13+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=5,5 lt
• Weight=14,9 kg
• Boxed Weight=16,93 kg
• Box Size=100x65x8,6 cmTAPPING OPTIONS
• Standard Entry1 =1048 mm
• Standard Entry2 =550 mm
• Standard Entry Cross =1048 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 618 Kcal/h
• Heat Output 90/70-20° ?t=60°C=779Kcal/h
• Heat Output 55/45-20° ?t=30°C=317 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=718 Watt
• Heat Output 90/70-20°?t=60°C=905 Watt
• Heat Output 55/45-20°?t=30°C=368 Watt
Btu
• Heat Output 75/65-20°?t=50°C=2450 Btu
• Heat Output 90/70-20°?t=60°C=3087 Btu
• Heat Output 55/45-20°?t=30°C=1255 Btu
Warranty:10 YearsDelivery Information:21 Day
