TECHNICAL INFORMATION

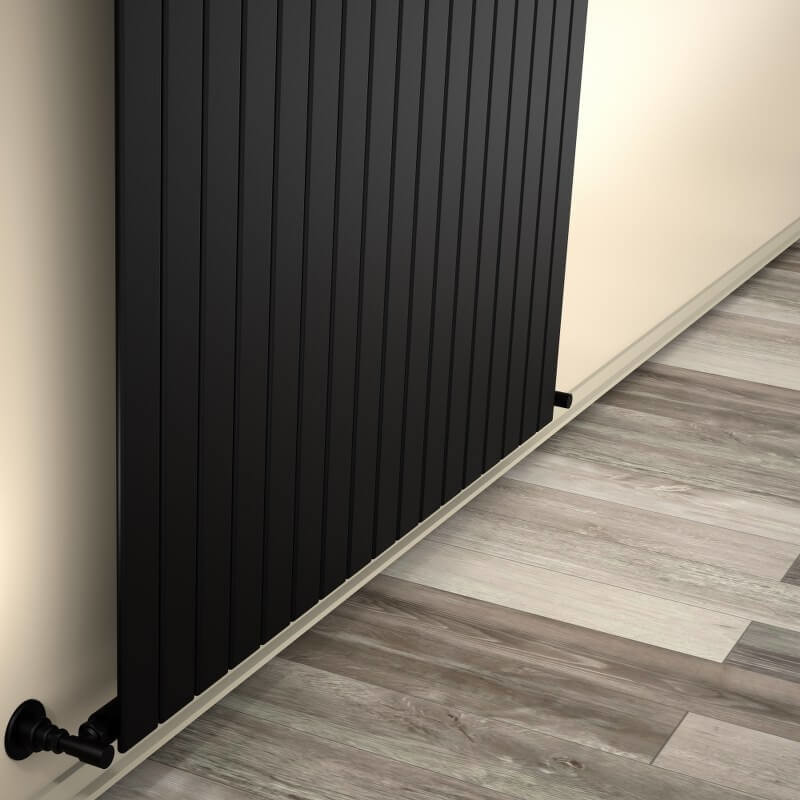

• Model = 10V
• Material =Steel
• Height=900 mm
• Width=1254 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=17 Pieces
• Total Number of Profiles (Front + Back)=17+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=9,8 lt
• Weight=27,4 kg
• Boxed Weight=31,09 kg
• Box Size=130x95x8,6 cmTAPPING OPTIONS
• Standard Entry1 =1344 mm
• Standard Entry2 =850 mm
• Standard Entry Cross =1344 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1171 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1476Kcal/h
• Heat Output 55/45-20° ?t=30°C=600 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1361 Watt
• Heat Output 90/70-20°?t=60°C=1715 Watt
• Heat Output 55/45-20°?t=30°C=697 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4644 Btu
• Heat Output 90/70-20°?t=60°C=5852 Btu
• Heat Output 55/45-20°?t=30°C=2378 Btu
Warranty:10 YearsDelivery Information:21 Day
