TECHNICAL INFORMATION

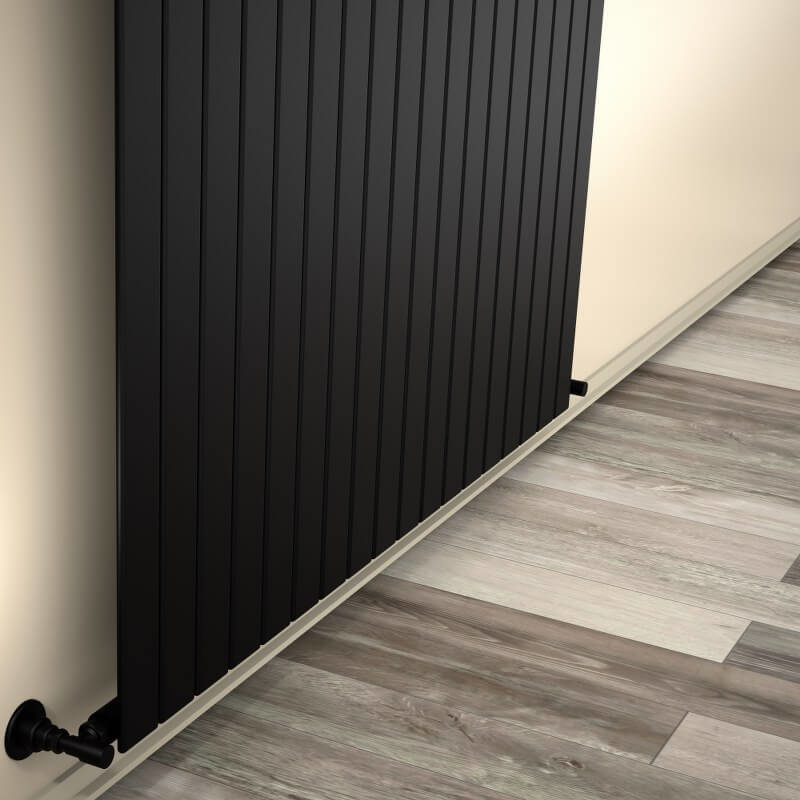

• Model = 10V
• Material =Steel
• Height=900 mm
• Width=1328 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=18 Pieces
• Total Number of Profiles (Front + Back)=18+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=10,3 lt
• Weight=29 kg
• Boxed Weight=32,89 kg
• Box Size=137x95x8,6 cmTAPPING OPTIONS
• Standard Entry1 =1418 mm
• Standard Entry2 =850 mm
• Standard Entry Cross =1418 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1240 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1563Kcal/h
• Heat Output 55/45-20° ?t=30°C=635 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1441 Watt
• Heat Output 90/70-20°?t=60°C=1816 Watt
• Heat Output 55/45-20°?t=30°C=738 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4917 Btu
• Heat Output 90/70-20°?t=60°C=6196 Btu
• Heat Output 55/45-20°?t=30°C=2518 Btu
Warranty:10 YearsDelivery Information:21 Day
