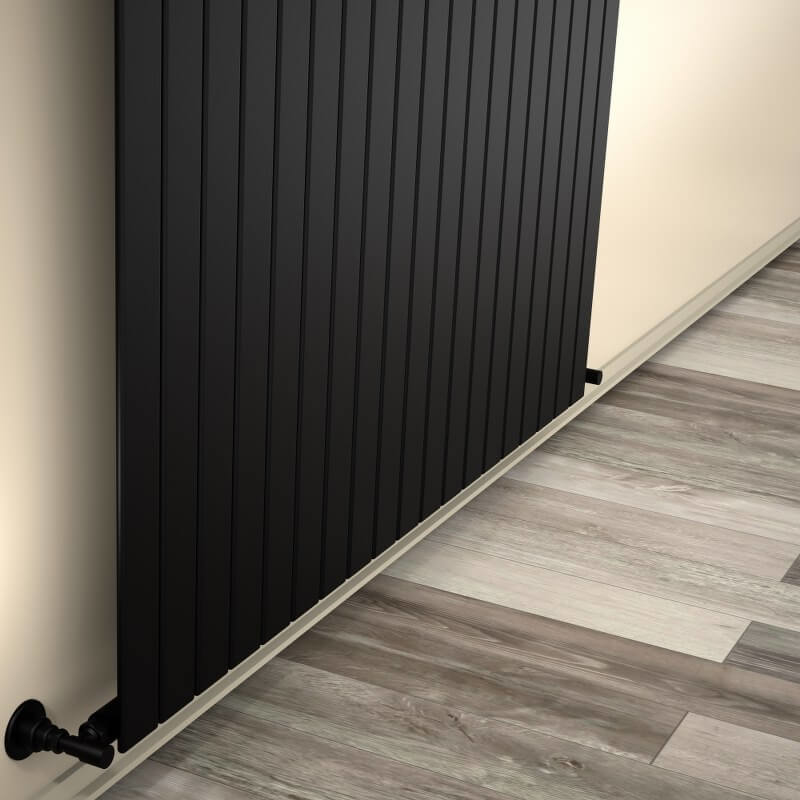

Type 10V Decorative Radiator 900x1402 Matte Black

Product Code : 210V09001402B3MS
Guarantee : 10 Year
TAXES Included
Price
:
47,338.50 TL
Discounted Price
:
26,036.18 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =900 mm

    • Width=1402 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=19 Pieces

    • Total Number of Profiles (Front + Back)=19+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=10,9 lt

    • Weight=30,6 kg

    • Boxed Weight    =34,69 kg

    • Box Size=145x95x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1492 mm

    • Standard Entry2 =850 mm

    • Standard Entry Cross =1492 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1309 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1650Kcal/h

    • Heat Output 55/45-20° ?t=30°C=671 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1521 Watt

    • Heat Output 90/70-20°?t=60°C=1917 Watt

    • Heat Output 55/45-20°?t=30°C=779 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5190 Btu

    • Heat Output 90/70-20°?t=60°C=6540 Btu

    • Heat Output 55/45-20°?t=30°C=2658 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors

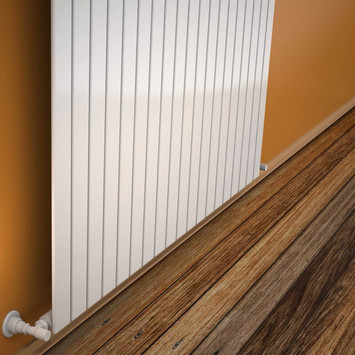

  • %45 Discount - Type 10V Decorative Radiator 900x1402 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 900x1402 White ∆t50°C=1308 Kcal/h | ∆t60°C= 1649 Kcal/h | 19 Pipes | Heats 9-26 m2
    37,870.80 TL
    20,828.94 TL

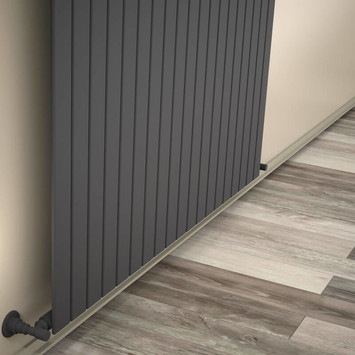

  • %45 Discount - Type 10V Decorative Radiator 900x1402 Anthracite
