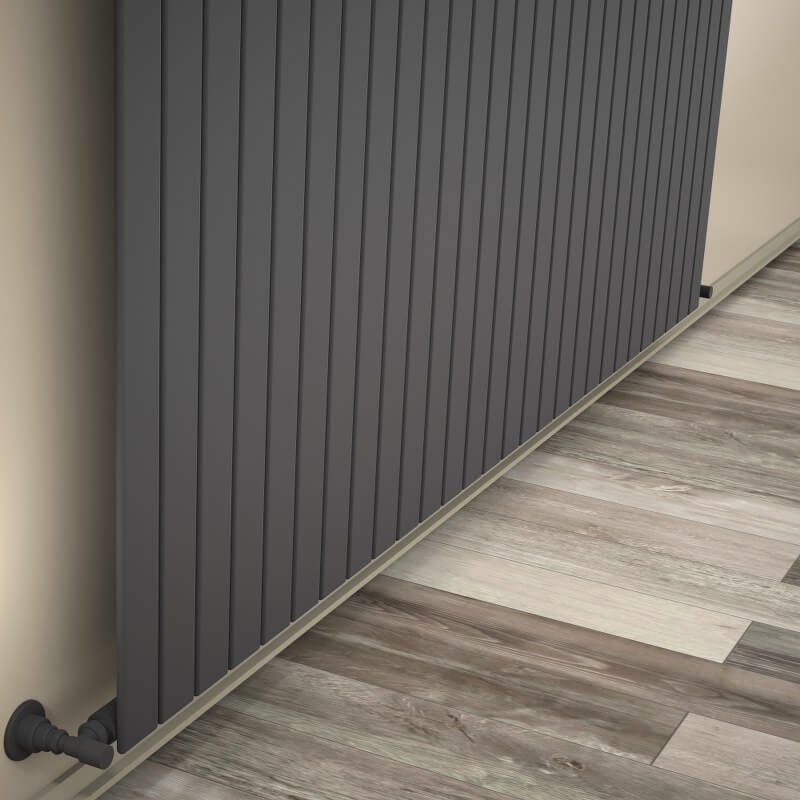

Type 10V Decorative Radiator 900x2068 Anthracite

Product Code : 210V09002068B2TS
Guarantee : 10 Year
TAXES Included
Price
:
66,874.50 TL
Discounted Price
:
36,780.98 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =900 mm

    • Width=2068 mm

    • Color/Coating=Anthracite

    • Number of Sections=28 Pieces

    • Total Number of Profiles (Front + Back)=28+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=16,1 lt

    • Weight=45 kg

    • Boxed Weight    =50,89 kg

    • Box Size=211x95x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =2158 mm

    • Standard Entry2 =850 mm

    • Standard Entry Cross =2158 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1929 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=2431Kcal/h

    • Heat Output 55/45-20° ?t=30°C=988 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=2242 Watt

    • Heat Output 90/70-20°?t=60°C=2825 Watt

    • Heat Output 55/45-20°?t=30°C=1148 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=7650 Btu

    • Heat Output 90/70-20°?t=60°C=9639 Btu

    • Heat Output 55/45-20°?t=30°C=3917 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors

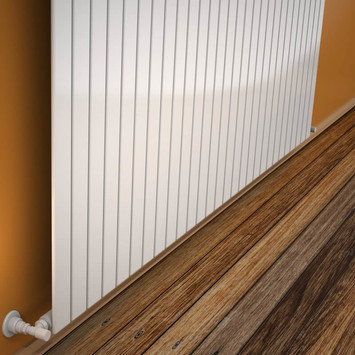

  • %45 Discount - Type 10V Decorative Radiator 900x2068 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 900x2068 White ∆t50°C=1928 Kcal/h | ∆t60°C= 2430 Kcal/h | 28 Pipes | Heats 13-38 m2
    53,499.60 TL
    29,424.78 TL

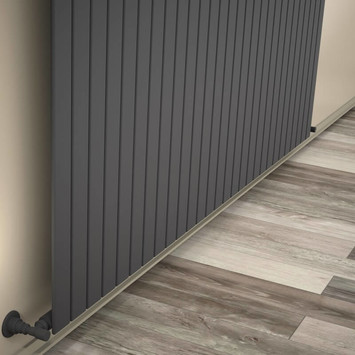

  • %45 Discount - Type 10V Decorative Radiator 900x2068 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 900x2068 Anthracite ∆t50°C=1928 Kcal/h | ∆t60°C= 2430 Kcal/h | 28 Pipes | Heats 13-38 m2
    66,874.50 TL
    36,780.98 TL
  • %45 Discount - Type 10V Decorative Radiator 900x2068 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 900x2068 Matte Black ∆t50°C=1928 Kcal/h | ∆t60°C= 2430 Kcal/h | 28 Pipes | Heats 13-38 m2
    66,874.50 TL
    36,780.98 TL
  • %45 Discount - Type 10V Decorative Radiator 900x2068 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 900x2068 Wood Effect ∆t50°C=1928 Kcal/h | ∆t60°C= 2430 Kcal/h | 28 Pipes | Heats 13-38 m2
    76,657.20 TL
    42,161.46 TL
