TECHNICAL INFORMATION

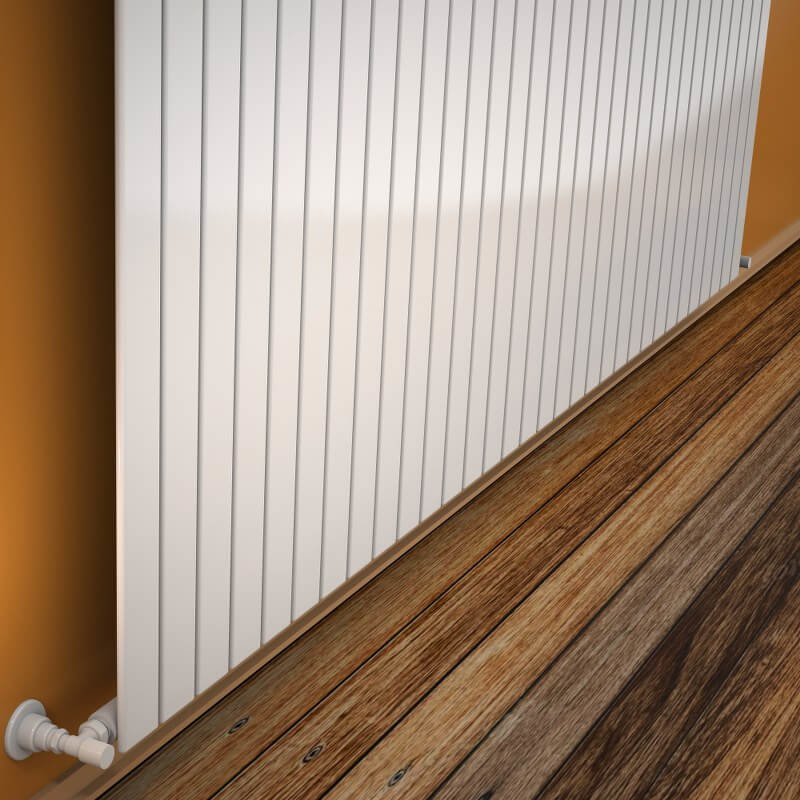

• Model = 10V
• Material =Steel
• Height=900 mm
• Width=2364 mm
• Color/Coating=Bright White RAL9016
• Number of Sections=32 Pieces
• Total Number of Profiles (Front + Back)=32+0 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=48 mm
• Wall to Center of Inlet=40 mm
• Wall Projection Distance=69 mm
• Radiator Thread Dimension=1/2"
• Water Volume=18,4 lt
• Weight=51,4 kg
• Boxed Weight=58,09 kg
• Box Size=241x95x8,6 cmTAPPING OPTIONS
• Standard Entry1 =2454 mm
• Standard Entry2 =850 mm
• Standard Entry Cross =2454 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 2204 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2778Kcal/h
• Heat Output 55/45-20° ?t=30°C=1129 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2562 Watt
• Heat Output 90/70-20°?t=60°C=3229 Watt
• Heat Output 55/45-20°?t=30°C=1312 Watt
Btu
• Heat Output 75/65-20°?t=50°C=8742 Btu
• Heat Output 90/70-20°?t=60°C=11015 Btu
• Heat Output 55/45-20°?t=30°C=4476 Btu
Warranty:10 YearsDelivery Information:21 Day
