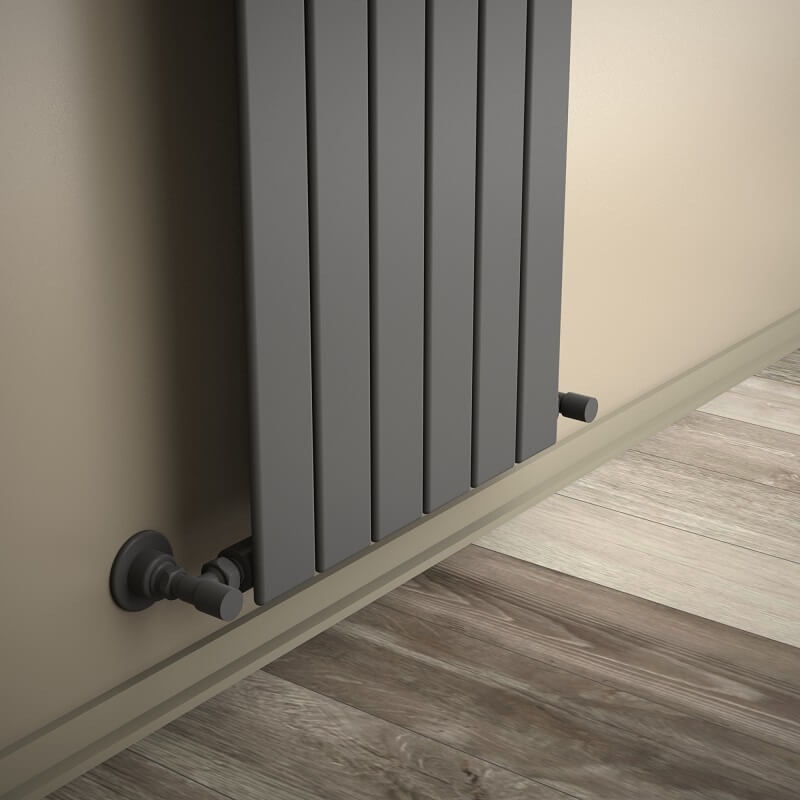

Type 10V Decorative Radiator 900x440 Anthracite

Name: Type 10V Decorative Radiator 900x440 Anthracite
SKU: 210V09000440B2TS
Price: 10517.10 TRY
Availability: InStock

Product Code : 210V09000440B2TS

Guarantee : 10 Year

TAXES Included

Price

19,122.00 TL

Discounted Price

10,517.10 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=900 mm

• Width=440 mm

• Color/Coating=Anthracite

• Number of Sections=6 Pieces

• Total Number of Profiles (Front + Back)=6+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=3,4 lt

• Weight=9,7 kg

• Boxed Weight=11,19 kg

• Box Size=48x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =530 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =530 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 413 Kcal/h

• Heat Output 90/70-20° ?t=60°C=521Kcal/h

• Heat Output 55/45-20° ?t=30°C=212 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=480 Watt

• Heat Output 90/70-20°?t=60°C=605 Watt

• Heat Output 55/45-20°?t=30°C=246 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1638 Btu

• Heat Output 90/70-20°?t=60°C=2064 Btu

• Heat Output 55/45-20°?t=30°C=839 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
