TECHNICAL INFORMATION

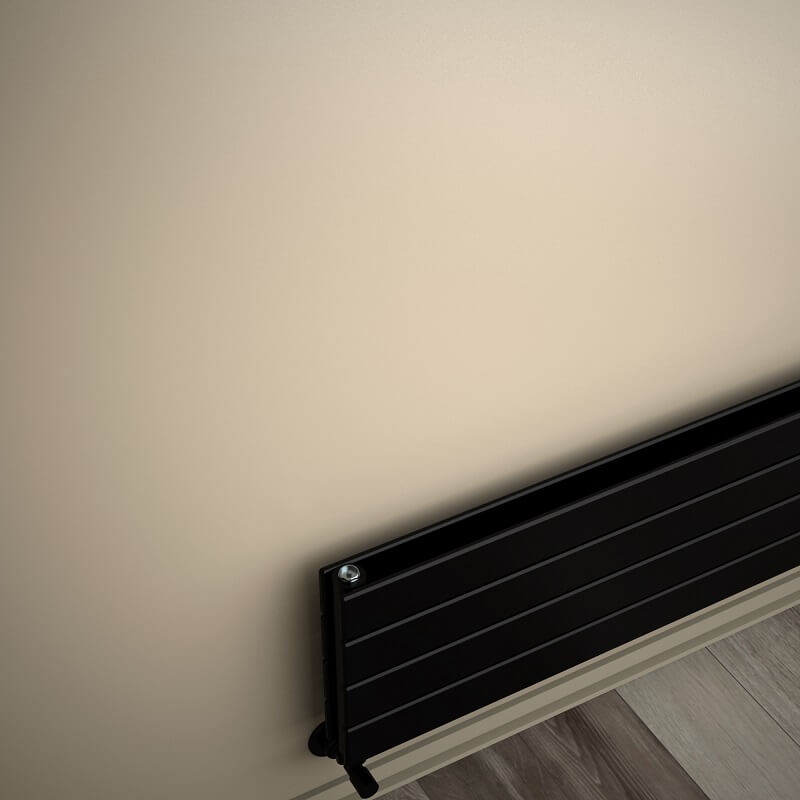

• Model = 20H
• Material =Steel
• Height=292 mm
• Width=1300 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+4 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=5,7 lt
• Weight=17,1 kg
• Boxed Weight=18,54 kg
• Box Size=35x136x9,6 cmTAPPING OPTIONS
• Standard Entry=1250 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1390mm
• Cross Up-Right / Down-Left=1390mm
• Cross Up-Left / Down-Right=1390mm
• Side - Right=250mm
• Side - Left=250mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 654 Kcal/h
• Heat Output 90/70-20° ?t=60°C=825Kcal/h
• Heat Output 55/45-20° ?t=30°C=335Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=760 Watt
• Heat Output 90/70-20°?t=60°C=958 Watt
• Heat Output 55/45-20°?t=30°C=390 Watt
Btu
• Heat Output 75/65-20°?t=50°C=2594 Btu
• Heat Output 90/70-20°?t=60°C=3269 Btu
• Heat Output 55/45-20°?t=30°C=1329 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

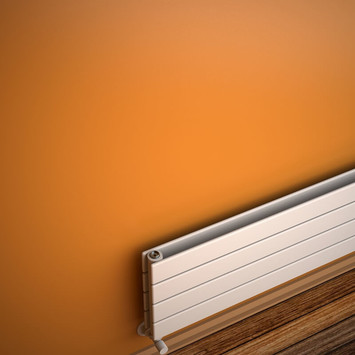

%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 292x1300 White ∆t50°C=654 Kcal/h | ∆t60°C= 824 Kcal/h | 4 Pipes | Heats 5-13 m2
-

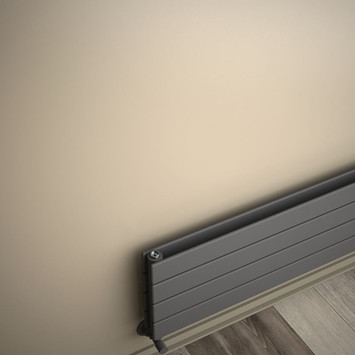

%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 292x1300 Anthracite ∆t50°C=654 Kcal/h | ∆t60°C= 824 Kcal/h | 4 Pipes | Heats 5-13 m2
-
